Raw materials
Galvanized coils, Pre-painted coils, Aluminum coils
Material thickness range
0.2-1mm
Forming speed
10-15m/min
Rollers
15 rows(according to drawings)
Material of rollers
45# steel with chromed
Shaft material and diameter
76mm, material is 40Cr
Material of body
400H steel
Wall panel
20mm Q195 steel(all with electrostatic spraying)
Controlling system
PLC
Main power
5.5KW
Material of cutting blade
Cr12 mould steel with quenched treatment
Voltage
380V/3Phase/50Hz
Total weight
about 4 tons

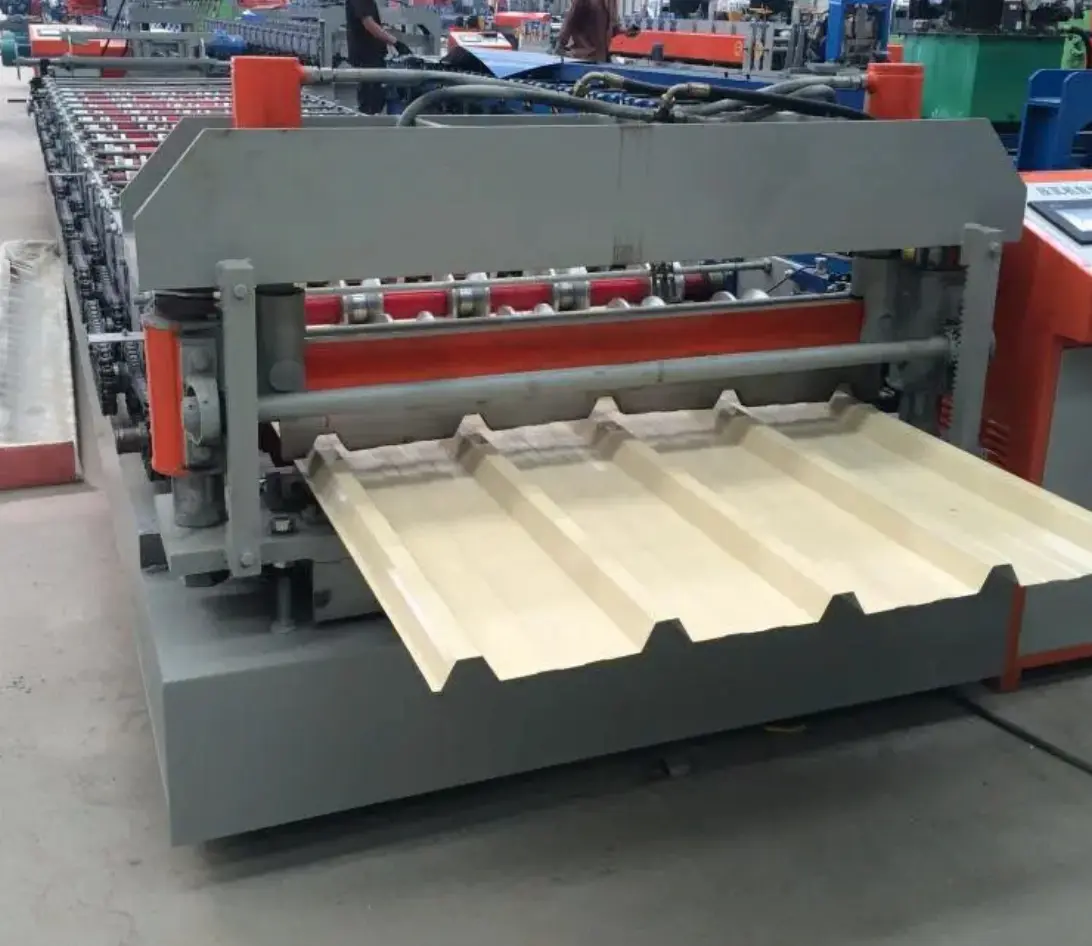

A wall panel roll forming machine is designed to produce metal wall panels through a continuous process that shapes and cuts metal sheets into specific profiles. These machines are essential in the construction and building materials industries, providing durable and aesthetically pleasing wall solutions. Here are some key features and benefits of wall panel roll forming machines:
Key Features
High Precision: Equipped with advanced technology to ensure accurate dimensions and profile consistency, reducing material waste.
Versatility: Capable of producing various wall panel profiles, including insulated panels, corrugated panels, and flat panels, catering to different architectural styles and requirements.
Automation: Many models offer automated controls for speed and precision, enhancing productivity while minimizing labor costs.
Durability: Built with robust materials and components, these machines are designed for long-term use in industrial environments.
Custom Design Capability: Manufacturers can customize the machine setup to produce unique panel profiles based on client specifications.
Benefits
Cost-Effective Production: Reduces labor and material costs by streamlining the manufacturing process.
Fast Production Speeds: Capable of producing large quantities of panels quickly, meeting the demands of large construction projects.
Energy Efficiency: Some machines are designed to optimize energy consumption during operation, contributing to sustainability.
Quality Control: Integrated quality assurance systems help maintain high standards for every panel produced, ensuring structural integrity and aesthetic appeal.
Applications
Commercial Buildings: Used for constructing exterior walls in commercial and industrial buildings.
Residential Construction: Ideal for modern homes looking for durable and stylish wall solutions.
Agricultural Buildings: Suitable for barns and storage facilities, providing weather-resistant and strong wall options.
Wall panel roll forming machines are an excellent investment for manufacturers looking to enhance their production capabilities and meet the growing demand for high-quality wall panels in various construction sectors.
