Voltage
380V/50HZ/3Phase (as customer`s request)
Roller fixer
Middle plate welded
Frame
350H steel welded
Middle plate thickness
20mm/18mm/16mm/14mm/12mm
Drive mode
Chain Drice//Gear Drive
Material of rollers
45# steel, surface hard chromium plating.
Material of shafts
45# steel
Diameter of shafts
Φ80mm(depend on different design)
Number of rollers:
29 rollers
Main power
5.5kw
Cutting&Hydraulic
Double guide pillar
Hydraulic motor power
3kw,4kw
Hydraulic Pressure
10-12MPa

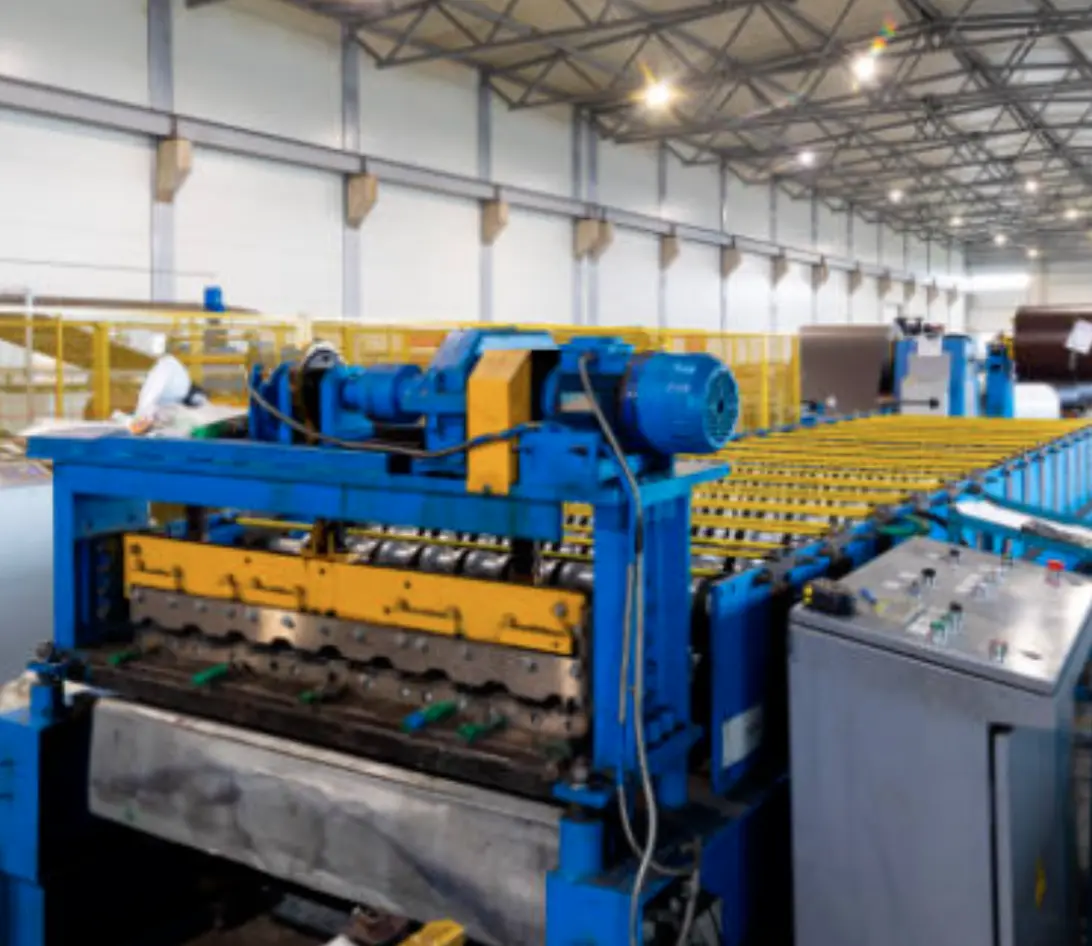

A roofing and cladding roll forming machine is a specialized piece of equipment designed to create metal sheets used in roofing and exterior cladding applications. These machines are essential for manufacturing high-quality, durable metal profiles that provide protection and aesthetic appeal to buildings.
Key Features:
Customizable Profiles: Capable of producing various profiles such as corrugated, trapezoidal, and standing seam panels tailored to specific project requirements.
High Precision: Utilizes advanced technology to ensure precise dimensions and consistent quality in every panel produced.
Speed and Efficiency: Designed for high-speed production, allowing manufacturers to meet tight deadlines without compromising quality.
Durable Construction: Built with robust materials to withstand the rigors of continuous operation, ensuring longevity and reliability.
Automation Options: Many machines offer automated features such as length measurement and cutting, which reduce labor costs and enhance productivity.
Applications:
Roofing Systems: Used for both residential and commercial roofing applications, providing weather resistance and energy efficiency.
Cladding Systems: Ideal for exterior walls, offering protection from the elements while enhancing the building's aesthetic appeal.
Benefits:
Cost-Effective Production: Reduces material waste and labor costs through efficient manufacturing processes.
Versatility: Suitable for various metal materials, including steel, aluminum, and zinc, making it adaptable to different construction needs.
Improved Aesthetics: Enhances the visual appeal of buildings with a range of available finishes and colors.
Investing in a roofing and cladding roll forming machine enables manufacturers to produce high-quality metal components efficiently, supporting the growing demand for durable and attractive building materials in the construction industry.
