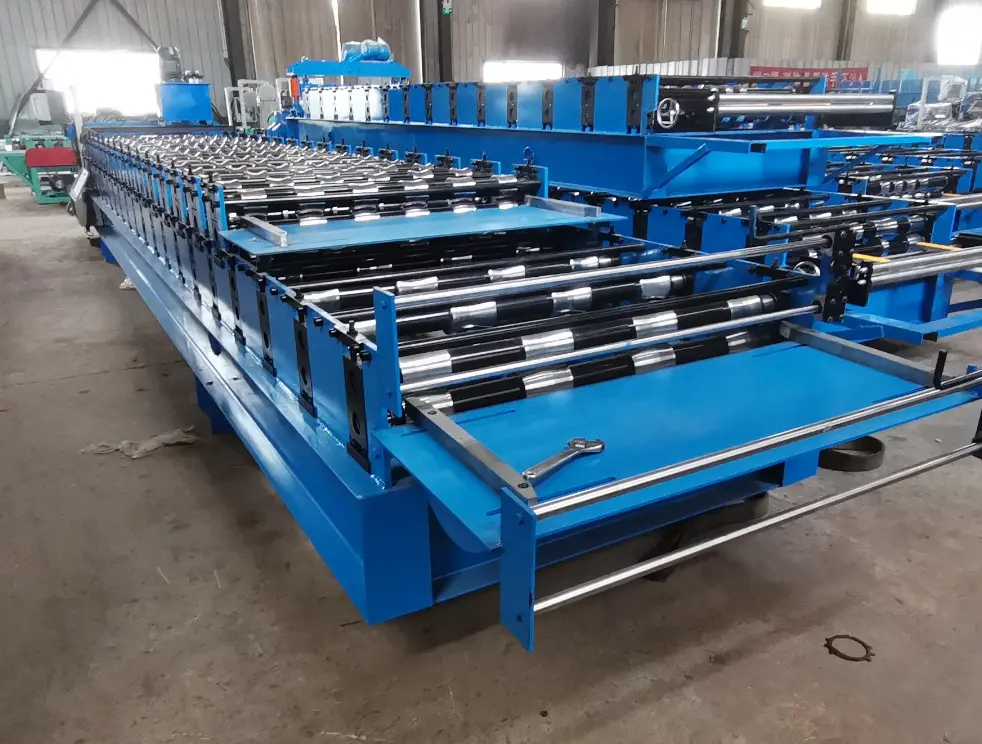

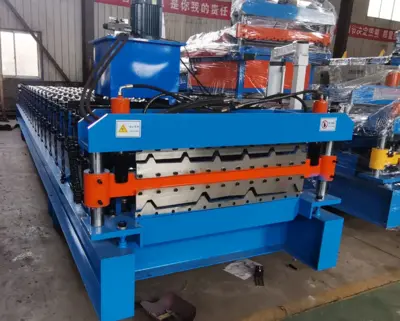

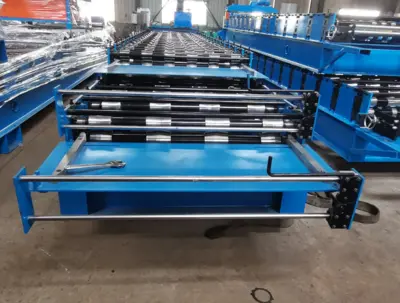

Metal Roof Roll Forming Machine in Texas, USA

1
Coil Width
914mm/1000mm/1200mm /1250mm or according to your request

2
Diameter of shaft
70mm

3
Forming Speed
8-12meters/min

4
Middle plate
16mm

5
Material of shaft
45#steel with tempering

6
forming thickness
0.2mm-0.6mm

7
material of rollers
45#steel

8
Cutting type
hydraulic -cutting

9
Main power
4kw/5.5kw /7.5kw/11kw according to machine

10
Main frame
350H steel

11
Control system
PLC

12
Brand of electrical parts
Delta

13
Manual decoiler
5 tons

14
Power
3 Phase,380 Voltage,50Hz

15
Dimensions(L*W*H)
About 6.5*1.2*1.2M

16
Weight
about 3 tons
