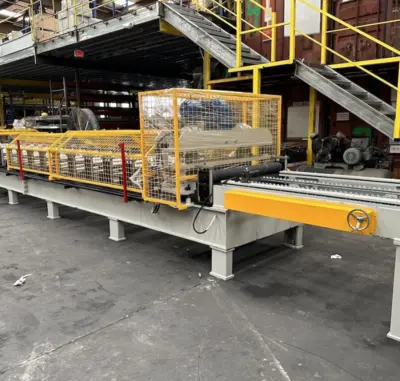

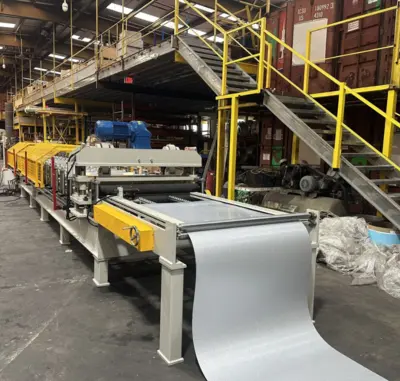

R Panel Metal Roof Roll Forming Machine USA

The R Panel Metal Roof Roll Forming Machine is a highly efficient industrial equipment designed to produce R panels, which are commonly used for commercial, agricultural, and residential roofing applications in the United States. These machines streamline the production process, offering precision, durability, and versatility. The R panel profile is known for its strength, weather resistance, and ease of installation, making it a preferred choice for roofing and siding projects.
This machine is engineered to handle a variety of materials such as galvanized steel, aluminum, and coated metals, ensuring a wide range of applications. Its advanced features allow for continuous, high-speed production with minimal manual intervention.
Key Features
High Efficiency: The machine ensures consistent production with minimal downtime.

Customizable Profiles: Adjustable rollers for different sizes and dimensions of R panels.

Durability: Heavy-duty components and robust design for long-term use.

Energy Efficiency: Optimized power usage with high-performance motors.

Precision: Ensures uniform profile dimensions for seamless installation.
Applications
Commercial Buildings: Warehouses, factories, and offices.

Residential Projects: Roofs for homes and outbuildings.

Agricultural Uses: Barns, silos, and storage sheds.
Question and Answer Section
Q1: What is the R panel, and why is it popular in the USA?
A: The R panel is a type of metal roofing and siding panel characterized by its high-strength trapezoidal design. Its popularity stems from its affordability, durability, and ability to withstand harsh weather conditions.
Q2: What is the lead time for producing R panels with this machine?
A: The production speed is approximately 15-20 meters per minute, allowing rapid fulfillment of large-scale projects.
Q3: Can this machine handle custom panel dimensions?
A: Yes, the machine includes adjustable roller stations and programmable controls to create custom panel sizes and profiles.
Q4: How do I maintain the machine for optimal performance?
A: Regular maintenance includes cleaning the rollers, checking hydraulic oil levels, tightening bolts, and inspecting the cutting blades for wear.
Q5: What is the typical lifespan of an R Panel Metal Roof Roll Forming Machine?
A: With proper maintenance, the machine can last over 15 years, depending on usage and material quality.
Q6: Is technical support available in the USA?
A: Yes, most manufacturers and suppliers provide technical support, installation guidance, and after-sales service.
Q7: What is the power requirement for the machine?
A: The machine typically requires a 380V/50Hz three-phase power supply, but configurations for 220V/60Hz are available for the US market.
Q8: What is the cost range of this machine in the USA?
A: The price can range from $30,000 to $120,000, depending on features, automation levels, and optional extras.

Material Compatibility:Galvanized Steel: 22-26 gaugeAluminum: 0.5mm–1.2mmCoated Metals: 0.5mm–0.8mm
Galvanized Steel: 22-26 gauge
Aluminum: 0.5mm–1.2mm
Coated Metals: 0.5mm–0.8mm

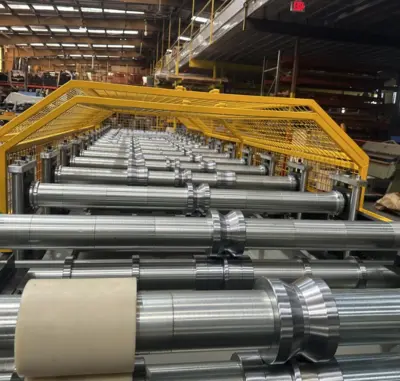

Roller Materials:High-grade steel with chrome coating to prevent corrosion and ensure longevity.
High-grade steel with chrome coating to prevent corrosion and ensure longevity.
Frame Size:300mm x 100mm H-beam for durability and stability during operation.
300mm x 100mm H-beam for durability and stability during operation.
Motor:Main Motor Power: 7.5 kWHydraulic Motor Power: 4 kW
Main Motor Power: 7.5 kW
Hydraulic Motor Power: 4 kW

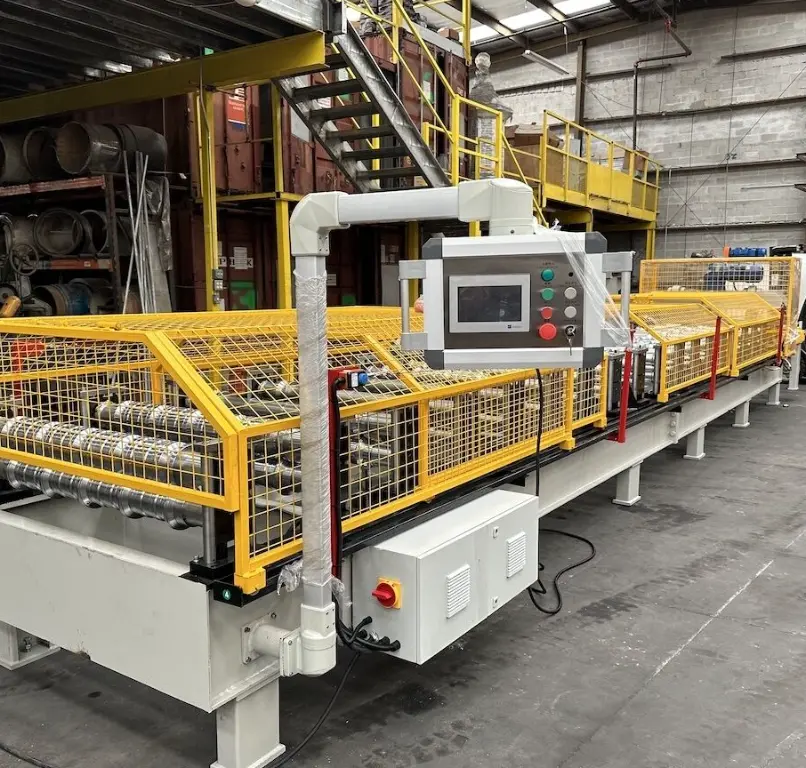

PLC Control System:User-friendly touchscreen interface with programmable settings for precise operation.
User-friendly touchscreen interface with programmable settings for precise operation.
Production Speed:Up to 15-20 meters per minute (can vary based on material and profile).
Up to 15-20 meters per minute (can vary based on material and profile).
Cutting Mechanism:Hydraulic cutting system with high-precision blades.Pre-cut and post-cut options available.
Hydraulic cutting system with high-precision blades.
Pre-cut and post-cut options available.
Safety Features:Emergency stop button.Safety guards and enclosures for moving parts.
Emergency stop button.
Safety guards and enclosures for moving parts.
Machine Dimensions:Length: 8 metersWidth: 1.5 metersHeight: 1.4 meters
Length: 8 meters
Width: 1.5 meters
Height: 1.4 meters
Extras:Automatic stacker for efficient handling.Uncoiler and recoiler options for streamlined material feeding.
Automatic stacker for efficient handling.
Uncoiler and recoiler options for streamlined material feeding.
