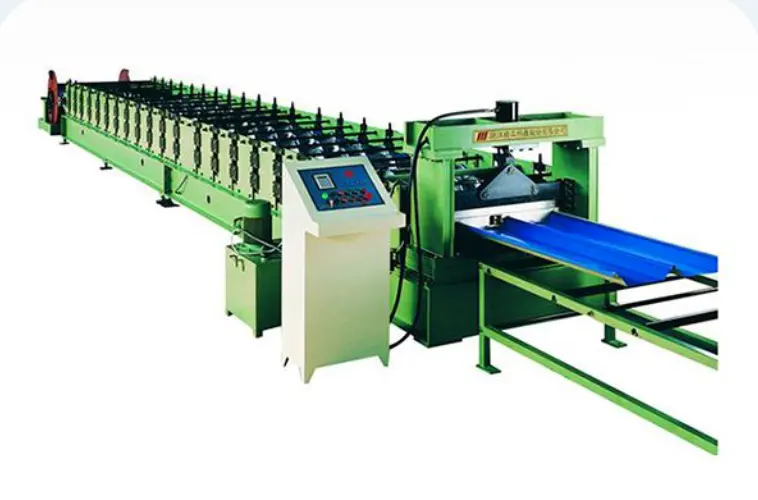

Roofing & Wall Panel Roll Forming Machine in Shaoxing City, China

This type of panel roll forming machine line includes various kinds of roof panel forming machines, wall panel forming machines, and lining plate forming machines etc. It has received 3 patents of utility model and is widely used in steel construction enclosure. We can provide roll forming equipment in various profile shapes and configurations to satisfy your specific requirements.
Main Components
Jinggong panel roll forming machine comprises of a feeding machine, sheet guiding system, forming system, cutting equipment, product supporter, hydraulic system, and electric control system.
Technical Specifications for Roll Forming Machine (Roofing & Walls)
Item
Parameter
Remark

Suitable materials
Type
Color plate, aluminium plate, galvanized plate
Depending on customer' requirement

Thickness
0.4-0.8 or 0.8-1.2 mm

Yield strength
≤400 Mpa
As per customers' material characteristic

Width
≤1500 mm
According to different profile shape

Coil weight
5 or 8 T
Optional

Working speed
≤15 m/min

Roller material
Hard chromium plated 45 steel

Roller driving mode
External chain drive

Electric control system
Industrial computer PLC frequency control

Console mode
Touch screen+ button

Total power
6.2 kW
As per technical requirement

Outline dimensions (LXWXH)
20X1.6X1.8 m
