(1) 5Tons manual un-coiler
Description
There are different choices, please turn to the catalogue of un-coiler
(2) Entry bench & Manual Pre-shearing device
Function
Smart cut control, to cut off the end of the final piece of sheet only
Shearing Thickness
Up to Max. 0.8mm (if thickness > 0.8mm, then hydraulic pre-shearing device or electric pre-shearing device instead )

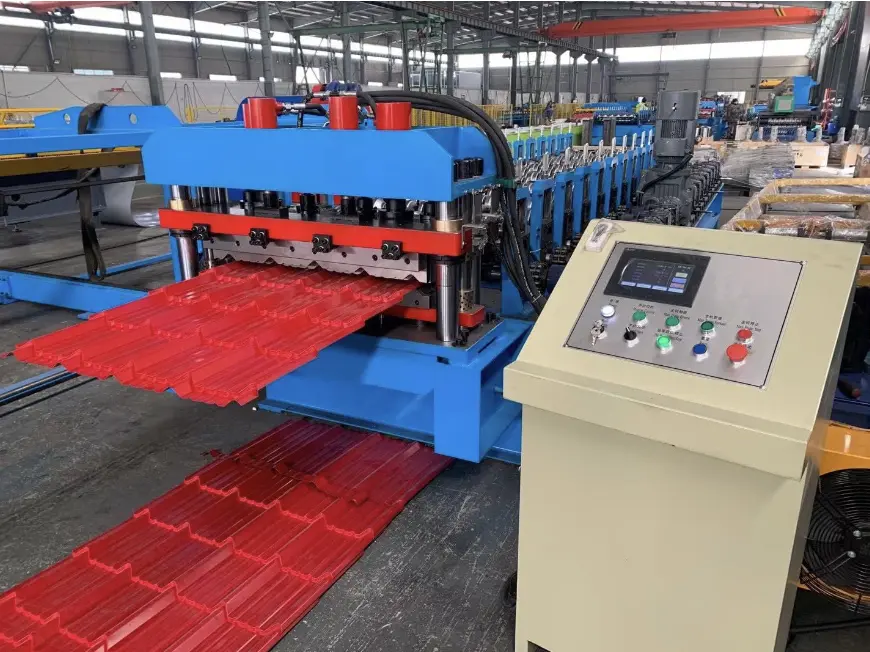

(3) The general machine parameter
Suitable roll forming material
Color steel sheet or Aluminum
Thickness
0.4mm-0.6mm
Feeding width
1219mm
Frame design
Wall-plate-frame-design /New-stand-frame-design
Roll stages
18 stages
Material of forming roller
45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter
Φ75 mm
Main motor power
7.5KW with reducer
Max. Line speed of roll former
Approx. 4m/min (stair length 350mm, production length 6m)
Hydraulic Stair-Drawing & Cutting Device
There is one hydraulic press to make the stair according to requirement and hydraulic post cut for cut off
Hydraulic group power
11KW
Material of cutting blade
Cr12, heat treatment
Electric Standard
380V /50Hz/3PH or as the customer's requirements
Machine Dimensions
9430mm×1960mm×1650mm
Major Color of Machine Painted
RAL 5015 (Blue) or as per customer's requirements
(4) PLC Control system
PLC
Siemens brand
Touch Screen
Siemens brand
Inverter
Schneider brand
Encoder
Omron brand
(5) Product rack
Description
un-powered, 3 units
(6) Options for tile roof :
A.Hydraulic pre-shearing device
B.Improvement for driving system for Tile roof
Servo motor instead of AC motor for the roll former, to increase the production speed and the tolerance between two stairs
Driving system with gear box and redirector for every three/four stages to improve the speed and tolerance control. Sprocket driving between each three/four stages.
