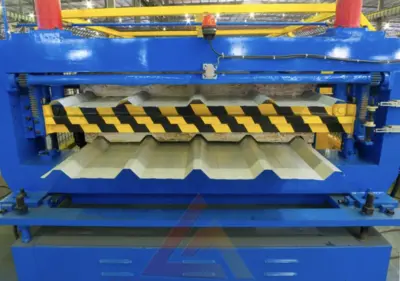

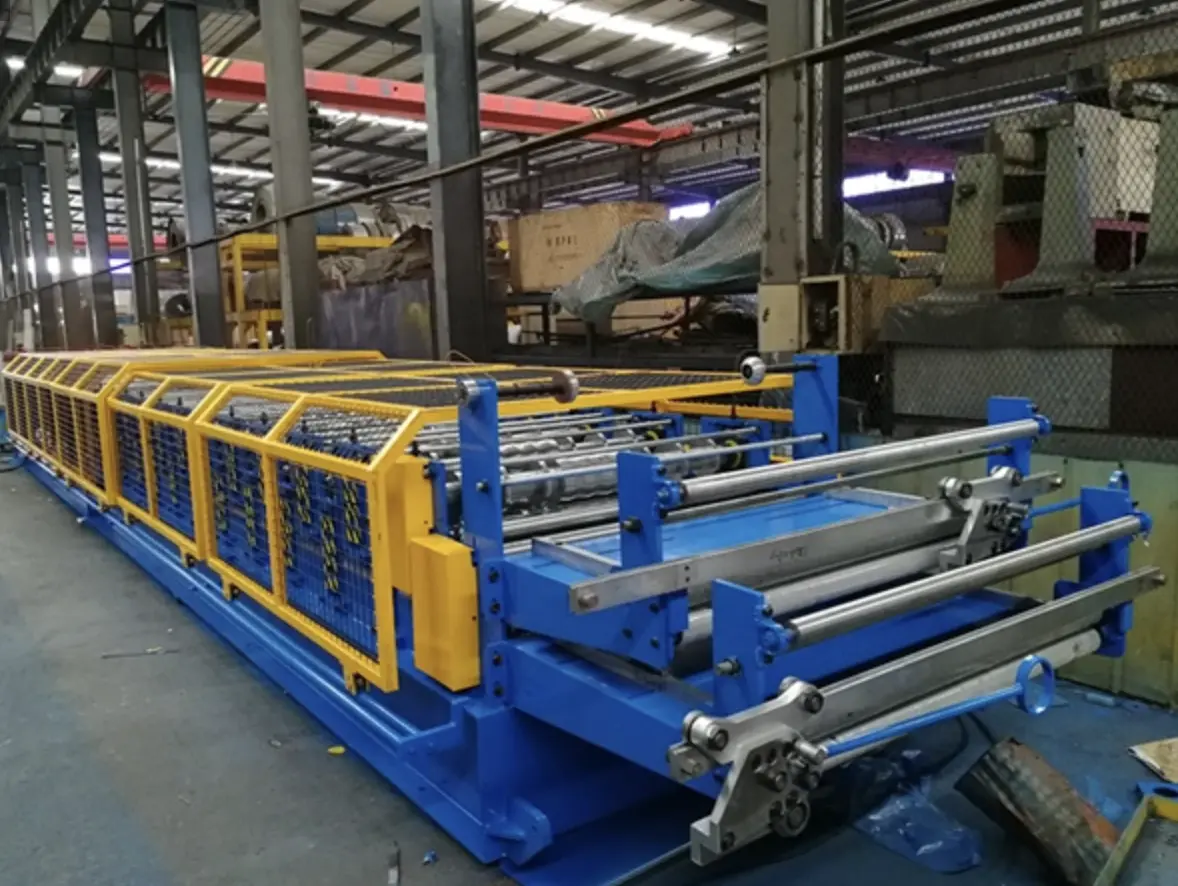

Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.
5 Ton X 1250 Hydraulic Un-coiler-provided by the buyer themselves
Entry roller & Manual Pre-shearing device Dual Leveling Un-powered
Smart cut control, to cut off the end of the final piece of sheet only
Working thickness up to 0.8mm
Dual Cold Rolling Mills
Gear/Sprocket driving; Dual Levelling,18-step to form
Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated
Shafts Diameter=ф95mm, Precision Machined, fine Polished
Main motor =5.5W, Frequency speed control
Manual Clutch to switch the driven system
Hydraulic Cutting Device
Stop to cut, Post cut, No blanking cut
Cutting tool material: Cr12, Heat treatment
Hydraulic group, Pump motor =5.5KW
PLC Control System
Control the quantity & cutting length automatically.
Control the switch action to run the different two profiles
