Material
Aluminium PPGI PPGL GI GL
Width
474/575/675mm
Thickness
1.0mm, customized
Power Required
Power
380V 3Phase 50Hz or 415V, customized
Main Motor
7.5KW, Lichao, Shanghai/Siemens Brand
Cutting Motor
4.0KW, Lichao, Shanghai/Siemens Brand

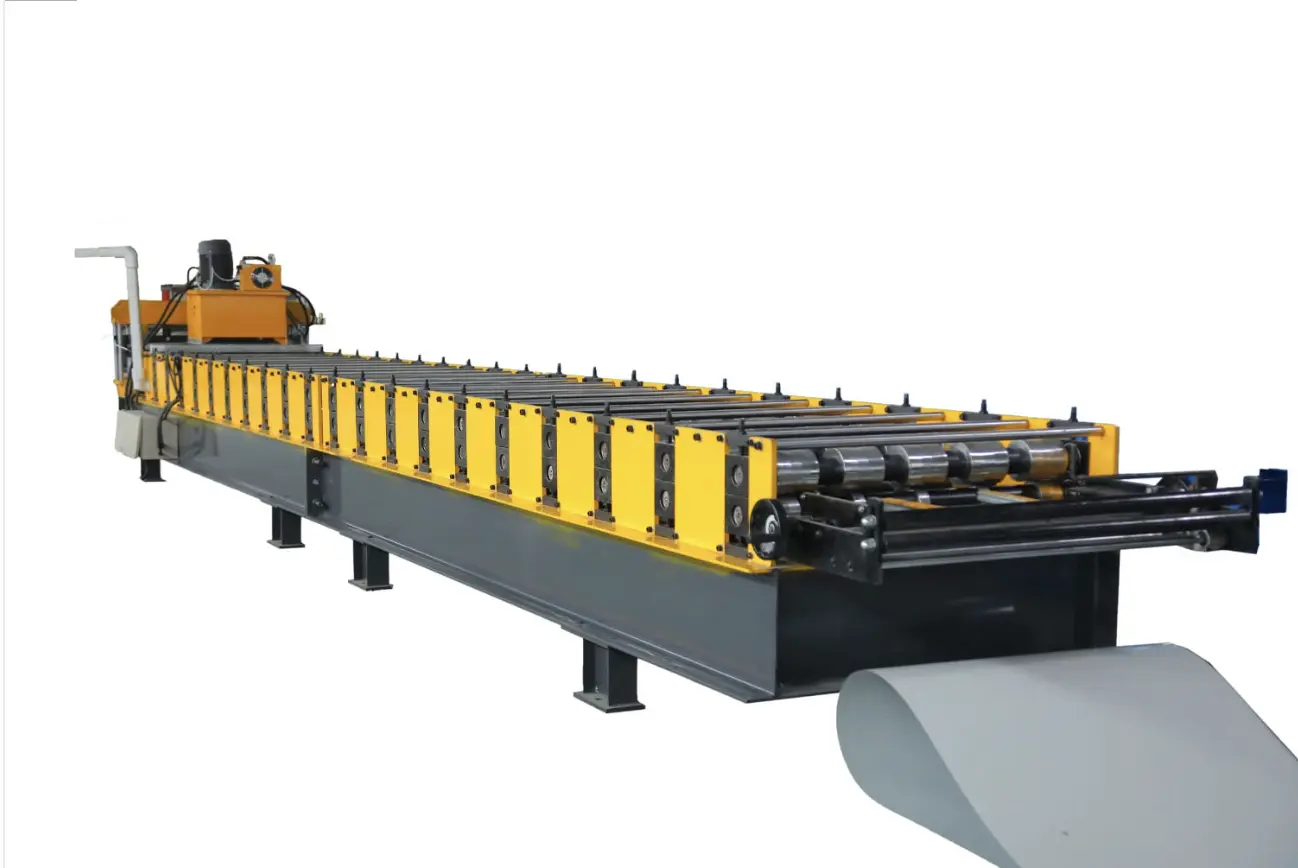

Roll Forming Machine
Support Frame
350H steel
Forming Station
21 rows, exactly according to profile drawing
Structure
18mm
Shaft
45# high grade steel, 70mm, solid, with keyway
Roller
45# high grade steel with heat treatment, hard chrome plated
Chain
1.0inch
Bearing
Standard
Speed
12-18m/min
Electric Components
Delta / Siemens / Mitsubishi
Cutting Blade
Cr12Mov, quenched 58°-62°
Operation
Touch Screen
Dimension
11.0*1.4*1.7M
Weight
6.5T
