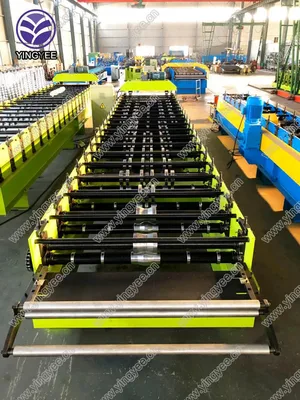

Metal Roof Sheet Roll Forming Machine in China

Model No.:YY –HSR-002
Type:Metal Tile Forming Machine
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Control System:PLC
Warranty:12 Months
Forming Speed:25-30m/min
Material:GI, PPGI, Aluminum Coils
Thickness:0.35-0.8mm
Delivery:50 Days
Cutting Mode:Mechanical Cutting
Automatic High Speed Metal Roof Sheet Roll Froming Machine
Our Automatic High Speed Metal Roof Sheet Roll Froming Machine .Speed 25-30m/min ,the speed double than normal machine.
The machine with Mechanical cutting to suits the high speed require.cut only 1 second.

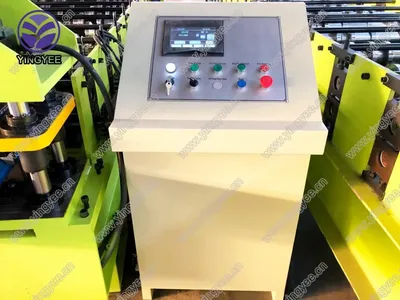

All the electric part are Mitsubishi brand ,include: PLC , Touch screen,Frequency converter.
Roll forming machines metal roofing , Metal galvanized coils as raw material, PLC control, Chain transmission, has fast speed,feature of high stabilization
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Raw materials
Galvanized coils, Pre-painted coils, Aluminum coils

Material thickness range
0.35-0.8mm

Forming speed
25-30m/min

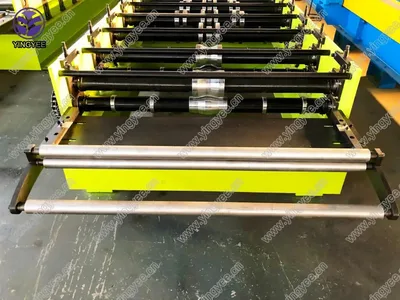

Rollers
21 rows(according to drawings)

Material of rollers
45# steel with chromed

Shaft material and diameter
75mm, material is 45#steel

Material of body
400H steel

Wall panel
20mm Q195 steel(all with electrostatic spraying)

Controlling system
PLC

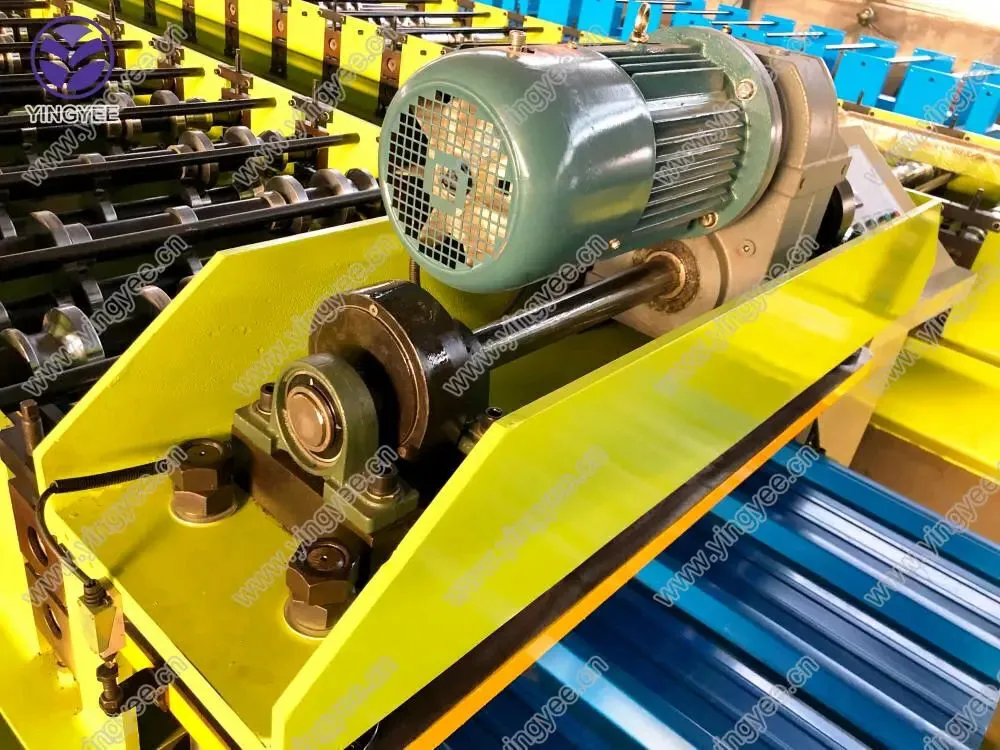

Main power
7.5KW

Material of cutting blade
Cr12 mould steel with quenched treatment

Voltage
380V/3Phase/50Hz

Total weight
about 4 tons
