Metal IBR Roof Sheet Roll Forming Machine in China

Manual Decoiler
1: Max width of raw material :1300mm2: Capacity: 5000kgs3: Inner diameter of coil: 450-600mm

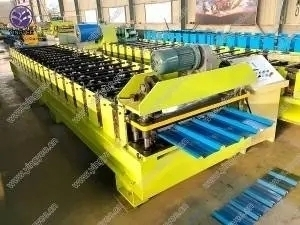

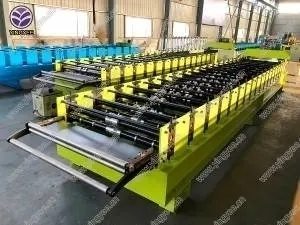

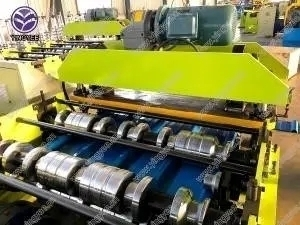

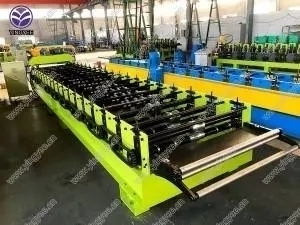

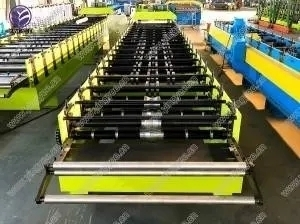

Roll forming machine
1.Matching material:PPGI/GI/Aluminium2.Material thickness:0.2-1mm3.Power:7.5kw4.Forming speed:0-30m/min5. The width of the plates:according to the drawings6.input leveling equipment:adjustable as photos.7.Roll stations:228.Shaft Material and diameter:materialis45#steel ￠80mm, 9.Tolerance:10m±1.5mm 10.Way of drive:chain with the motor

11.Controlling system:PLC
12.Voltage,Frequency,Phase:depend on customer request
13.Material of forming rollers:45#steel heat treatment and chromed 14Materialofcutterblade:Cr12mouldsteelwith quenched treatmentHRC58-62
15. Side plate:steel plate with Chromed.

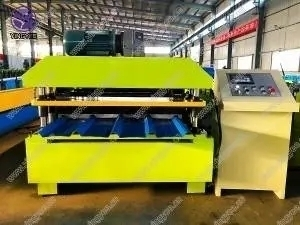

Cutting
(hydraulic guide)

1. Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.2.Material of blade: Cr12 mould steel with quenchedtreatment58-62℃ 3.Length : Automatic length measuring4.Tolerance of length: 10+/- 1.5mm
