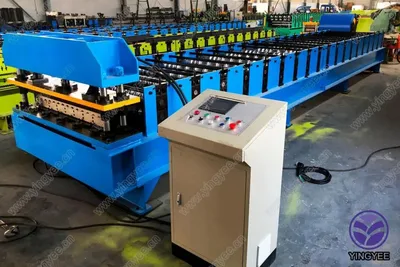

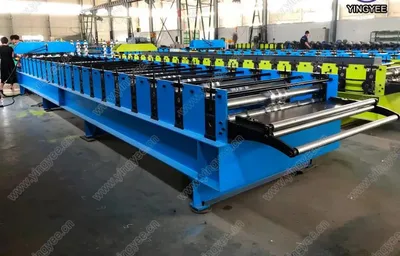

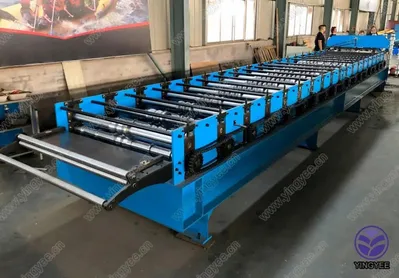

IBR Metal Roof Sheet Cold Roll Forming Machine in China

Type:Tile Forming Machine
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Control System:PLC
Warranty:12 Months
Thickness:0.3-1mm
Forming Speed:25-30m/min
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Delivery:30 Days
Trapezoid Roof Sheet Forming Machine
IBR metal roof sheet Cold Roll Forming Machine line includes 7 tons manual decoiler, roll forming host, PLC control system and hydraulic cutting system.
The manual decoiler is free for the machine, it can hold 7 tons of raw material, and normally the distance between the manual decoiler and the roll forming host is 3 meters.
Roll forming host has 11 rows of rollers to make profiles as per customer’s request.
Roll forming machines metal roofing , Metal galvanized coils as raw material, PLC control, Chain transmission, has fast speed,feature of high stabilization
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Raw materials
Galvanized coils, Pre-painted coils, Aluminum coils

Material thickness range
0.2-1mm

Forming speed
10-15m/min

Rollers
15 rows(according to drawings)

Material of rollers
45# steel with chromed

Shaft material and diameter
76mm, material is 40Cr

Material of body
400H steel

Wall panel
20mm Q195 steel(all with electrostatic spraying)

Controlling system
PLC

Main power
5.5KW

Material of cutting blade
Cr12 mould steel with quenched treatment

Voltage
380V/3Phase/50Hz

Total weight
about 4 tons
