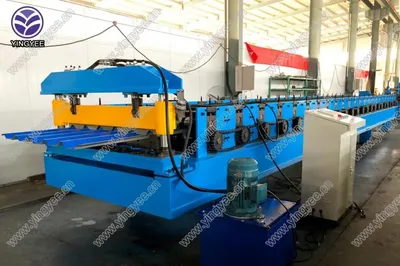

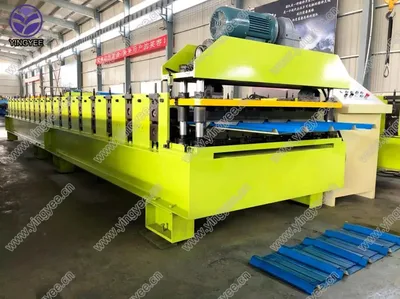

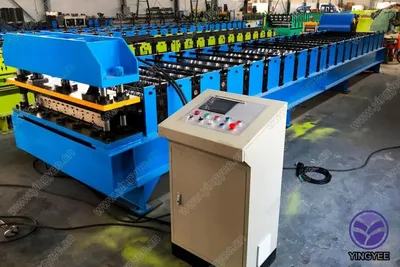

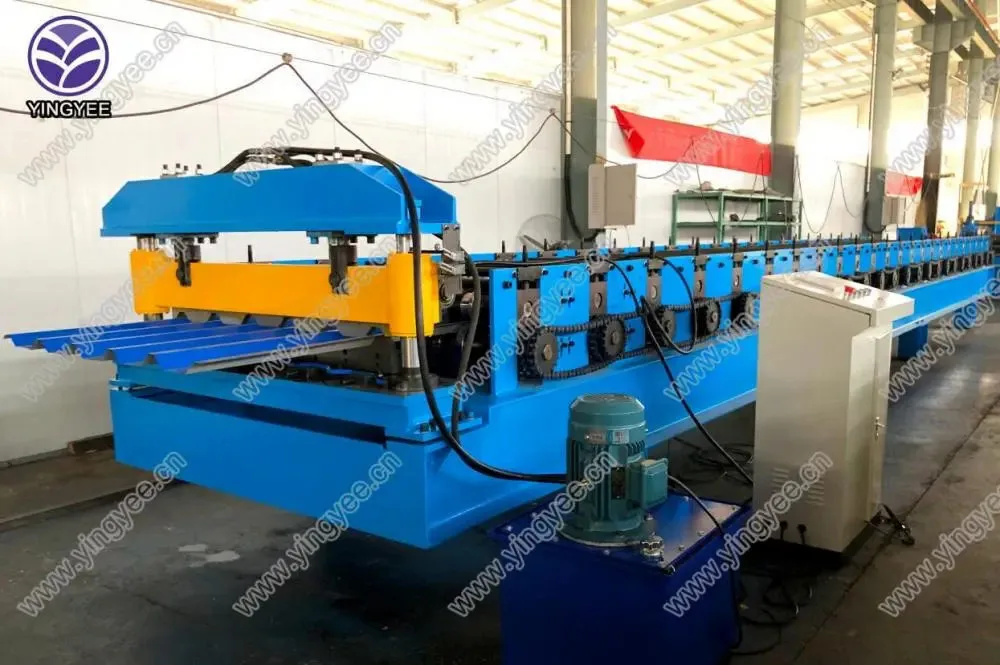

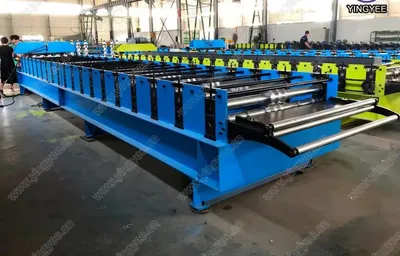

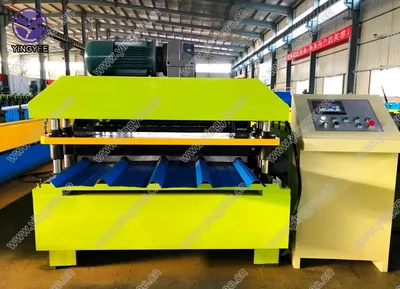

Metal IBR Roof Tile Roll Forming Machine in China

Model No.:YINGYEE
Condition:New
Tile Type:Colored Steel
Control System:PLC
Warranty:12 Months
Using:Roof
Weight:3-6 Tons
Effective Width:600-1250mm
Type:Roof Sheet Roll Forming Machine
Metal IBR Roof Tile Roll Forming Machine is different from other productions.IBR color type roofing tile machine use new technology. IBR Steel Metal Roofing Tile Machine are widely used in building. What’s more,0our IBR roll forming machine Steel Metal Roofing Tile machine equipment can be designed and manufactured as customers’ requests.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Raw materials
Galvanized coils, Pre-painted coils, Aluminum coils

Material thickness range
0.2-1mm

Forming speed
10-15m/min

Rollers
15 rows(according to drawings)

Material of rollers
45# steel with chromed

Shaft material and diameter
76mm, material is 40Cr

Material of body
400H steel

Wall panel
20mm Q195 steel(all with electrostatic spraying)

Controlling system
PLC

Main power
5.5KW

Material of cutting blade
Cr12 mould steel with quenched treatment

Voltage
380V/3Phase/50Hz

Total weight
about 4 tons
