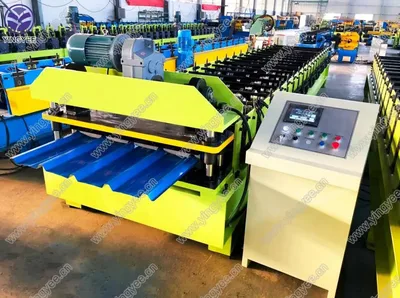

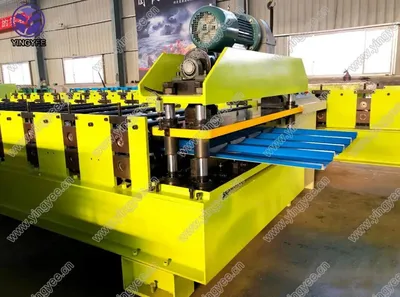

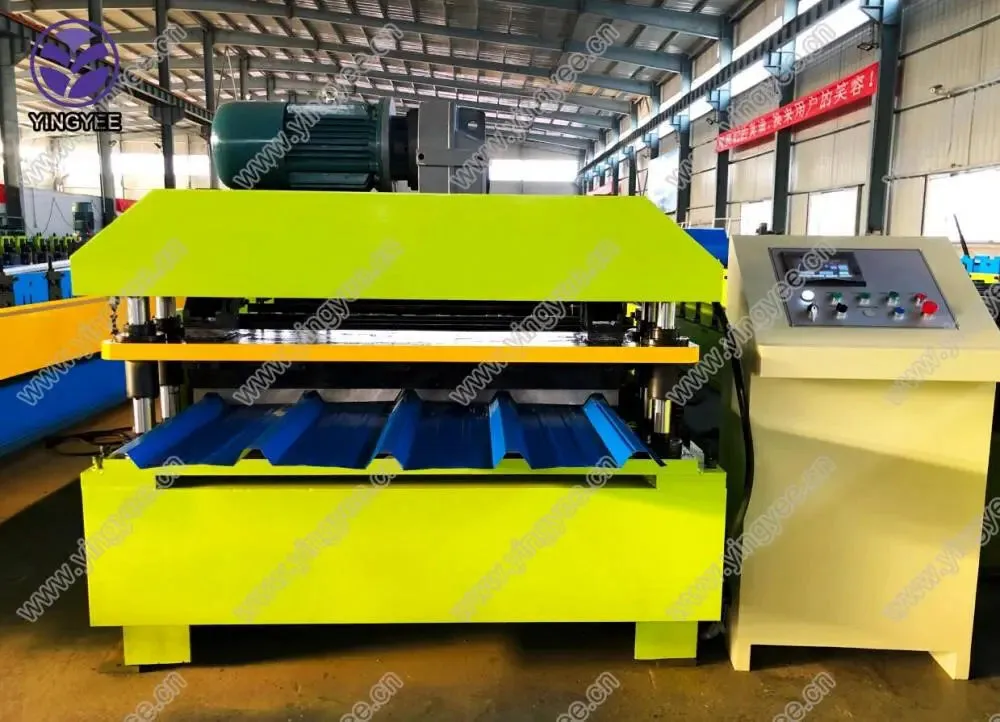

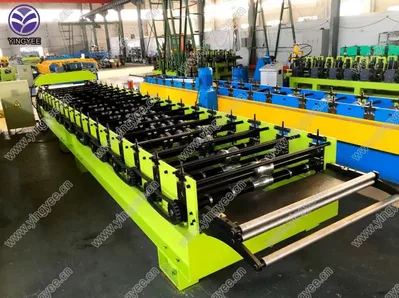

Metal Galvanized IBR Trapezoid Roll Forming Machine in China

Type:Roof Sheet Roll Forming Machine
Using:Roof
Forming Speed:25-30m/min
Thickness:0.3-1mm
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Control System:PLC
Warranty:12 Months
Delivery:30 Days
IBR trapezoid Roof Sheet Roll Forming Machine
PLC Control Trapezoid Roof Sheet Roll Forming Machine only produces the color steel tile used as the roof sheet. Corrugated height is relatively high, is the products which update the traditional roof screw installation products. The whole machine adopts imported PLC control system, collocation with other roll forming machines can achieve all-day continuous production.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Raw materials
Galvanized coils, Pre-painted coils, Aluminum coils

Material thickness range
0.2-1mm

Forming speed
10-15m/min

Rollers
15 rows(according to drawings)

Material of rollers
45# steel with chromed

Shaft material and diameter
76mm, material is 40Cr

Material of body
400H steel

Wall panel
20mm Q195 steel(all with electrostatic spraying)

Controlling system
PLC

Main power
5.5KW

Material of cutting blade
Cr12 mould steel with quenched treatment

Voltage
380V/3Phase/50Hz

Total weight
about 4 tons
