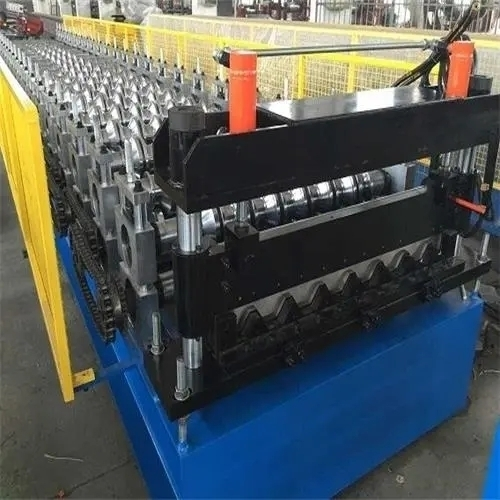

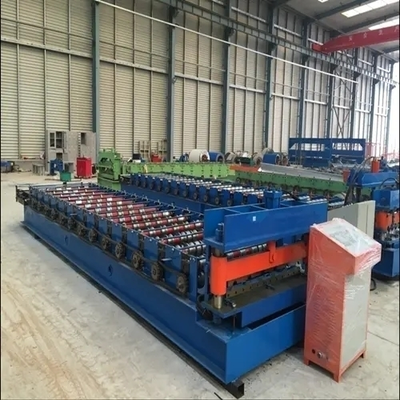

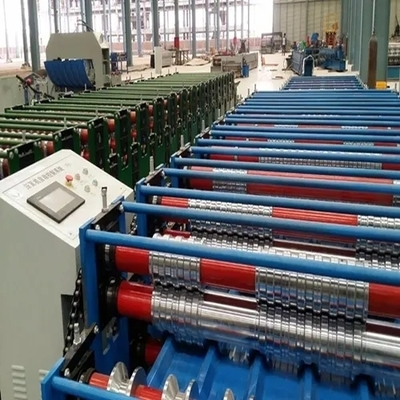

Corrugation Wave Metal Sheet Roll Forming Machine in China

Control System:PLC
Warranty:12 Months
Thickness:0.3-1mm
Using:Roof
Type:Roof Sheet Roll Forming Machine
Forming Speed:25-30m/min
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Delivery:30 Days

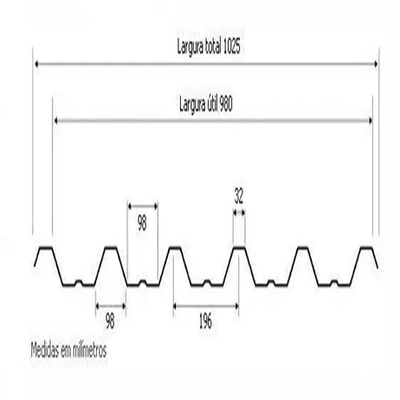

Trapezoid roof sheet roll forming machine This type of roof sheet has advantage including beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Raw materials
Galvanized coils, Pre-painted coils, Aluminum coils

Material thickness range
0.2-1mm

Forming speed
10-15m/min

Rollers
15 rows(according to drawings)

Material of rollers
45# steel with chromed

Shaft material and diameter
76mm, material is 40Cr

Material of body
400H steel

Wall panel
20mm Q195 steel(all with electrostatic spraying)

Controlling system
PLC

Main power
5.5KW

Material of cutting blade
Cr12 mould steel with quenched treatment

Voltage
380V/3Phase/50Hz

Total weight
about 4 tons
