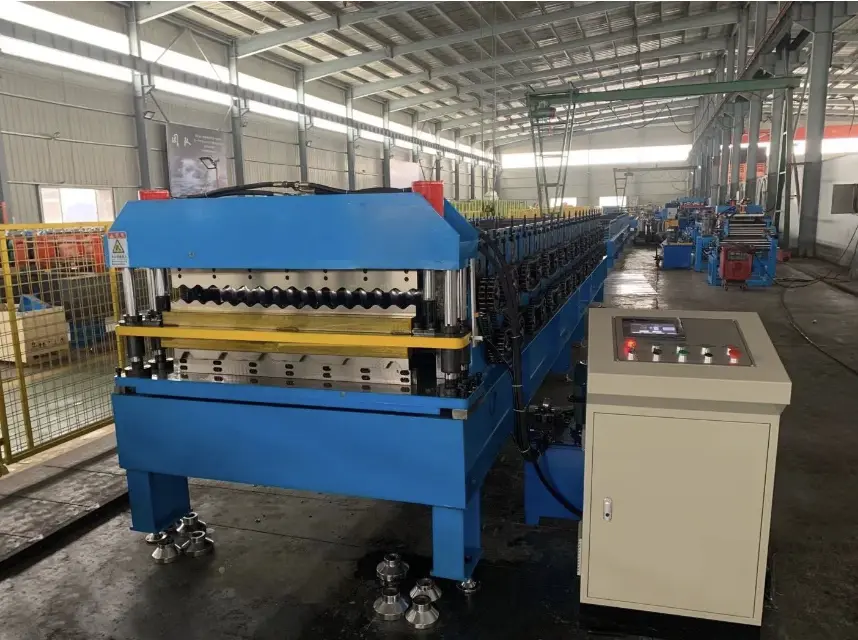

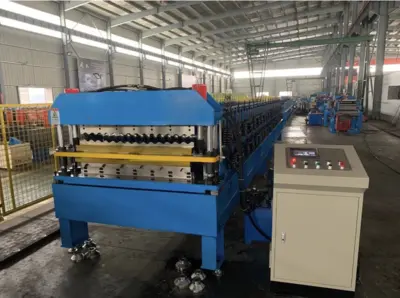

Roof Panel Roll Forming Machine in Lebanon

passively de-coiling

Load-bearing of de-coiler:
5T

Frame of machine:
Welded with 350H beam steel

Thickness of wallboard:
16mm

Guide feeding way of forming:
Side direction roller type

Forming machine type:
Wallboard and chain drive

Diameter of shaft:
¢75mm

Chain:
16A single row

Motor power of forming machine:
5.5KW

Line speed of forming machine:
18m/min

Steps of forming machine:
16/14

Roller material:
superior 45# steel forging

Thickness of Chrome plated on roller:
0.05mm

Hydraulic station motor:
4 KW, pressure: 8-12Mpa

Hydraulic station oil pump:
gear pump

Cutting blade material:
Cr12

Cutting blade heat treatment:
HRC58ºC-60ºC

Rolling thickness:
0.3-0.8 mm

Feeding width:
1250mm

Precision of cut-to-length:
±2mm

Electrical control system:
Computer adopts PLC, touch screen

Voltage:
380V, 50Hz, 3 Phases.

Dimension of machine:
6.8m x 1.7m x 1.5m
