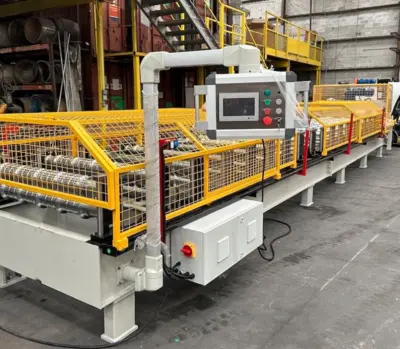

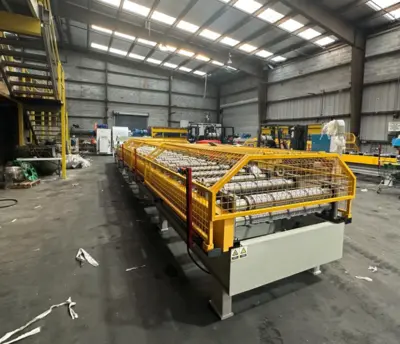

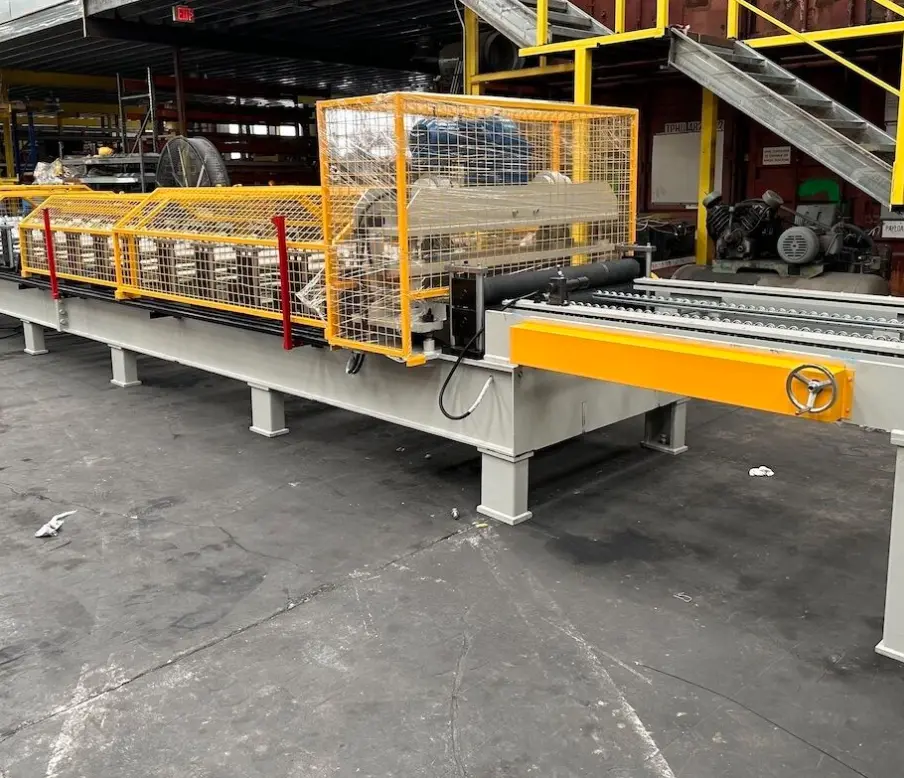

Metal Roof Panel Roll Forming Machine – Canada

Manufactured to Your Exact Profile and Production Requirements
Introduction
The Metal Roof Panel Roll Forming Machine supplied by Machine Matcher is engineered to meet the needs of Canada’s growing construction, industrial, and agricultural roofing markets. From Ontario and Quebec’s commercial metal roofing contractors to Alberta’s industrial shed builders and British Columbia’s residential construction sector, this machine delivers reliable, high-speed production of steel, aluminum, and galvalume roof panels in a wide range of profiles.
Each machine is built new to your specification, ensuring your exact roof panel profile, gauge, and finish requirements are met. Designed for Canadian standards (575V / 60Hz / 3-phase) and supported by our 24/7 global technical team, this equipment provides a long-term, high-precision solution for roofing manufacturers across Canada and worldwide.
Machine Overview
The Metal Roof Panel Roll Forming Machine is a fully automated production line designed for forming a variety of roof profiles, including:
PBR (Purlin Bearing Rib)

AG Panel / Agricultural Panel

Corrugated Metal Roofing

Trapezoidal Panels

R-Panel

Standing Seam Roofing Systems
These profiles are commonly used in:
Residential roofing

Industrial buildings

Warehouses and workshops

Agricultural barns

Commercial and retail structures

Metal wall cladding systems
All machines supplied through Machine Matcher are manufactured to ISO, CE, and CSA standards, ensuring precision, reliability, and compliance with Canadian and international safety requirements.
Machine Technical Specifications
Parameter
Specification

Machine Type
Metal Roof Panel Roll Forming Machine

Production Speed
30–45 meters per minute (customizable up to 60 m/min)

Material Thickness Range
0.3 – 0.8 mm

Material Width Range
914 – 1250 mm (custom per profile)

Material Types
Galvanized Steel, Galvalume, PPGI, Aluminum

Material Yield Strength
Up to 550 MPa

Roller Material
GCr15 bearing steel, heat-treated

Roller Surface Treatment
Hard chrome plating for corrosion resistance

Number of Forming Stations
14–22 stations (varies by profile)

Roller Shaft Diameter
70 mm solid shaft

Shaft Material
45# forged steel, precision ground

Main Drive Type
Chain drive or gearbox drive (optional)

Power Supply (Canada)
575V, 60Hz, 3-Phase

Motor Power
11 – 15 kW (depending on machine size)

Cutting Method
Hydraulic post-cut or flying shear

Blade Material
Cr12MoV high-speed tool steel, heat-treated

Control Type
PLC control system with touch-screen HMI (Delta, Siemens, or Mitsubishi)

Operating Mode
Automatic / Manual selectable

De-coiling System
Manual or hydraulic uncoiler, 5-10 ton capacity

Punching/Notching System (optional)
Hydraulic punching unit for fastener holes or slotting

Machine Frame
350H steel welded base, stress-relieved

Thickness of Frame Steel
20 – 25 mm side plates

Profile Shape
Customizable to customer-supplied drawings (PBR, AG, Corrugated, R-Panel, etc.)

Profile Width and Depth
250 – 1000 mm width / 25 – 35 mm rib depth (varies per design)

Length Tolerance
±1.5 mm per cut

Safety Features
Emergency stop buttons, overload protection, safety covers, and full machine guards

Warranty
1 Year – Full support and parts coverage
Pricing: Determined based on customization, speed, and optional add-ons. Contact Machine Matcher for a tailored quotation.
Optional Add-Ons and Upgrades
Enhance your production efficiency and automation with the following options:
Automatic hydraulic uncoiler (5T–10T)

Coil car with tipper system

Servo feeding and punching unit

Automatic stacking system

Decoiler and recoiler integration

Remote PLC monitoring and diagnostics (Ewon or PLCRemote)

Embossing rollers for decorative finish

Leveling system for high-precision output

Hydraulic oil cooling unit for continuous operation

Automatic lubrication and cleaning systems
Applications and Industries in Canada
Metal roof panels produced by these machines are used across Canada in:
Commercial buildings: retail centers, shopping complexes, warehouses

Industrial facilities: factories, distribution centers, and logistics hubs

Agricultural structures: barns, storage sheds, grain silos, greenhouses

Residential housing: modern homes, cottages, garages, extensions

Institutional construction: schools, hospitals, sports halls
With Canada’s varied climate, metal roofing offers superior durability, energy efficiency, and snow-load performance, making roll forming machines an essential part of the construction supply chain.
How the Machine Works
Coil Loading:

A coil of steel or aluminum is loaded onto the uncoiler.

Feeding and Leveling:

The sheet passes through leveling rollers to ensure flatness.

Forming Section:

The material passes through multiple roller stations that gradually form the panel’s shape.

Cutting and Punching:

The formed sheet is cut to the programmed length using a hydraulic shear.

Finished Product:

Each panel exits the machine ready for installation, packaging, or stacking.
This seamless automation ensures consistent panel dimensions, reduced waste, and minimal operator intervention.
What Is a Metal Roof Panel Roll Forming Machine?
A metal roof panel roll forming machine is a precision-engineered production line that continuously shapes flat metal coils into roofing panels through a sequence of forming rollers. Unlike press brakes or folding machines, roll formers produce high-volume, consistent profiles suitable for large-scale roofing and cladding projects.
Frequently Asked Questions
What is the best metal roof profile for Canadian buildings?
The most common profiles in Canada are PBR, AG Panel, and Corrugated Roofing. PBR panels are preferred for industrial and commercial buildings, while AG and Corrugated panels are popular for agricultural and residential applications due to their classic design and snow-shedding capabilities.
How to choose the right metal roof panel machine?
Select a machine based on:
Your panel profile and drawing

Material gauge and width

Production speed requirements

Automation features (punching, stacking, decoiling)

Available space and power supply
Machine Matcher helps assess all these factors and match you with the most suitable model.
Why use roll forming instead of other methods?
Roll forming delivers:
High-volume continuous production

Minimal material waste

Excellent surface finish

Consistent accuracy over long runs
This makes it ideal for large-scale Canadian roofing manufacturers and metal building suppliers.
How to maintain a roll forming machine?
Routine maintenance includes:
Checking chain tension and lubrication weekly

Cleaning rollers and guides daily

Inspecting hydraulic oil and filters monthly

Verifying alignment and encoder calibration quarterly
Machine Matcher offers maintenance plans and remote diagnostic support to help operators reduce downtime.
Why choose Machine Matcher for Canadian roll forming equipment?
Machines are custom-built to your profile

24/7 technical support via PLC remote access and video guidance

Global shipping and installation assistance

Pre-shipment testing videos and reports

1-year warranty on all machines and parts
Ordering Process – How to Order a Metal Roof Panel Roll Forming Machine
Send Your Profile Drawing or Sample:

Share your desired roof panel design or choose one from our Profile Catalog.

Confirm Machine Requirements:

We’ll finalize coil specs, gauge, material, and production speed.

Receive Your Custom Quote:

Pricing is tailored to your specifications and optional extras.

Production and Testing:

Every machine is built new, tested under load, and verified for cut-length accuracy, speed, and performance.

Shipping and Installation:

Machines are securely packed for export and delivered to your location in Canada. Installation and training can be provided on-site or remotely.

Ongoing Support:

Our 24/7 worldwide technical desk provides remote PLC support, troubleshooting, and maintenance planning.
Power and Compliance in Canada
All roll forming machines supplied for the Canadian market are configured for 575V, 60Hz, 3-phase power. Machines are compatible with CSA and provincial electrical standards and include overload protection systems for safe operation in industrial environments.
Industries Using Metal Roof Panel Machines in Canada
Roofing manufacturers and contractors

Steel structure builders

Prefab housing suppliers

Warehouse and factory constructors

Agricultural equipment fabricators

Home improvement and sheet metal supply companies
How to Improve Production Efficiency
Upgrade to servo feeding and flying shear cutting for precision and speed.

Use automatic stacking to reduce manual handling.

Implement remote PLC access for troubleshooting and monitoring.

Schedule preventive maintenance with Machine Matcher’s support team.
Maintenance Support and Remote Services
Machine Matcher offers:
Remote PLC monitoring and troubleshooting

Camera-assisted diagnostics for real-time support

Custom maintenance plans (daily, weekly, monthly, quarterly)

Spare parts sourcing and replacement guidance
Our technicians are available 24 hours a day, ensuring your operation stays productive with minimal downtime.
Contact Machine Matcher
For full specifications, pricing, and profile customization:

Machine Matcher – Canada Division

London (HQ) | Orlando (USA) | Global Support Network
Website: https://machinematcher.com/contact
Final Summary
Every Machine Matcher Metal Roof Panel Roll Forming Machine is built new to customer specifications, tested before shipment, and backed by full technical support.

We deliver globally, ensuring smooth installation, reliable production, and a long-term partnership with every client.
