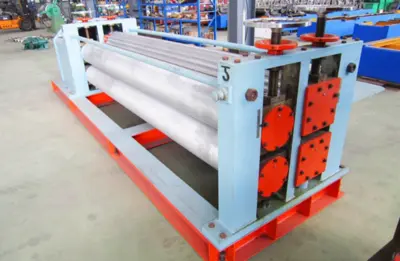

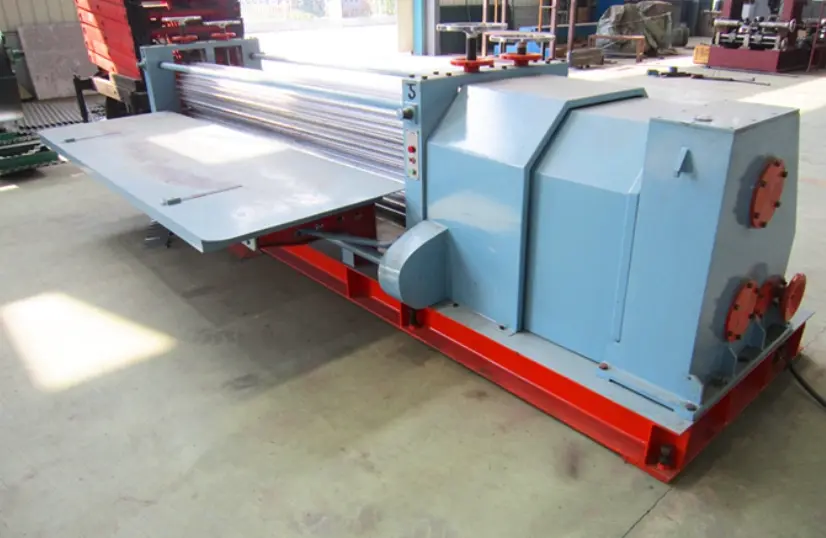

Barrel Corrugated Sheet Machine – Product Description
Machine Matcher proudly presents the Barrel Corrugated Sheet Machine, a robust and versatile forming solution engineered for producing high-quality corrugated iron sheets with a distinctive barrel-style wave. This machine is ideal for roofing and cladding applications in industrial, agricultural, and residential sectors across the UAE and beyond. It delivers consistent sheet profiles, precise control over corrugation dimensions, and dependable performance under heavy-duty operation.
Machine Overview
The Barrel Corrugated Sheet Machine is specifically designed to transform metal coils into aesthetically curved and mechanically strong corrugated sheets. This machine handles corrugated iron sheet thicknesses ranging from 0.12mm to 0.6mm, suitable for galvanized steel, pre-painted steel, and aluminum.
With customizable profile parameters, including peak distance, height, and effective width, users can achieve the exact dimensions required for their construction projects.
Available in two models—HH-32C and HH-46C—the machine suits different operational needs based on production length and capacity.
Corrugated Iron Sheet Dimensions
Parameter
Value
Length
3200mm (HH-32C) / 4600mm (HH-46C)
Feeding Width
≤1000mm
Peak Distance
75.5mm (Adjustable)
Peak Height
16mm (Adjustable)
Effective Width
830mm (Adjustable)
Material Thickness
0.12mm – 0.6mm
Main Technical Specifications
Model
HH-32C
HH-46C
Voltage
380V (Customizable)
380V (Customizable)
Phase
3Phase – 50Hz
3Phase – 50Hz
Power
Approx. 7.5KW
Approx. 11KW
Feed-in Mode
Manual
Manual
Transmission
Separate Drive
Separate Drive
Max Length
3200mm
4600mm
Max Feed Width
1000mm
1000mm
Thickness
0.12 – 0.6mm
0.12 – 0.6mm
Production
Approx. 3.0 tons/hour
Approx. 4.5 tons/hour
Dimensions
4.9m × 2.0m × 1.4m
7.2m × 2.2m × 1.6m
Weight
Approx. 6300kg
Approx. 9500kg
Industry Applications
This machine is extensively used in the roofing and cladding industry across:
Construction & Infrastructure: Warehouses, factories, sheds, garages, and canopies
Agricultural Buildings: Barns, grain stores, poultry housing
Residential Projects: Modern homes, carports, awnings
Industrial Warehousing: Logistic centers, port facilities
The barrel corrugated profile it produces is known for its superior strength-to-weight ratio and excellent water-shedding capability, making it a preferred roofing and walling solution in areas prone to heavy rainfall.
Standard Features
Heavy-duty frame with high structural rigidity
Precision roll forming for consistent curve profiles
Manual feed-in with operator control for flexible production
Separate drive transmission for stable and smooth rolling
Adjustable peak distance and height for custom profiles
Optional hydraulic decoilers or sheet stackers (sold separately)
Pricing and Options
The price of the Barrel Corrugated Sheet Machine varies depending on:
Production length (3200mm or 4600mm)
Optional automation (decoiler, stacker)
Material handling systems
Electrical customizations for different countries
Prices typically start from USD 25,000 – 40,000, depending on customization.
Frequently Asked Questions
Q1: What types of materials can this machine process?
A1: The machine is designed for galvanized steel, pre-painted steel, and aluminum with thicknesses from 0.12mm to 0.6mm.
Q2: Can I adjust the profile dimensions?
A2: Yes, both the peak height and peak distance are adjustable to meet your required profile.
Q3: Is this machine suitable for high-volume production?
A3: Absolutely. The HH-46C model can produce up to 4.5 tons per hour, ideal for large-scale operations.
Q4: What is the installation time?
A4: Installation typically takes 3–5 days with experienced technicians, and Machine Matcher can assist in sourcing setup support in the UAE.
Q5: Is voltage customizable for other regions?
A5: Yes, voltage and frequency can be tailored to meet local power standards.
Global Supply from Machine Matcher
Machine Matcher is proud to offer high-performance Barrel Corrugated Sheet Machines to buyers across the UAE and international markets. All machines are brand new, made to order, and customized to your production specifications. With a support team based in the UK and USA, we ensure reliable pre-sale consultation, shipping coordination, and optional installation services worldwide.
To request a tailored quote or discuss optional features, contact the Machine Matcher team today.
