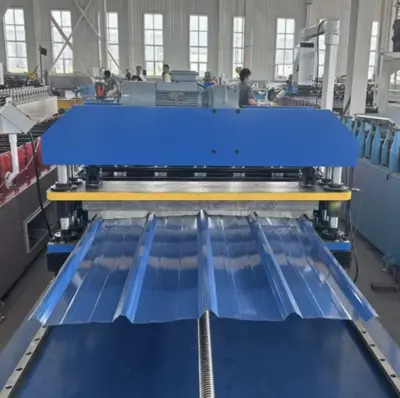

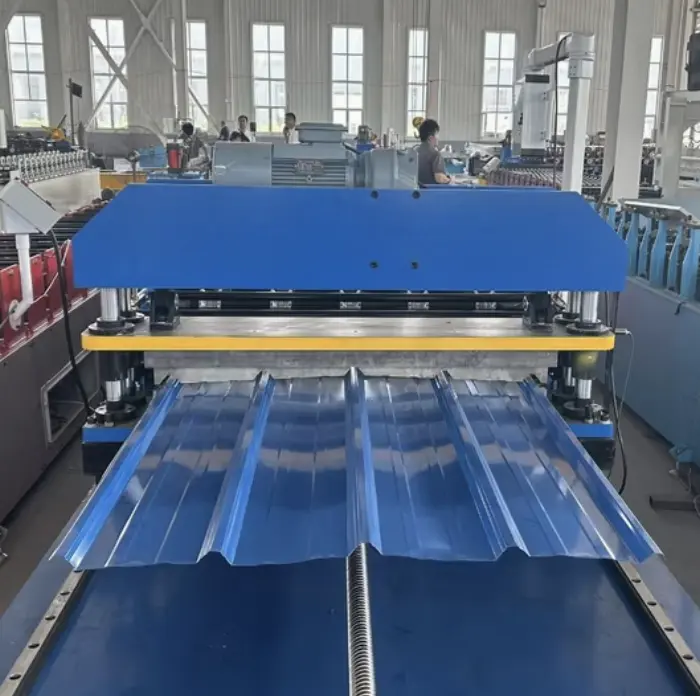

Metal Roofing Roll Forming Machine Albania

Metal Roofing Roll Forming Machine in Albania
1. Introduction
Albania, with its rapidly growing construction industry, has seen an increasing demand for durable and efficient roofing solutions. Metal roofing has become a popular choice due to its longevity, energy efficiency, and ability to withstand harsh weather conditions. The Metal Roofing Roll Forming Machine is designed to cater to this demand by producing high-quality metal roofing panels efficiently and consistently.
This machine is engineered to deliver precision and efficiency, making it a preferred choice for construction companies, roofing contractors, and manufacturing businesses in Albania. Whether for residential, commercial, or industrial projects, this roll forming machine is designed to handle a variety of roofing profiles to suit diverse requirements.
2. Machine Specifications
Material Thickness: 0.3-0.8mm

Frame Design: 350H steel

Roll Stages: 14-15 stages

Material of Forming Roller: 45# steel CNC lathes, hard chrome coated

Shaft Diameter: 70mm

Thickness of Middle Plate: 16mm

Main Motor Power: 4KW

Speed: 13-15M/min

Electric Standard: 380V/50HZ/3PH (or customized as per requirements)

Machine Color: Blue (or customizable)
3. Detailed Machine Description
3.1. Frame Design
The Metal Roofing Roll Forming Machine features a robust 350H steel frame, ensuring durability and stability during high-speed operations. The sturdy construction minimizes vibrations, thereby enhancing the precision of the formed profiles.

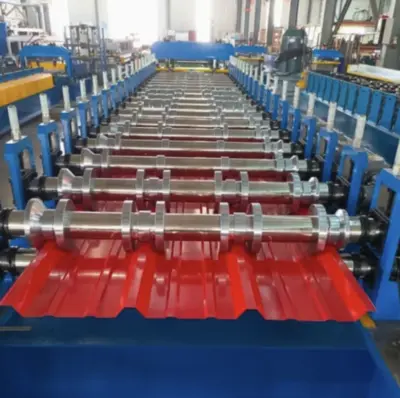

3.2. Forming Rollers
Manufactured from 45# steel and processed with CNC lathes, the rollers are hard chrome coated to prevent corrosion and ensure a longer lifespan. This coating also aids in smooth profile forming, minimizing surface imperfections on the finished product.
3.3. Shaft and Middle Plate
With a 70mm shaft diameter and a 16mm thick middle plate, the machine is capable of maintaining accurate alignment of rollers, ensuring consistent profile dimensions across long production runs.
3.4. Power and Speed
Powered by a 4KW main motor, the machine can efficiently produce roofing panels at a speed of 13-15 meters per minute, making it suitable for both medium and large-scale production demands.
3.5. Electrical Configuration
The machine operates on a standard 380V/50HZ/3PH electrical configuration, commonly used in Albania. However, customization options are available to suit different regional requirements.
4. Profile and Material Compatibility
4.1. Supported Profiles
Trapezoidal roofing sheets
Corrugated roofing sheets
Standing seam roofing sheets
These profiles are widely used in Albania for residential, commercial, and agricultural buildings due to their durability and weather resistance.
4.2. Compatible Materials
Galvanized Steel
Color-coated Steel
Aluminum
Copper
With a material thickness range of 0.3-0.8mm, this machine is versatile enough to handle a wide variety of metal types used in the Albanian construction industry.
5. Optional Extras and Customization
Hydraulic Decoiler: Supports coils up to 5 tons for continuous production.

PLC Control System: Allows easy operation and adjustment of profile dimensions.

Hydraulic Cutting System: Ensures clean and precise cuts.

Stacker: For organized stacking of finished profiles.

Remote PLC Control: Enables remote monitoring and adjustments.
6. Industries Related to Metal Roofing Profiles in Albania
Construction Industry:

Residential roofing
Commercial building projects
Industrial warehouses

Agriculture:

Roofing for barns and storage facilities
Greenhouses

Infrastructure Development:

Airports and transport hubs
Railway stations and bus terminals
7. Pricing
Pricing is determined based on optional extras and customization requirements. Contact us for a tailored quote based on your specific needs.
8. Setup and Installation
Foundation Preparation: Requires a level concrete floor.

Power Supply: Standard 380V/50HZ/3PH or as specified.

Training: On-site or remote training for operators.

Maintenance: Routine lubrication of rollers and periodic electrical inspections.
9. Maintenance Requirements
Daily: Cleaning of rollers and shafts to prevent material buildup.

Weekly: Lubrication of moving parts.

Monthly: Inspection of electrical components and PLC systems.

Annually: Calibration of rollers and shafts.
10. Question and Answers
Q1: What types of metal roofing profiles can this machine produce?
A: The machine is capable of producing trapezoidal, corrugated, and standing seam roofing sheets, which are popular in Albania's construction industry.
Q2: Is the machine compatible with different power standards?
A: Yes, the electrical configuration can be customized according to local power standards.
Q3: What is the maximum material thickness the machine can handle?
A: The machine is designed to handle metal sheets with a thickness range of 0.3-0.8mm.
Q4: Can this machine be used for aluminum and copper sheets?
A: Yes, it is compatible with galvanized steel, color-coated steel, aluminum, and copper.
Q5: What is the delivery time for this machine in Albania?
A: Typically, delivery takes 30-45 days, depending on customization requirements.
Q6: How can I get a quote for this machine?
A: You can contact us directly with your specific requirements for a tailored quote.
Q7: Is training provided for machine operation?
A: Yes, we offer both on-site and remote training options.
11. Conclusion
The Metal Roofing Roll Forming Machine is an excellent investment for businesses in Albania seeking to enhance their roofing panel production capabilities. Its durability, efficiency, and customizable options make it a versatile solution for various industries. For pricing and more details, contact us with your requirements.
