The T Rake Edge Roll Forming Machine is designed for precision, efficiency, and versatility, catering to the roofing industry in the USA. With its robust construction and advanced features, this machine ensures seamless production of T Rake Edge profiles, widely used for enhancing the aesthetics and functionality of roofing systems. Built to handle high-volume production, this roll forming machine is an ideal investment for manufacturers seeking reliable and cost-effective solutions.
1. Machine Description

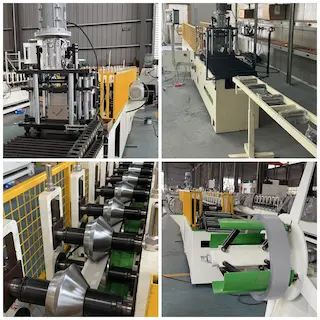

The T Rake Edge Roll Forming Machine is engineered to deliver high-speed and accurate production of T Rake Edge profiles. Designed for the U.S. market, it operates on a 240V three-phase 60 Hz power supply, ensuring compatibility with standard industrial power systems in the United States. The machine’s compact yet sturdy build, combined with an efficient electric shear system, makes it a preferred choice for manufacturers focused on productivity and precision.
Equipped with 10 forming stands, this machine guarantees consistent profile quality and smooth operations. Its advanced control system simplifies operation, while the electric shear ensures clean and precise cuts every time. The user-friendly PLC interface allows operators to set parameters effortlessly, minimizing downtime and maximizing throughput.
2. Specifications
Specification
Details
Pricing
Determined based on optional extras and customization requirements. Contact for a tailored quote.
Weight
2500 lbs
Machine Size
18 ft x 3 ft x 5 ft
Power Supply
Electric, 240V, Three-phase, 60 Hz
Speed
80 ft per minute
Number of Stands
10
Cutting System
Electric Shear
Control System
PLC (Programmable Logic Controller)
Material Compatibility
Steel, Aluminum, Galvanized Steel
Profile Type
T Rake Edge
3. Key Features
a. High-Speed Production
Operates at 80 feet per minute, ensuring swift production cycles and meeting high-demand requirements efficiently.
b. Precision Cutting
Integrated electric shear for accurate and clean cuts, minimizing material waste and ensuring high-quality finished profiles.
c. Robust Construction
Weighs 2500 lbs and features a compact design (18 ft x 3 ft x 5 ft), making it suitable for various industrial setups.
d. Versatile Power Compatibility
Designed for the U.S. market with a 240V three-phase 60 Hz power supply, ensuring seamless integration into American manufacturing environments.
e. User-Friendly Operation
Equipped with a PLC control system for easy parameter setting and operation, reducing training time and enhancing productivity.
4. Optional Extras
Remote PLC System: For enhanced control and monitoring.
Stackers: For efficient handling of finished profiles.
Uncoilers and Recoilers: To streamline the material handling process.
Coil Car Tippers: For effortless coil management.
5. Maintenance and Setup
Maintenance: Regular lubrication of moving parts, inspection of rollers, and calibration of the PLC system are recommended to ensure optimal performance.
Setup: Quick and straightforward setup with detailed manuals and customer support, making it easy for manufacturers to get started swiftly.
6. Question and Answers
Q1: What materials can the T Rake Edge Roll Forming Machine process?
A: This machine is compatible with a variety of materials, including steel, aluminum, and galvanized steel.
Q2: Can I get a customized version of this machine?
A: Yes, we offer customization options based on your specific requirements. Please contact us for a tailored quote.
Q3: What is the power requirement for this machine?
A: The machine requires a 240V three-phase 60 Hz power supply, standard for industrial setups in the USA.
Q4: How fast can this machine produce T Rake Edge profiles?
A: It can operate at speeds of up to 80 feet per minute, ensuring high efficiency and productivity.
Q5: Is technical support available for setup and maintenance?
A: Yes, we provide comprehensive technical support, including setup guidance and ongoing maintenance assistance.
Q6: How is pricing determined for this machine?
A: Pricing is based on optional extras and customization requirements. Contact us directly for a personalized quote.
For more information or to request a quote, please contact us today!
