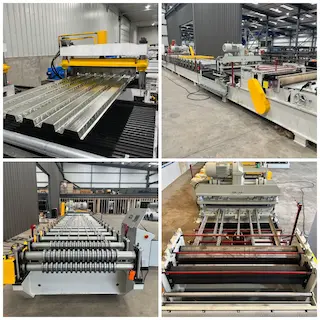

Heavy Gauge B Deck Composite Metal Deck Roll Forming Machine Toronto Canada

The Heavy Gauge B Deck Composite Metal Deck Roll Forming Machine is an industrial-grade roll forming system designed for manufacturing high-strength metal decking used in commercial and industrial construction projects. This machine is engineered to handle heavy-gauge steel, ensuring durability, precision, and efficiency in the production process.
For businesses in Toronto, Canada, investing in this machine offers several advantages, including local availability, compliance with Canadian construction standards, and optimized power configurations that match North American electrical systems.
Machine Description
This B Deck Roll Forming Machine is a high-capacity, heavy-duty system built to handle 18-gauge to 24-gauge steel coils, producing composite metal decking for structural and concrete support applications. The hydraulic shear cutting system ensures precision, while the 28 forming stations shape the material accurately to meet industry standards.
This roll forming machine is equipped with a 32HP motor, offering consistent power delivery and smooth operation. The chain drive and gearbox system provide the necessary torque for continuous and stable production, making it ideal for large-scale manufacturing.
Key Features of the Machine
High-Strength Material Processing

Capable of forming 18-gauge to 24-gauge steel with high precision.
Ideal for structural metal decking used in commercial and industrial buildings.

Robust Design and Heavy-Duty Frame

Machine weight: 20 tons, providing stability and durability.

85ft footprint, ensuring efficient production layout in a factory setting.

Powerful and Efficient Performance

32HP motor for high-speed production.

480V – 3 phase – 60 Hz power supply optimized for Canadian electrical infrastructure.

Advanced Forming Stations and Cutting Mechanism

28 forming stations ensure precise shaping of the metal deck profile.

Hydraulic shear cutting system for clean, burr-free cuts.

Flexible Drive System

Equipped with both chain drive and gearbox drive options for high torque transmission and durability.

Safety & Compliance

Optional safety covers available.

Emergency Stop (E-Stop) system for operator safety and compliance with Canadian regulations.
Why Choose This Machine in Toronto, Canada?
1. Local Availability and Support
Located in Toronto, making it easy for businesses to source spare parts, maintenance, and technical support.

Reduced shipping costs compared to importing from overseas.
2. Compliance with Canadian Construction Standards
Meets the requirements for structural steel decking in Canada.
Adheres to North American voltage (480V, 3 phase, 60Hz) for seamless integration into existing facilities.
3. High Production Efficiency
Capable of high-speed production with minimal downtime.
Ideal for large-scale metal deck production for Toronto's booming construction sector.
Question & Answer Section
Q1: What is a B Deck Composite Metal Deck Roll Forming Machine used for?
A B Deck Roll Forming Machine is used to manufacture composite metal decking, which provides structural support for concrete slabs in commercial and industrial buildings. It enhances the load-bearing capacity of floors and roofs.
Q2: What is the production capacity of this machine?
The exact speed depends on the material thickness and settings, but typically, this machine can produce 10 to 30 meters of decking per minute, making it ideal for large-scale production.
Q3: Can this machine handle galvanized steel?
Yes, this machine is designed to handle galvanized steel coils ranging from 18-gauge to 24-gauge, which are commonly used in construction.
Q4: What power supply does this machine require in Canada?
This machine operates on 480V – 3 phase – 60 Hz, which is the standard industrial voltage in Canada.
Q5: Is this machine suitable for a small workshop?
Due to its large footprint (85 feet in length) and 20-ton weight, it is best suited for mid-to-large-scale manufacturing facilities rather than small workshops.
Q6: What safety features does this machine have?
Emergency Stop (E-Stop) buttons are included for immediate shutdown.

Optional safety covers can be added to protect operators from moving parts.
Q7: How is the cutting process handled?
This machine uses a hydraulic shear cutting system, which provides precise, burr-free cuts with minimal material waste.
Q8: How does the chain drive and gearbox system work?
The machine includes both a chain drive and gearbox system, providing flexibility in power transmission while maintaining high torque and consistent operation.
Q9: What kind of maintenance does this machine require?
Regular maintenance includes:
Lubricating moving parts such as the chain drive and gearbox.

Inspecting the hydraulic shear cutting system for wear and tear.

Checking E-Stops and safety covers for compliance.
Q10: Where can I purchase this machine in Toronto?
You can purchase this machine from local industrial machine suppliers in Toronto, or through manufacturers specializing in roll forming equipment.
Conclusion
The Heavy Gauge B Deck Composite Metal Deck Roll Forming Machine is a high-performance, heavy-duty system that meets the demands of Toronto's growing construction industry. With precision forming stations, a powerful motor, and hydraulic shear cutting, this machine ensures efficient and reliable production of composite metal decking.
For manufacturers, contractors, and construction firms in Toronto, Canada, investing in this roll forming machine means high-quality deck production, compliance with local standards, and long-term operational efficiency.

Material Thickness: 18 gauge – 24 gauge
Machine Weight: 20 tons
Machine Footprint: 85 feet (length)
Main Power: 480V – 3 Phase – 60 Hz
Motor Power: 32 HP
Drive System: Chain Drive / Gearbox
Number of Stations: 28
Cutting System: Hydraulic Shear
Safety Covers: Optional
Emergency Stops: Included for Safety
