3 Composite Corrugated Metal Floor Decking Roll Forming Machine USA

The 3 Composite Corrugated Metal Floor Decking Roll Forming Machine is an advanced industrial system designed to manufacture high-strength metal floor decking panels for commercial, industrial, and residential construction. This machine is specifically designed to cater to the USA market, following the standard 480V – 3 Phase – 60Hz power supply requirements.
With high-speed operation, precision forming technology, and a robust hydraulic cutting system, this roll forming machine is an essential piece of equipment for steel fabricators, construction companies, and infrastructure projects.
Machine Description

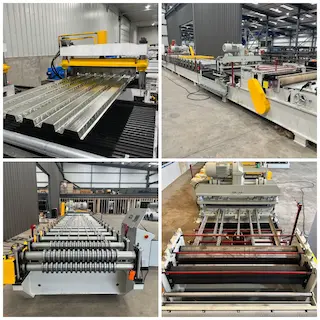

The 3 Composite Corrugated Metal Floor Decking Roll Forming Machine is a fully automated roll forming system that produces floor decking profiles used for composite floor systems in steel structures.
This machine is built for heavy-duty production, with a 20-ton weight and an 85ft footprint, ensuring stability during continuous operation. It is equipped with a chain drive or gearbox system, offering enhanced torque transmission and consistent profile accuracy. The hydraulic shear cutting system ensures clean, precise cuts while maintaining high production efficiency.
Additionally, the machine features 28 forming stations, guaranteeing optimal profile formation with uniform material thickness ranging from 18 gauge to 24 gauge. Optional safety covers and E-stops ensure operator safety, making this machine compliant with modern industrial safety standards.
Key Features of the 3 Composite Corrugated Metal Floor Decking Roll Forming Machine
Heavy-Duty Frame: Built for durability and longevity, capable of handling large production volumes.

High-Speed Production: Efficient roll forming process increases throughput, making it ideal for large-scale projects.

Precision Roll Forming: With 28 stations, the machine ensures uniform profile accuracy.

Hydraulic Shear Cutting System: Provides clean cuts with minimal material waste.

Customizable Drive System: Available with either chain drive or gearbox options.

Safety Features: Includes E-stops and optional safety covers for operator protection.

Standard USA Power Supply: Designed to operate on 480V, 3-phase, 60Hz, making it suitable for USA industries.
Applications
The 3 Composite Corrugated Metal Floor Decking Roll Forming Machine is used in steel deck construction projects, including:
High-rise buildings
Bridges and highways
Industrial warehouses
Commercial buildings
Parking garages
Infrastructure projects
Setup and Installation Process
Site Preparation

Ensure a stable, level foundation for machine installation.
Verify power supply compatibility (480V, 3-phase, 60Hz).

Machine Placement & Assembly

Install the machine in an 85ft workspace with adequate clearance.
Connect the chain drive or gearbox system and secure all components.

Power & Hydraulic Connection

Connect 32HP motor and ensure hydraulic shear cutting system is functional.
Perform test runs to check station alignment.

Safety Inspection & Calibration

Test E-Stops and optional safety covers.
Run test material (18g - 24g) to verify profile accuracy.

Production Start

Once calibrated, initiate full-scale production.
Monitor output quality and adjust stations as needed.
Maintenance & Troubleshooting
To ensure optimal performance, follow these maintenance steps:
Routine Maintenance
Daily: Clean rollers, check gear lubrication, inspect hydraulic shear.

Weekly: Inspect chain drive or gearbox for wear and proper alignment.

Monthly: Perform full safety check on E-Stops, sensors, and power connections.

Annually: Replace worn-out components and recalibrate machine settings.
Common Issues & Solutions
Issue
Possible Cause
Solution

Uneven Profile Formation
Misaligned Roll Stations
Recalibrate and align stations

Hydraulic Shear Not Cutting Properly
Low Hydraulic Pressure
Check and refill hydraulic fluid

Machine Not Starting
Power Supply Issue
Verify 480V - 3 Phase - 60Hz connection

Material Slippage
Improper Feed Tension
Adjust material feed system
Frequently Asked Questions (FAQ)
1. What types of metal can be used with this roll forming machine?
This machine is designed to work with galvanized steel, cold-rolled steel, and stainless steel within the 18g - 24g thickness range.
2. How fast can this machine produce decking panels?
Production speed depends on the motor power and material thickness, but it generally operates at 15-30 meters per minute.
3. Is the hydraulic cutting system automatic?
Yes, the hydraulic shear cutting system is fully automated, ensuring high-precision cutting with minimal waste.
4. Can this machine be customized for different profiles?
Yes, the roll forming system can be adjusted or retooled to produce different deck profiles based on project requirements.
5. Does this machine require a dedicated power source?
Yes, it requires a 480V - 3 Phase - 60Hz power supply, which is standard for industrial manufacturing in the USA.
6. What safety features are included?
The machine includes E-Stops and has optional safety covers for operator protection.
7. What kind of maintenance does this machine require?
Regular lubrication of moving parts.

Hydraulic system checks to ensure smooth cutting.

Roll station inspections for wear and alignment.
8. Can this machine be shipped and installed in any state in the USA?
Yes, it can be shipped and installed across all 50 states, provided proper power supply and installation space are available.
9. What is the expected lifespan of this machine?
With proper maintenance, this machine can last 15+ years, making it a valuable long-term investment.
10. What industries benefit the most from this machine?
Steel construction
Infrastructure projects
Bridge and highway decking
Commercial building contractors
Conclusion
The 3 Composite Corrugated Metal Floor Decking Roll Forming Machine is a high-performance, industrial-grade system designed for large-scale steel deck production in the USA market. With precision engineering, a hydraulic shear cutting system, and customizable safety options, this machine is a top choice for contractors and steel manufacturers.
If you're looking to increase efficiency and output in your metal deck production, this machine provides the reliability and performance needed to meet the demands of modern construction projects.

Material Thickness: 18 gauge - 24 gauge
Machine Weight: 20 tons
Machine Footprint: 85 feet
Main Power: 480V - 3 Phase - 60Hz
Motor Power: 32 HP
Drive System: Chain Drive / Gearbox
Number of Roll Stations: 28 Stations
Cutting System: Hydraulic Shear
Safety Features: Optional Safety Covers, E-Stops
