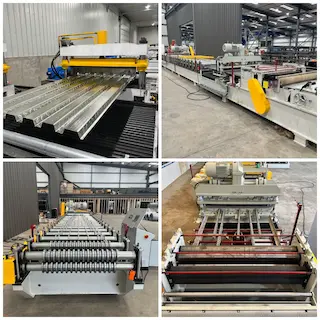

The 2" Deep Metal Decking Panel Roll Forming Machine is a specialized industrial machine designed for the high-volume production of 2-inch deep metal decking panels. These panels are widely used in the construction industry for flooring and roofing applications, particularly in commercial, industrial, and infrastructure projects. Engineered for reliability and precision, this machine is equipped with advanced features to ensure efficient operation, durability, and high-quality output. It is well-suited for manufacturing facilities in the United States, meeting local power and material requirements.
Key Features & Benefits
High-Precision Forming: With 28 forming stations, this machine ensures precise shaping of metal deck panels, maintaining structural integrity and uniformity.
Heavy-Duty Construction: Built with robust components, this 20-ton machine is capable of withstanding high-volume production.
Hydraulic Shear Cutting: Delivers clean, accurate cuts, reducing waste and improving efficiency.
Multiple Power Transmission Options: Can operate with either a chain drive or gearbox system to match different production needs.
Safety Enhancements: Optional safety covers and emergency stop (E-Stop) buttons ensure operator protection and compliance with workplace safety standards.
USA-Compatible Power Supply: Designed to run on 480V, 3-phase, 60Hz power, making it ideal for U.S. manufacturing facilities.
Large Footprint for Continuous Production: With an 85ft footprint, the machine is engineered for high-speed, long-run production of metal decking panels.
Applications of the 2" Deep Metal Decking Panel
Construction Industry: Used in commercial and industrial building structures for added strength and stability.
Bridge Decking: Provides enhanced load-bearing capacity for bridge construction projects.
Roof and Floor Systems: Offers structural integrity and fire resistance in multi-story buildings.
Mezzanine Decking: Commonly used in warehouses and industrial storage solutions.
Setup & Installation
Power Requirements: The machine must be connected to a 480V, 3-phase, 60Hz power source.
Foundation & Space: Requires a well-leveled concrete floor capable of supporting its 20-ton weight.
Alignment & Calibration: Proper alignment of the forming stations is necessary to ensure high-quality panel production.
Operator Training: Personnel should be trained in safety protocols and machine operation to maximize efficiency.
Maintenance & Troubleshooting
Regular Lubrication: Gearboxes and chain drives should be lubricated periodically to prevent wear and tear.
Blade Maintenance: The hydraulic shear cutting blade should be inspected and sharpened as needed.
Electrical System Checks: Ensure wiring, E-Stops, and power connections are in good condition.
Roller Inspection: Regularly inspect the rollers for any signs of wear or damage.
Question and Answer Section
Q1: What type of material can this machine process?
A1: The machine can process steel in the thickness range of 18-gauge to 24-gauge, commonly used for metal decking applications.
Q2: How fast can this machine produce decking panels?
A2: The production speed varies depending on the material thickness and setup but typically ranges from 30 to 50 feet per minute.
Q3: Does the machine require a dedicated foundation?
A3: Yes, due to its 20-ton weight and size, a stable concrete foundation is recommended to support the machine's operations.
Q4: What safety features does the machine have?
A4: The machine includes emergency stop (E-Stop) buttons, and optional safety covers can be added for enhanced operator protection.
Q5: Can this machine handle galvanized and coated steel?
A5: Yes, the machine is designed to process galvanized, coated, and plain steel sheets within the specified thickness range.
Q6: What is the expected lifespan of this roll forming machine?
A6: With proper maintenance, the machine can last over 10 years in a high-production environment.
Q7: Is technical support available for this machine in the USA?
A7: Yes, technical support and spare parts are available from manufacturers and suppliers within the U.S.
Q8: What are the power requirements for installation?
A8: The machine requires a 480V, 3-phase, 60Hz power connection, which is standard for industrial setups in the USA.
Q9: How easy is it to switch between different panel profiles?
A9: Profile changes require roller adjustment or replacement, which may take a few hours depending on operator experience and setup efficiency.
Q10: Can this machine be customized for specific production needs?
A10: Yes, customization options include additional stations, upgraded cutting systems, automated stacking, and digital PLC controls.
This 2" Deep Metal Decking Panel Roll Forming Machine is an ideal investment for metal decking manufacturers in the U.S. looking to enhance production efficiency, product quality, and operational safety.
Material Thickness: 18g - 24g
Machine Weight: 20 Ton
Machine Footprint: 85ft
Main Power: 480V - 3PH - 60Hz
Motor Power: 32 HP
Gearbox: Chain Drive / Gearbox
Roll Forming Stations: 28
Cutting Type: Hydraulic Shear
Safety Features: Optional Safety Covers, E-Stops
