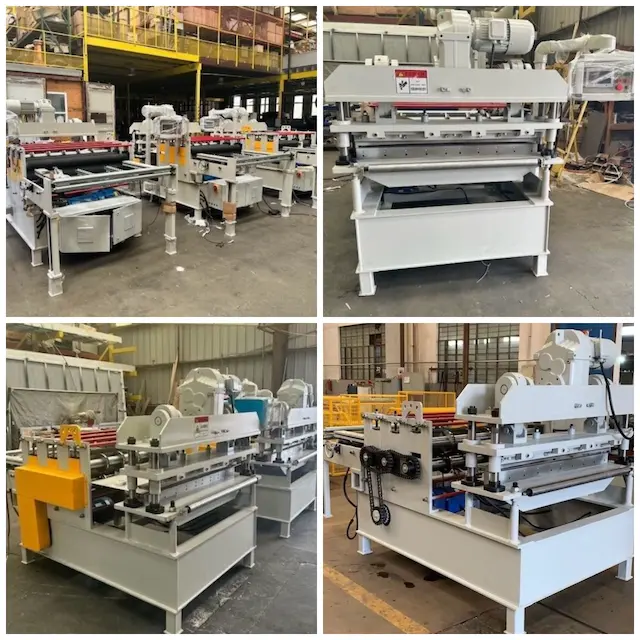

A coil blanking machine is an essential piece of equipment used in metal processing facilities for cutting flat metal sheets (blanks) from a coiled metal strip. This process ensures precision cutting and high productivity in various industries, such as automotive, construction, appliances, and fabrication workshops.
With advancements in electric slitting technology and CNC controls, modern coil blanking machines offer automated operations, improved accuracy, and increased production efficiency. In the USA, where the metal fabrication industry is booming, these machines play a crucial role in steel, aluminum, and stainless steel processing.
Machine Description
A coil blanking machine is designed to uncoil, level, cut, and stack metal sheets with high accuracy and repeatability. This machine is ideal for fabricators, roll forming companies, and metal sheet suppliers who require high-speed processing of steel or aluminum coils.
Key Features
Electric Slitter Technology – Ensures precise cutting with minimal burrs and high edge quality.
CNC Controls – Provides fully automated blanking, allowing operators to program different blank sizes and optimize material usage.
High-Speed Operation – Enhances production rates, reducing downtime and increasing throughput.
Heavy-Duty Construction – Built for durability, ensuring a long lifespan even in demanding industrial environments.
Safety Systems – Includes emergency stop buttons, protective guards, and overload protection.
Advantages of Using a Coil Blanking Machine in the USA
High Precision Cutting – CNC-controlled cutting ensures dimensional accuracy and minimal material waste.
Efficiency & Automation – Reduces manual labor, improving efficiency and lowering operational costs.
Supports Various Metals – Processes steel, aluminum, stainless steel, and galvanized sheets.
Complies with USA Electrical Standards – The 240V, 3-phase, 60Hz power supply is compatible with American industrial power systems.
Versatility – Customizable slitting widths and blanking sizes accommodate different production needs.
Improved Workplace Safety – Built-in safety mechanisms ensure secure operations and worker protection.
Industries That Use Coil Blanking Machines in the USA
Automotive Industry – Producing metal sheets for car panels, chassis, and structural components.
Construction Industry – Cutting roofing sheets, cladding panels, and building materials.
Appliance Manufacturing – Creating metal casings for refrigerators, ovens, and HVAC units.
Metal Fabrication Workshops – Processing metal sheets for various industrial applications.
Aerospace Industry – Manufacturing precision metal blanks for aircraft components.
Setup and Installation Process
Site Preparation – Ensure a stable factory floor with sufficient power supply (240V, 3-phase, 60Hz).
Machine Positioning – Secure the coil blanking machine on a level surface.
Power & Control System Setup – Connect the CNC control panel and ensure proper grounding for electrical safety.
Loading the Coil – Use a coil car or uncoiler to safely load the coil into the machine.
Programming the CNC – Set cutting parameters such as length, width, material thickness, and slitting width.
Test Run & Calibration – Perform initial blanking tests to confirm accuracy and cutting quality.
Maintenance & Troubleshooting
Regular Maintenance
Daily: Clean dust and metal debris from the slitter blades and blanking unit.
Weekly: Lubricate rollers, cutting blades, and moving parts.
Monthly: Inspect CNC controls and recalibrate cutting tolerances.
Annually: Replace worn-out blades and check the hydraulic & pneumatic systems.
Common Troubleshooting Issues
Issue
Possible Cause
Solution
Uneven Cutting Edges
Worn-out blades
Replace cutting blades
Machine Overheating
Insufficient lubrication
Check and refill oil levels
CNC Program Error
Incorrect input or software glitch
Reprogram CNC settings
Coil Feeding Issues
Coil misalignment
Realign coil and adjust guides
Power Fluctuation
Unstable 240V supply
Use a voltage stabilizer
Frequently Asked Questions (FAQs)
Q1: What materials can a coil blanking machine process?
A: It can process steel, aluminum, stainless steel, and galvanized metals, typically ranging from 0.3mm to 6mm thickness.
Q2: How does CNC control improve blanking operations?
A: CNC control allows for precise customization, automatic adjustments, and high repeatability, reducing material waste.
Q3: Can this machine work with standard USA power systems?
A: Yes, it operates on 240V, 3-phase, 60Hz, which is compatible with the USA’s industrial power supply.
Q4: What is the typical cutting speed of a coil blanking machine?
A: The cutting speed ranges between 20m/min to 60m/min, depending on the material type and thickness.
Q5: How often do I need to replace the cutting blades?
A: It depends on usage and material type. Typically, after 6-12 months of continuous operation, blade replacement is necessary.
Q6: Is training required to operate this machine?
A: Yes, training is recommended for CNC programming, machine operation, and safety procedures to maximize efficiency and prevent errors.
Q7: What safety features does this machine have?
A: It includes emergency stop buttons, overload protection, safety guards, and auto shut-off in case of abnormalities.
Q8: What industries benefit the most from coil blanking machines?
A: Industries such as automotive, construction, aerospace, HVAC, appliance manufacturing, and general metal fabrication benefit from these machines.
Conclusion
A coil blanking machine equipped with electric slitter technology and CNC controls is a valuable asset for metal processing businesses in the USA. With high precision, automation, and efficiency, this machine enhances production capabilities while ensuring minimal material waste. If you're looking for a reliable, high-performance coil blanking machine for your facility, make sure to choose one that meets USA's electrical and industrial standards (240V, 3-phase, 60Hz).
For more details on pricing, installation, and machine availability, feel free to contact us today!
Type: Electric Slitter Coil Blanking Machine
Power Supply: 240V, 3 Phase, 60Hz
Control System: CNC Controls
Material Capacity: Steel, Aluminum, Stainless Steel
Sheet Thickness: 0.3mm - 6mm
Max Coil Width: 1250mm - 1600mm
Slitting Width Range: Customizable
Cutting Speed: 20 - 60m/min (depending on material)
Stacking System: Automatic Stacking Conveyor
Safety Features: Emergency Stop, Overload Protection
Machine Weight: Varies by model (typically 10 - 20 tons)
