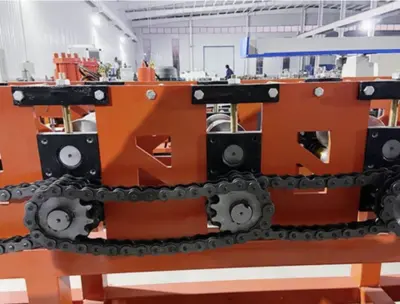

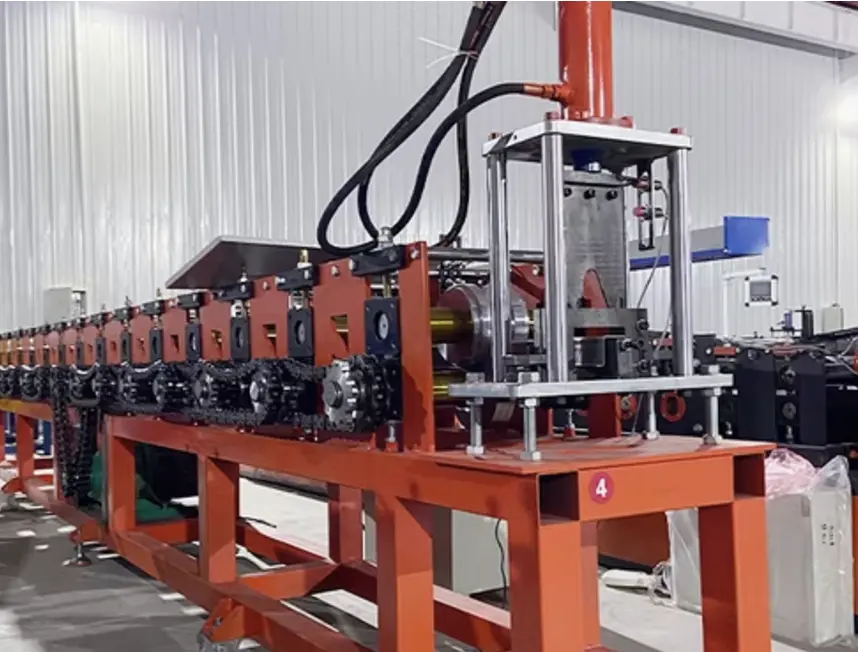

Hat Channel Roll Forming Machine in the USA

The Hat Channel Roll Forming Machine is designed to produce precise and durable hat channels used extensively in construction, particularly for ceiling grids, drywall framing, and various structural applications. These machines efficiently transform steel coils into high-quality hat channel profiles, ensuring accuracy, consistency, and efficiency in production. They cater to both standard and custom designs, supporting manufacturers in meeting diverse project requirements in the USA.
Advantages of Hat Channel Roll Forming Machines
High Precision: Consistent and accurate production of hat channel profiles.

Customizability: Supports a variety of sizes and designs tailored to project needs.

Durable Construction: Built with high-grade materials for long operational life.

Efficiency: High-speed production reduces lead time.

Energy Efficient: Advanced motors and optimized systems ensure minimal energy wastage.
Applications of Hat Channel Profiles
Ceiling suspension systems
Wall and roof framing
Electrical and plumbing support channels
Industrial and commercial construction
Automotive and transportation projects
Question and Answer Section
Q1: What is the primary use of hat channel profiles in the USA?
A1: Hat channel profiles are commonly used in the construction industry for drywall framing, ceiling grids, and structural reinforcements. They are preferred for their lightweight, strength, and ease of installation.
Q2: Can the Hat Channel Roll Forming Machine produce customized profiles?
A2: Yes, the machine is equipped to handle custom designs by modifying roller dies and punch configurations, catering to specific project requirements.
Q3: What is the delivery time for a Hat Channel Roll Forming Machine?
A3: Delivery typically ranges from 8–12 weeks, depending on the machine specifications and customization.
Q4: What maintenance is required for optimal machine performance?
A4: Regular lubrication of rollers, checking and tightening bolts, and cleaning the hydraulic system are essential for smooth operation. Annual calibration and inspection by professionals are recommended.
Q5: Is training provided with the purchase of the machine?
A5: Yes, most manufacturers or sellers, including Machine Matcher, offer training sessions for operators to ensure safe and efficient usage.
Q6: Are these machines compatible with the USA's power standards?
A6: Absolutely. Machines can be configured to work with 220V or 380V, 3-phase, 60Hz power supplies as per USA standards.
Q7: Can the machine be upgraded in the future?
A7: Yes, the modular design of the Hat Channel Roll Forming Machine allows for upgrades such as additional roller stations, advanced PLC systems, or automation features.

Material Compatibility
Materials: Galvanized Steel, Stainless Steel, Aluminum, Pre-painted SteelMaterial Thickness: 0.4 mm – 1.2 mm (16–28 gauge)Material Width: Adjustable to profile design
Materials: Galvanized Steel, Stainless Steel, Aluminum, Pre-painted Steel
Material Thickness: 0.4 mm – 1.2 mm (16–28 gauge)
Material Width: Adjustable to profile design
Machine Structure
Frame Material: Heavy-duty steel welded frameRoller Material: High-grade chromium-coated steel for durabilityRoller Stations: 14–20 stations (depending on the complexity of the profile)
Frame Material: Heavy-duty steel welded frame
Roller Material: High-grade chromium-coated steel for durability
Roller Stations: 14–20 stations (depending on the complexity of the profile)
Power and Control
Main Motor: 7.5–15 kW, depending on the machine sizeHydraulic Cutting System: 4–7.5 kWControl System: PLC-based with HMI for real-time adjustments and profile programmingPower Supply: 220V/380V, 3-phase, 60Hz (customizable for USA standards)
Main Motor: 7.5–15 kW, depending on the machine size
Hydraulic Cutting System: 4–7.5 kW
Control System: PLC-based with HMI for real-time adjustments and profile programming
Power Supply: 220V/380V, 3-phase, 60Hz (customizable for USA standards)
Machine Capabilities
Production Speed: 20–30 meters per minuteProfile Dimensions: Adjustable widths and heights (standard sizes: 25 mm x 20 mm, 40 mm x 20 mm, etc.)Cutting System: Hydraulic shear or flying cut-off for precision and speedPunching: Pre-punching system available for mounting holes
Production Speed: 20–30 meters per minute
Profile Dimensions: Adjustable widths and heights (standard sizes: 25 mm x 20 mm, 40 mm x 20 mm, etc.)

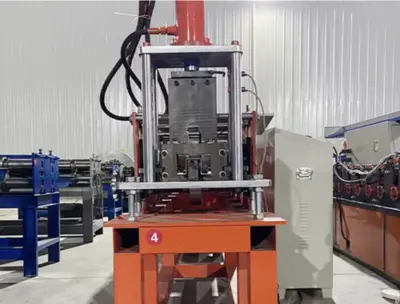

Cutting System: Hydraulic shear or flying cut-off for precision and speed
Punching: Pre-punching system available for mounting holes
Optional Add-ons
Automated stackers for easy profile handlingCoil car for seamless material loadingRemote PLC systems for operational flexibilityCustom punching dies for unique project requirements
Automated stackers for easy profile handling
Coil car for seamless material loading
Remote PLC systems for operational flexibility
Custom punching dies for unique project requirements
Dimensions and Weight
Machine Length: 8–15 metersWidth: 1.5 metersHeight: 1.6 metersWeight: 6–8 tons, depending on specifications
Machine Length: 8–15 meters
Width: 1.5 meters
Height: 1.6 meters
Weight: 6–8 tons, depending on specifications
