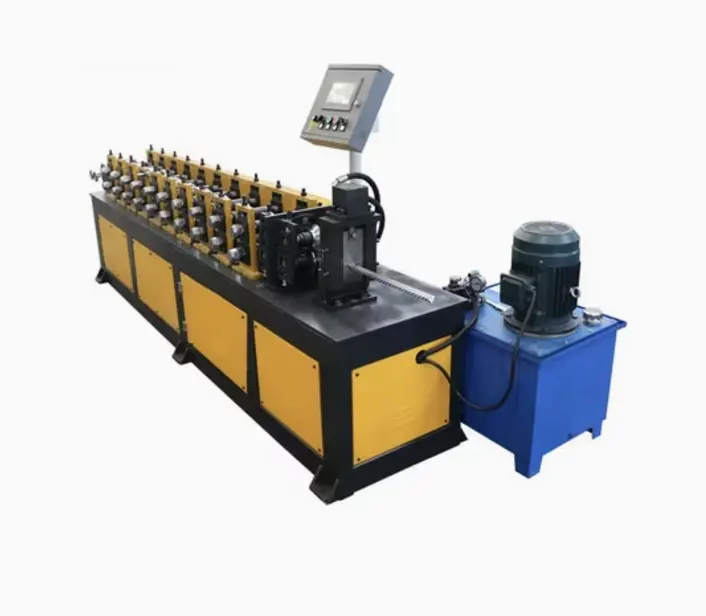

Square Metal Channel Roll Forming Machine in the USA

Square metal channel roll forming machines are essential in the metal fabrication industry, particularly for creating square metal channels used in various applications, such as framing systems, structural supports, and industrial shelving. This blog will cover the machine’s detailed description, specifications, and answer some frequently asked questions.
1. Machine Description
A square metal channel roll forming machine is a specialized industrial machine designed to produce square-shaped metal channels from a coil of metal. The machine uses a series of rollers that gradually shape the metal into the desired channel profile.
These machines are highly automated, allowing for precision and high-speed production. Equipped with advanced technology, they provide accurate shaping, cutting, and punching (if required) of the channels, ensuring consistency and minimal material wastage.
Key Features:
Automation: Fully automated system with PLC control for user-friendly operation.

Customization: Ability to produce square channels in various dimensions and gauges.

High Efficiency: Capable of producing up to 30-60 meters per minute, depending on the model.

Durability: Built with heavy-duty components to ensure long-term reliability.

Flexibility: Compatible with different materials, including galvanized steel, stainless steel, and aluminum.
2. Machine Specifications
Specification
Details

Material Thickness
0.6mm - 3mm (customizable based on client requirements)

Material Width
Varies according to the desired channel dimensions

Roller Material
High-grade steel (e.g., GCr15), hardened and polished

Number of Rollers
16-24 stations (varies depending on the profile complexity)

Roller Shaft Diameter
60mm - 90mm

Cutting Type
Hydraulic cutting system with servo motor for precision

Power Requirements
380V/50Hz (adjustable for USA standards)

Machine Speed
20-60 meters per minute

Control System
PLC system with touchscreen interface

Frame Material
Heavy-duty steel frame for enhanced stability

Profile Shapes
Customizable for square channels with exact dimensions

Optional Extras
Punching system, stacking system, uncoiler, and recoiler
3. Frequently Asked Questions
Q1: What industries use square metal channels?
Square metal channels are commonly used in construction, automotive, industrial shelving, solar mounting systems, and framing systems for windows and doors.
Q2: What materials can the machine process?
The machine can handle materials like galvanized steel, stainless steel, cold-rolled steel, and aluminum. It supports various gauges based on the required application.
Q3: How customizable is the machine?
The machine can be customized to produce channels of specific widths, heights, and thicknesses. Optional features like punching, embossing, or additional stacking systems can also be integrated.
Q4: Is the machine compatible with USA power supply standards?
Yes, the machine is designed to accommodate USA power standards (typically 220V or 480V, 60Hz) upon request.
Q5: What is the maintenance requirement?
Regular maintenance includes lubrication of moving parts, inspection of rollers for wear and tear, and ensuring the hydraulic system is functioning correctly. Routine maintenance schedules are recommended to extend the machine's life.
Q6: Can the machine handle high production volumes?
Yes, the machine is capable of producing high volumes efficiently, making it ideal for large-scale production facilities.
Q7: What is the typical cost of a square metal channel roll forming machine?
The cost ranges from $50,000 to $150,000, depending on the specifications, optional features, and brand. Delivery and customization may influence the final price.
Conclusion
The square metal channel roll forming machine is a robust, efficient, and customizable solution for manufacturing square metal channels in high volumes. With its advanced features, precision engineering, and adaptability to USA standards, this machine is a valuable asset for businesses in the metal fabrication industry.
If you’re considering purchasing a square metal channel roll forming machine, feel free to reach out with your specific requirements to ensure the machine meets your production needs.
