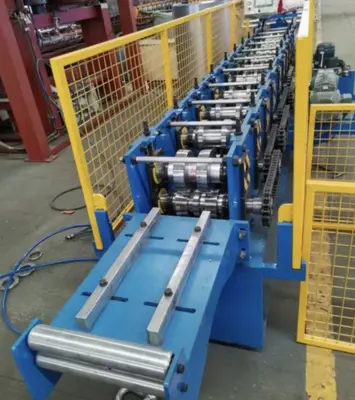

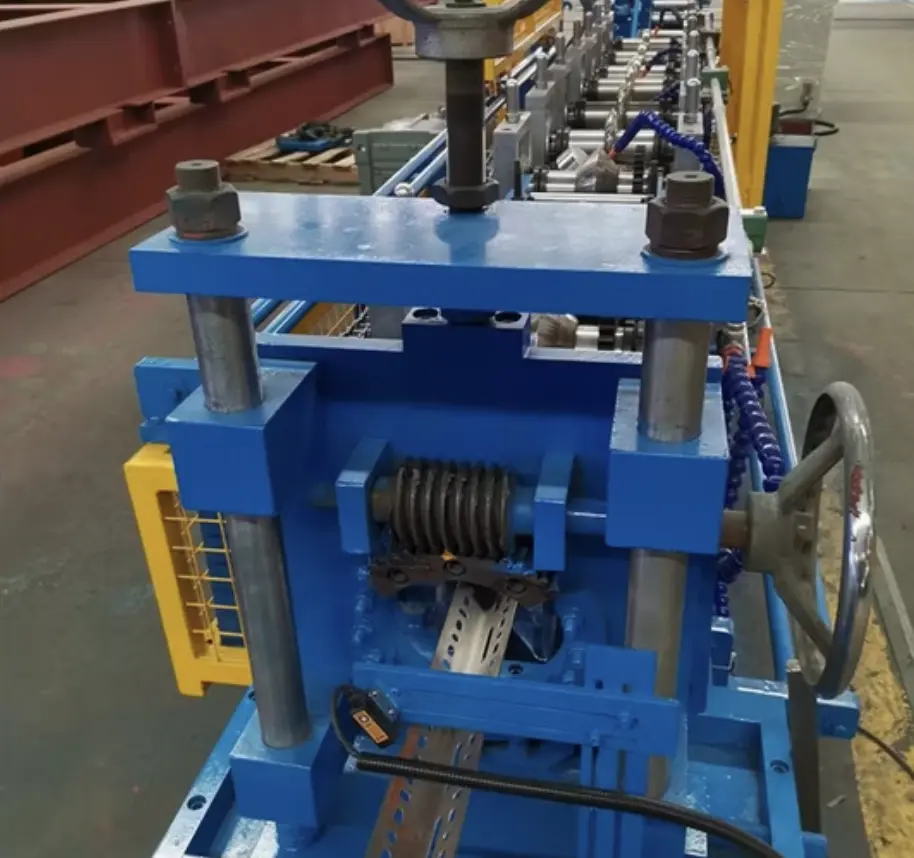

An angle corner bead roll forming machine is a specialized industrial machine used to produce corner beads, which are essential components in drywall construction for creating clean, durable, and reinforced edges on external corners. These machines are widely used in the construction and interior design industries, offering high efficiency, precision, and consistent quality in the production process.
The machine can process various materials like galvanized steel, stainless steel, or aluminum to produce corner beads in different profiles and sizes. These profiles typically feature perforations for better adhesion to plaster or drywall. Angle corner bead roll forming machines are equipped with advanced control systems, robust construction, and high-speed production capabilities, making them a valuable asset for manufacturers.
Frequently Asked Questions (Q&A)
Q1: What industries typically use corner bead roll forming machines?
A: Corner bead roll forming machines are commonly used in construction, drywall manufacturing, and interior design industries for producing high-quality corner beads to reinforce and protect external corners in drywall and plaster applications.
Q2: Can the machine handle different profiles and sizes?
A: Yes, the machine can be configured to produce various corner bead profiles with adjustable widths and lengths. The PLC system allows easy adjustments for different specifications.
Q3: Is it possible to customize the machine to local power requirements?
A: Absolutely. The machine's power system can be tailored to match country-specific voltage and frequency standards, such as 380V/50Hz or 440V/60Hz.
Q4: Does the machine include a perforation system?
A: A perforation system is an optional feature. It can be integrated into the machine for creating precise holes or slots in the corner beads for better plaster adhesion.
Q5: What is the typical maintenance requirement for this machine?
A: Regular maintenance includes lubricating moving parts, cleaning the rollers, checking and tightening bolts, and inspecting the hydraulic system for leaks. Detailed maintenance guidelines are provided in the user manual.
Q6: How long does it take to install and set up the machine?
A: Installation and setup typically take 2–3 days, depending on the complexity of the production line and the availability of utilities. Technical support is usually provided by the manufacturer.
Q7: What safety features are included in the machine?
A: The machine is equipped with safety guards, emergency stop buttons, and automatic power-off systems to ensure operator safety during operation.
Q8: What are the advantages of using this machine?
A: Key advantages include high-speed production, precision in shaping, consistent quality, low material wastage, and adaptability to various material types and thicknesses.
Material Compatibility:Materials: Galvanized steel, aluminum, stainless steelThickness: 0.3 mm to 1.0 mmWidth of Raw Material: 50 mm to 200 mm
Materials: Galvanized steel, aluminum, stainless steel
Thickness: 0.3 mm to 1.0 mm
Width of Raw Material: 50 mm to 200 mm
Roller System:Roller Material: GCr15 steel with hard chrome platingNumber of Roller Stations: 12–20 stations (depending on profile complexity)Roller Shaft Diameter: 60 mm
Roller Material: GCr15 steel with hard chrome plating
Number of Roller Stations: 12–20 stations (depending on profile complexity)
Roller Shaft Diameter: 60 mm
Cutting System:Type: Hydraulic cutting or servo motor-controlled cuttingMaterial of Blades: Cr12MOV steel, heat-treatedCutting Accuracy: ±0.5 mm
Type: Hydraulic cutting or servo motor-controlled cutting
Material of Blades: Cr12MOV steel, heat-treated
Cutting Accuracy: ±0.5 mm
Machine Frame:Structure: Heavy-duty steel frameFrame Thickness: 18 mmCoating: Powder-coated for corrosion resistance
Structure: Heavy-duty steel frame
Frame Thickness: 18 mm
Coating: Powder-coated for corrosion resistance
Power System:Main Motor Power: 7.5 kW to 11 kWHydraulic Motor Power: 5.5 kWVoltage: Customized to country requirements (e.g., 380V/50Hz or 440V/60Hz)
Main Motor Power: 7.5 kW to 11 kW
Hydraulic Motor Power: 5.5 kW
Voltage: Customized to country requirements (e.g., 380V/50Hz or 440V/60Hz)
Control System:Type: PLC (Programmable Logic Controller) with touch screenBrand: Siemens, Mitsubishi, or DeltaFunctions: Length adjustment, production speed control, fault diagnostics
Type: PLC (Programmable Logic Controller) with touch screen
Brand: Siemens, Mitsubishi, or Delta
Functions: Length adjustment, production speed control, fault diagnostics
Production Speed:Range: 15–25 meters per minute (adjustable)
Range: 15–25 meters per minute (adjustable)
Optional Extras:Perforation System: In-line punching or perforation diesUncoiler: Manual or hydraulic (5-ton or 10-ton capacity)Stacker: Automatic stacking system for finished productsRemote Monitoring System: Internet-enabled PLC for remote diagnostics and control
Perforation System: In-line punching or perforation dies
Uncoiler: Manual or hydraulic (5-ton or 10-ton capacity)
Stacker: Automatic stacking system for finished products
Remote Monitoring System: Internet-enabled PLC for remote diagnostics and control
Machine Dimensions:Length: 8–12 metersWidth: 1.2–1.5 metersHeight: 1.5–2 meters
Length: 8–12 meters
Width: 1.2–1.5 meters
Height: 1.5–2 meters
Weight:Total Machine Weight: 6–8 tons
Total Machine Weight: 6–8 tons
