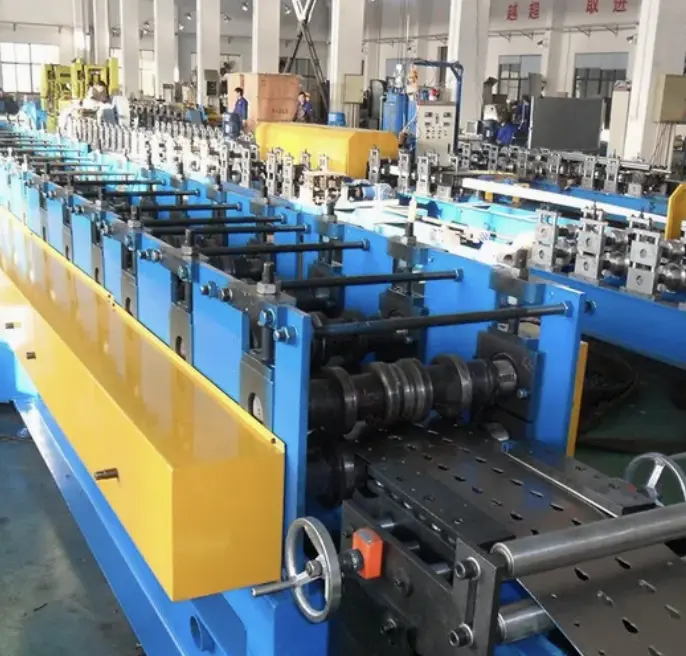

A pallet racking roll forming machine is designed to manufacture the frames, beams, and other structural components used in pallet rack storage systems. Here’s an overview of its specifications and description:
Description
The pallet racking roll forming machine is a fully automated system designed for high-precision production of pallet racking components. It processes steel coils and forms them into the desired rack profiles through a series of rollers. The machine includes a decoiler, leveling device, roll forming system, hydraulic cutting system, and an output table.
Key Features:
Automated Operation: PLC-based control allows operators to set desired lengths, quantities, and profile designs.
High Precision: Ensures uniformity in all produced profiles, meeting strict industry standards.
Customization: Adjustable rollers and customizable settings to produce various profiles, from light to heavy-duty racking.
Durability: Built with high-quality materials, ensuring longevity and consistent performance under heavy-duty operation.
Safety Features: Includes safety guards, emergency stop, and other protective elements to ensure operator safety.
This machine is ideal for manufacturers of warehouse storage systems who require large-scale production of pallet racking with consistent quality and precision.
Material Type:Steel (typically cold-rolled, galvanized, or stainless steel)
Steel (typically cold-rolled, galvanized, or stainless steel)
Material Thickness:Usually between 1.5 mm to 4 mm, depending on the rack load-bearing requirements.
Usually between 1.5 mm to 4 mm, depending on the rack load-bearing requirements.
Material Width:Varies based on design, typically between 100 mm to 600 mm.
Varies based on design, typically between 100 mm to 600 mm.
Forming Speed:10-20 meters per minute (adjustable)
10-20 meters per minute (adjustable)
Production Capacity:8-12 tons per day, based on material thickness, design complexity, and machine configuration.
8-12 tons per day, based on material thickness, design complexity, and machine configuration.
Roller Stations:Typically 14-24 forming stations for accurate shaping and consistency.
Typically 14-24 forming stations for accurate shaping and consistency.
Power Supply:380V, 50 Hz, 3 Phase (customizable to match local standards)
380V, 50 Hz, 3 Phase (customizable to match local standards)
Hydraulic Cutting System:Automated cutting system for precise length cutting with minimal material waste.
Automated cutting system for precise length cutting with minimal material waste.
Control System:PLC control for automation and easy operation; often includes a touch screen interface for adjusting parameters.
PLC control for automation and easy operation; often includes a touch screen interface for adjusting parameters.
Drive Motor:15-30 kW depending on production requirements.
15-30 kW depending on production requirements.
Rollers Material:High-grade steel, heat-treated for durability.
High-grade steel, heat-treated for durability.
