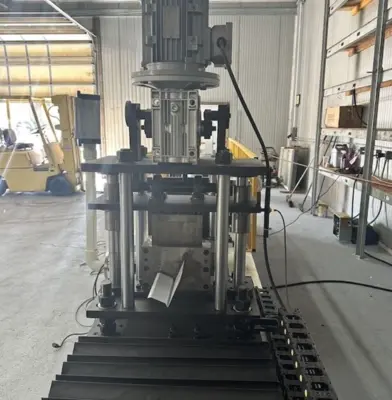

Galvanized Steel Drip Edge Roll Forming Machine – Connecticut

Galvanized Steel Drip Edge Roll Forming Machine – Connecticut, USA
Overview

The Galvanized Steel Drip Edge Roll Forming Machine is a high-speed, electric-powered solution designed for precision production of drip edge flashing profiles. Located in Connecticut, USA, this machine is custom-built to meet the growing demand of commercial roofing contractors, metal fabricators, and building product suppliers in the Northeastern United States. Built for durability, reliability, and consistent output, this machine supports multiple drip edge styles and sizes with fast, efficient throughput—ideal for operations that require both versatility and performance.
Machine Description

Engineered for continuous production, this roll forming machine features 10 forming stands, ensuring accurate bends and consistent profile integrity. Its electric shear system provides clean, on-demand cuts without stopping the machine, maximizing efficiency. The equipment runs on 240V three-phase power (60 Hz) and is capable of reaching speeds of 80 feet per minute, making it suitable for high-output manufacturing environments.
The machine’s compact footprint—18ft (L) x 3ft (W) x 5ft (H)—makes it a perfect fit for medium-sized workshops or industrial settings. At 2,500 lbs, it's built for stability during operation while remaining transportable for relocation within facilities if needed.
Questions & Answers
Q: Can this machine produce multiple drip edge sizes?

A: Yes, this machine supports multiple face heights and overhang widths. Custom tooling can also be created for unique profile designs.
Q: What materials can I use with this machine?

A: The machine is optimized for galvanized steel but can also handle aluminum and copper, depending on thickness and material type.
Q: Can the machine be shipped to other U.S. states or internationally?

A: Yes. Although this listing is specific to Connecticut, machines can be shipped throughout the U.S. and worldwide.
Q: Is training included with the purchase?

A: Machine Matcher offers setup and adjustment support. Training can be arranged during installation or via remote support.
Q: Can I request modifications to suit a specific profile or material?

A: Absolutely. Machines are custom-built based on your profile drawing, material type, and production needs.
Q: What optional extras are available?

A: Options include automated uncoilers, coil cars, stackers, remote PLC systems, and more depending on your production setup.
Contact Us

Machine Matcher offers a full range of roll forming equipment and services. To receive a tailored quote for this Galvanized Steel Drip Edge Roll Forming Machine or to explore other machines, email your requirements and profile drawings to [email protected]. We’re here to match you with the right machine for your operation.

Machine Weight: 2,500 lbs
Dimensions: 18 ft (L) x 3 ft (W) x 5 ft (H)
Power Supply: 240V / 3-phase / 60 Hz (electric)
Speed: Up to 80 feet per minute
Forming Stands: 10
Cutting System: Electric shear
Material Capability: Galvanized steel (and other materials)
Location: Connecticut, USA
Profiles: C5, C6, F4, 90-Degree, D Style, FHA, and customer-specified designs
Standard Face Heights:
1 1/2-inch (F5)
2-inch (F6)
2 1/2-inch (F7)
3-inch (F8)
3 1/2-inch (F9)
4-inch (F10)
1 1/2-inch (F5)
2-inch (F6)
2 1/2-inch (F7)
3-inch (F8)
3 1/2-inch (F9)
4-inch (F10)
Common Overhang Widths:
1 1/4 inches
1 1/2 inches
2 inches
2 1/2 inches
3 inches
1 1/4 inches
1 1/2 inches
2 inches
2 1/2 inches
3 inches
Material Thicknesses (Gauge):
0.019" (standard for aluminum)
0.024" (heavier-duty)
0.032" (commercial-grade)
0.019" (standard for aluminum)
0.024" (heavier-duty)
0.032" (commercial-grade)
Compatible Materials:
Galvanized Steel (primary material)
Aluminum
Copper
Galvanized Steel (primary material)
Aluminum
Copper
Commercial and Residential Roofing
Sheet Metal Fabrication
Building Envelope Solutions
Gutter and Flashing Manufacturing
Metal Roofing Product Supply Chains
