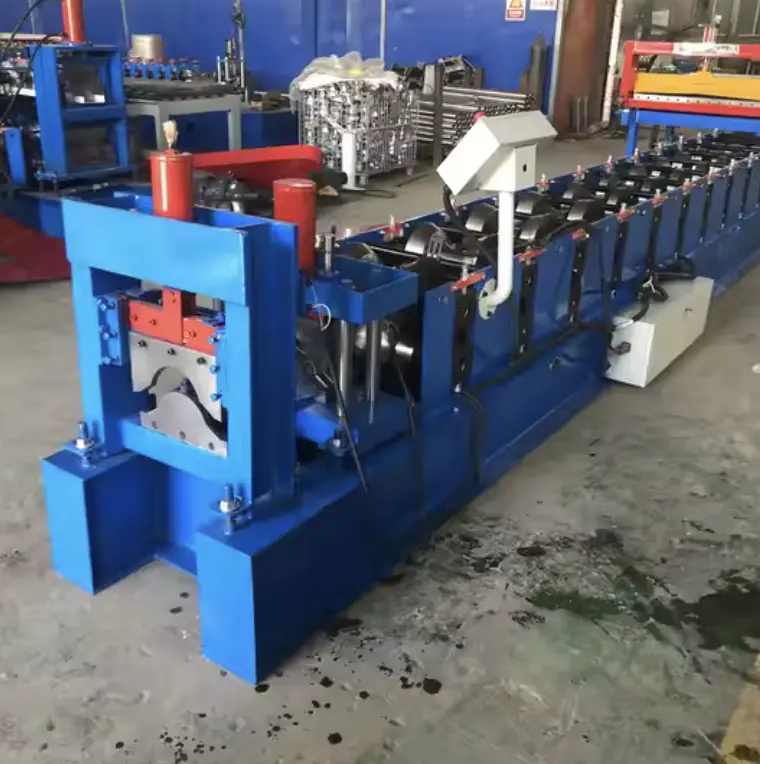

We can supply Capping roll forming machines to your specific profile
No.
1
Suitable material
color steel sheet, galvanized steel sheet, aluminium sheet
2
Material width
as your required
3
Material thickness
0.3-0.8 or as your required
4
Working speed
8-12m/min, can be 20-25m/min
5
Main motor power
4kw with cycloidal with reducer
6
Hydraulic pump power
4kw
7
Electrical control system
PLC control system with inverter
8
Shaft diameter
75mm
9
Roller station
15 rows, depend on your panel profile drawing
10
Roller
high grade 45# steel, hard chrome plating
11
Working time
24 hours
12
workers
1-2 only
13
Cutting head material
Cr 12 mould steel with quenched treatment
14
Voltage
380V 3Phase 50Hz or as your required
15
Weight
3.5T
16
The machine size
7000mm*1500mm*1500mm
