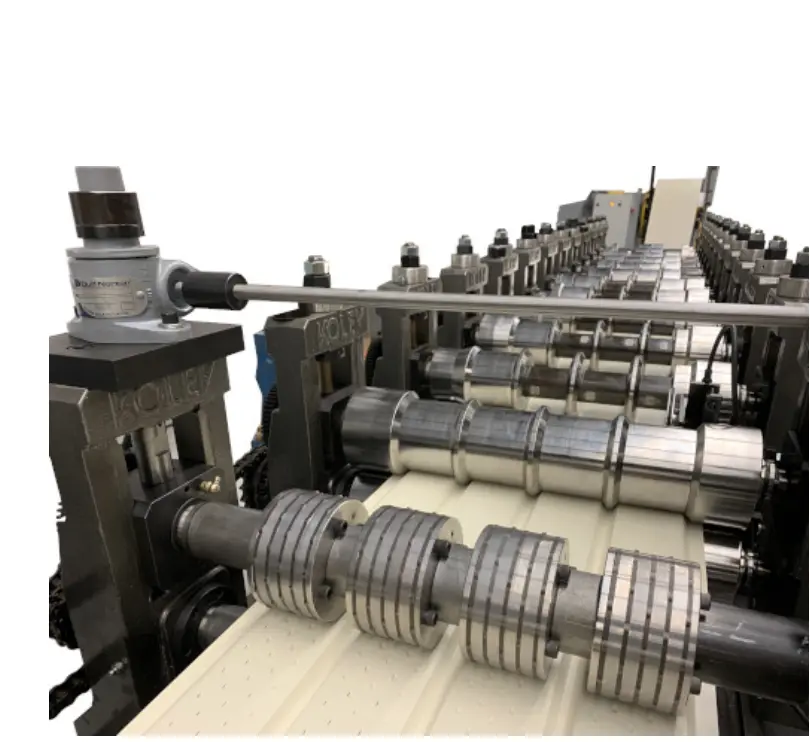

14 Pass Soffit Line Roll Forming Machine in Ontario, Canada

Heavy-duty base for 14 passes, welded structure I beam with machined surface
Entry guide – manual adjustment on precision linear guides
Shaft Diameter – 1.5” x 3/8 keyway
2 gear reducers, Cone drive
Chain drive all bottom shafts
Bottom to top shafts drive – gears to designated passes
Horizontal distance – 12 3/4”
Vertical Distance – 4.5” – 6.5”
Roll tooling space – 20”
Encoder fixture
Working speed 120fpm
Drive: 10HP AC motor, 1800 rpm, 575V, 3ph, VFD drive, and control panel for the roll former, plug and play
Lansing station for ventilation holes Pass #14
