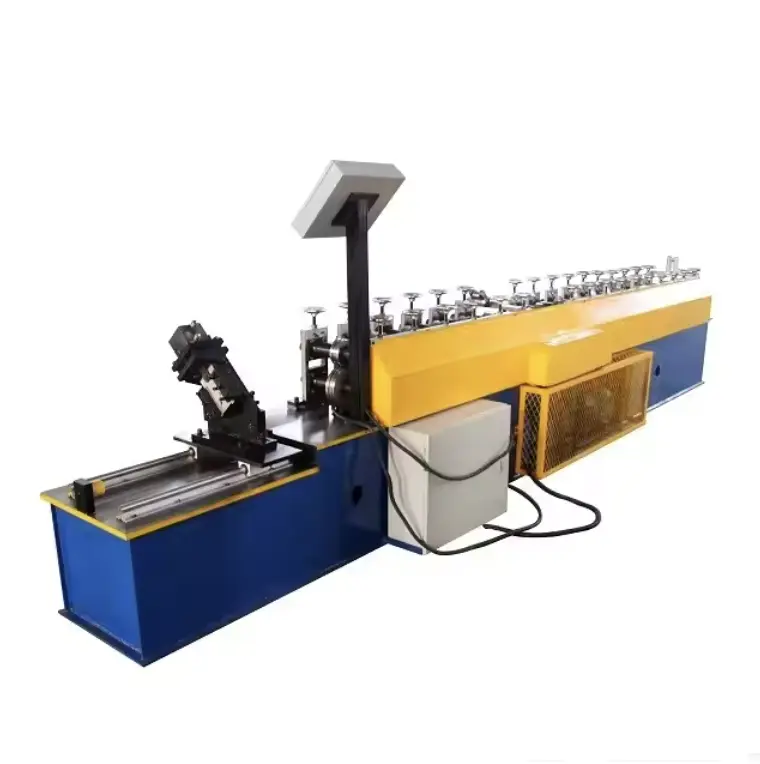

Ceiling T-Bar Roll Forming Machine in the USA

Forming device

1)Shaft material:high grade No.45 steel after treatment
2) Out diameter: 50 mm
3)Roller material: Cr12 polished and coated with chrome HRC55-60°
4)Forming speed:30m/min
5)Main motor power:5.5 kw
6)Roller station:10-12stations
7)Voltage:380v,50Hz,3 phase
8)Main frame structure: memorial arch structure
9)Control device:automatic cumputer control ,by PLC,operate easily
10)Cutting device: hydraulic tracking cutting(you can also request to add
a servomotor,the production speed can be reached 40-60m/min)
11)Transmission: gear drive

Hydraulic cutter

1). material of blade: Cr12 mould steel with quenched treatment 55-60°C
2). cutting system: adopt advanced hydraulic drive, after forming automatic
cut, no distort, no wasting , high safe factor.(main motor stop cutting)

Control system

Type: PLC Frequency Control System with touch screen
Length Error: ±2mm
(about the electrical apparatus element ,customers also can specify the brand)

Outpur table

It is simple and used to load finished product.
Length:6m
