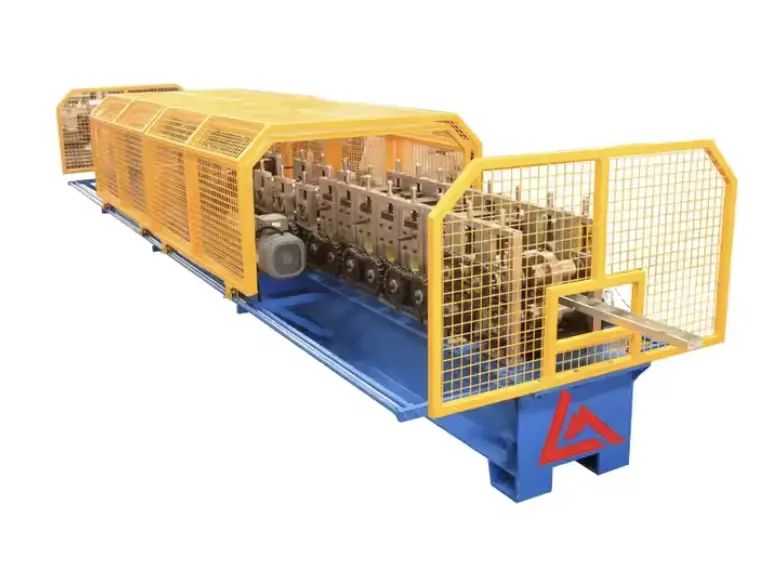

C Channel Roll Forming Machine in the USA

Type
Roll former for C PURLINE

Thickness
0.3mm-1.5mm

Frame Design
Wall-plate-frame-design /New-stand-frame-design

Roll Stages
14 stages

Material Of Forming Roller
GCr15, CNC lathes, Hard Chrome Coated

Shafts Diameter
Φ75mm

Main Motor Power
11KW

Max. Line Speed of Roll Former
12 /min (Higher speed is available, depends on the specification required by the buyer)

Hydraulic Group Power
7.5 KW

Material of Cutting Blade
Cr12, hear treatment

Electric Standard
380V /50Hz/3PH or as per customer's requirements

Machine Dimensions
6420mm×1020mm×1380mm (estimated only)
