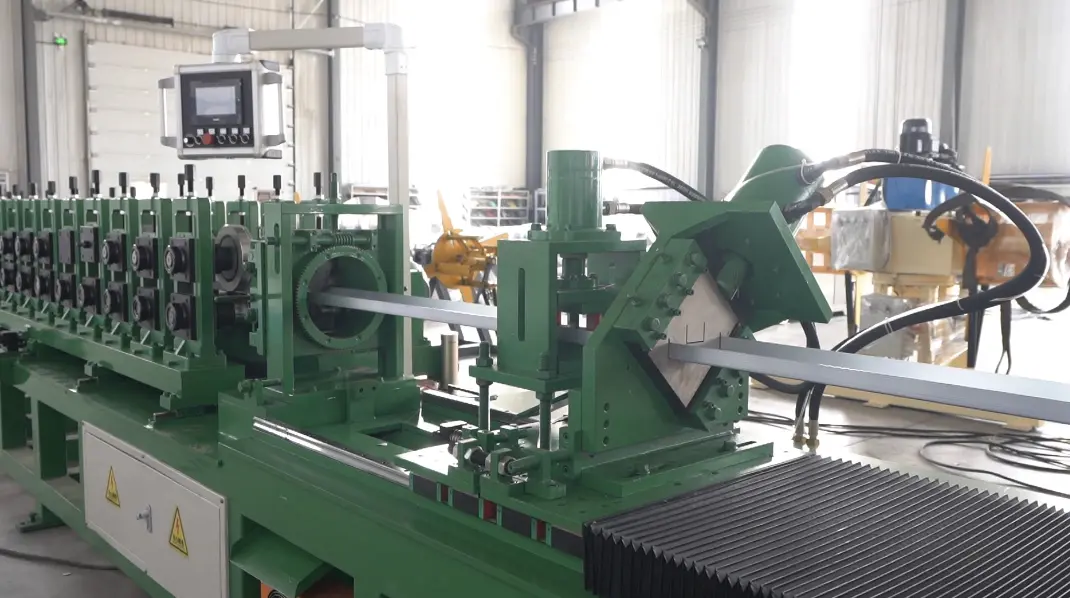

C Channel Roll Forming Machine in Algeria

GI,GL
0.47-0.8mm

Hydraulic decoiler
Electric double head decoiler

Roller station
19 rows ( As technical requirements )

Diameter of shaft
50mm solid shaft

Material of rollers
45# steel, hard chrome plated on the surface

Machine body frame
Metal steel welded

Drive
Gearbox transmission

Dimension ( L × W × H )
5500 × 800 × 1200 mm ( According to the goods )

Weight
About 7 tons

Automatic
Cr12MoV material, no scratches, no deformation

Motor power
11kW × 2 sets, with 3 more sets linear motors

Hydraulic system power
Energy tank with the power of 11kW

380V/50Hz/3Phases
As customer requirements

Electric control cabinet
Rocker arm typr or cabinet type

Language
Chinese/English/Spanish/French or customized

PLC
Delta/Siemens/Mitsubishi, optional

Control system
Automatic ciontrol production of the whole machine. Can set batch, length, quantity, etc.

70m/min(customized)
Speed is adjustable according to customer's request
