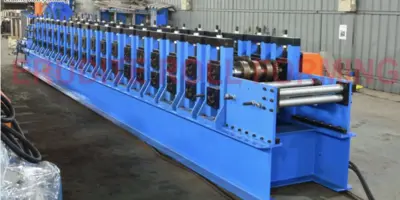

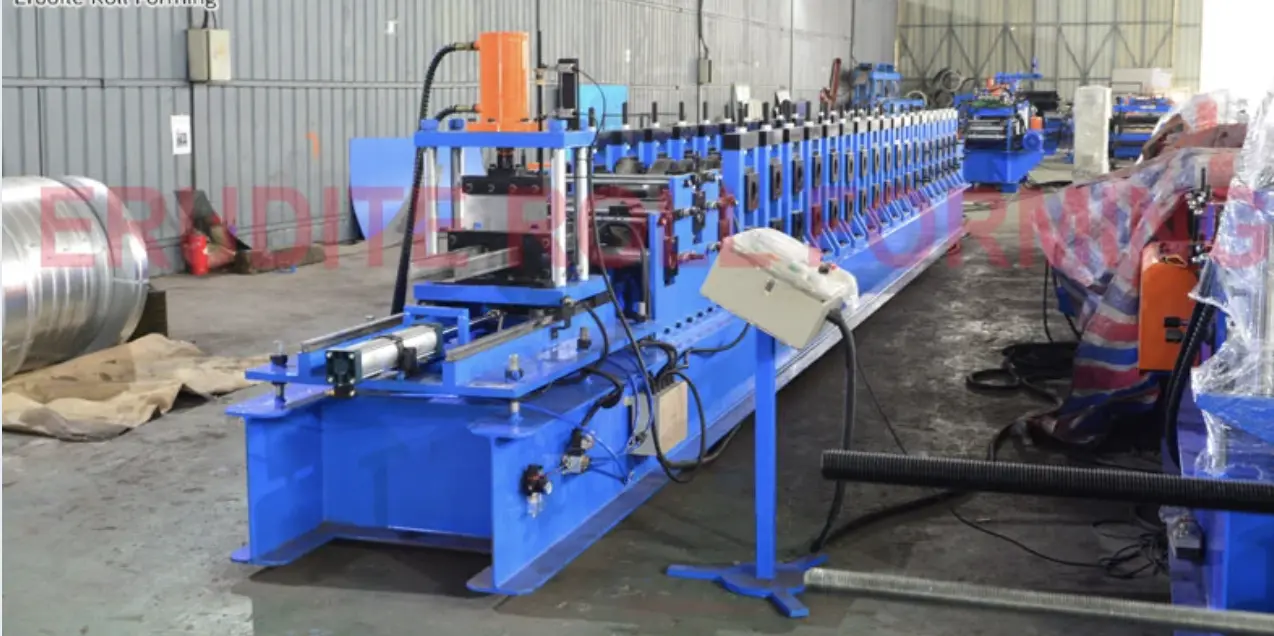

C Purlin Roll Forming Machine in El Salvador

(1) 5Tons un-coiler

Description
There are different choices, please turn to the catalogue of un-coiler

(2) Simple pre-leveling device

Frame design
Powered feed in/feed out rollers,4 over 3 shafts

Motor power
7.5KW

(3) Pre-punching device

Punch single hole on web, double holes on web
Punch double holes on flanges

Motor power
5.5KW

(4) The general machine parameter

Suitable roll forming material
Galvanized

Thickness
3-4mm

Feeding width
285/255mm

Frame design
Stand-frame-design

Roll stages
18 stages

Material of forming roller
Cr12, CNC lathes, heat treatment

Shafts Diameter
Φ95mm

Main motor power
18.5KWx2, frequency speed control

Max. Line speed of roll former
12m/min (Higher speed is available, depends on the specification required by the buyer)

Hydraulic group power
22KW

Material of cutting blade
Cr12Mov, heat treatment

Electric Standard
380V /50Hz/3PH or as the customer's requirements

Major Color of Machine Painted
RAL5015 (Blue) or as per customer's requirements

(5) PLC Control system

PLC
Siemens brand

Touch Screen
Siemens brand

Inverter
Shihlin
