Auto Change Purlin Roll Forming Machine in Shaoxing City, China

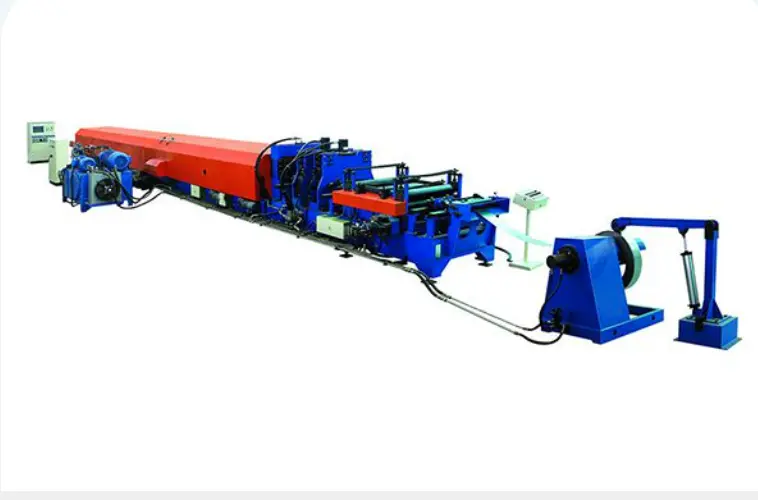

C&Z changeable purlin roll forming machine can produce both Cee and Zee profiles in one machine, and it can quick change the profiles automatically without replacing rollers. And there is a display screen shows the specification changing. In mass production, the PLC controls the processes of vertical punching, cutting, and roll forming automatically.
Item
Parameters

Profile
C and Z purlin

Material
Type
Steel strip

Thickness
Yield strength: 230-300(Mpa)
1.6-3.2mm

Yield strength: 300-350(Mpa)
1.6-2.6mm

Max. Forming speed
30

Roller material
D2

Roller driven type
Motor or Hydraulic

Controller
PLC

Hydraulic system pressure(Mpa)
20

Total power(KW)
65

Total weight(KG)
About 18000
