PRECITEC Robotic Laser Welding Head w/ Camera & Encoder NEW

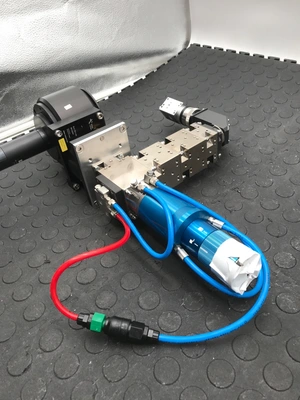

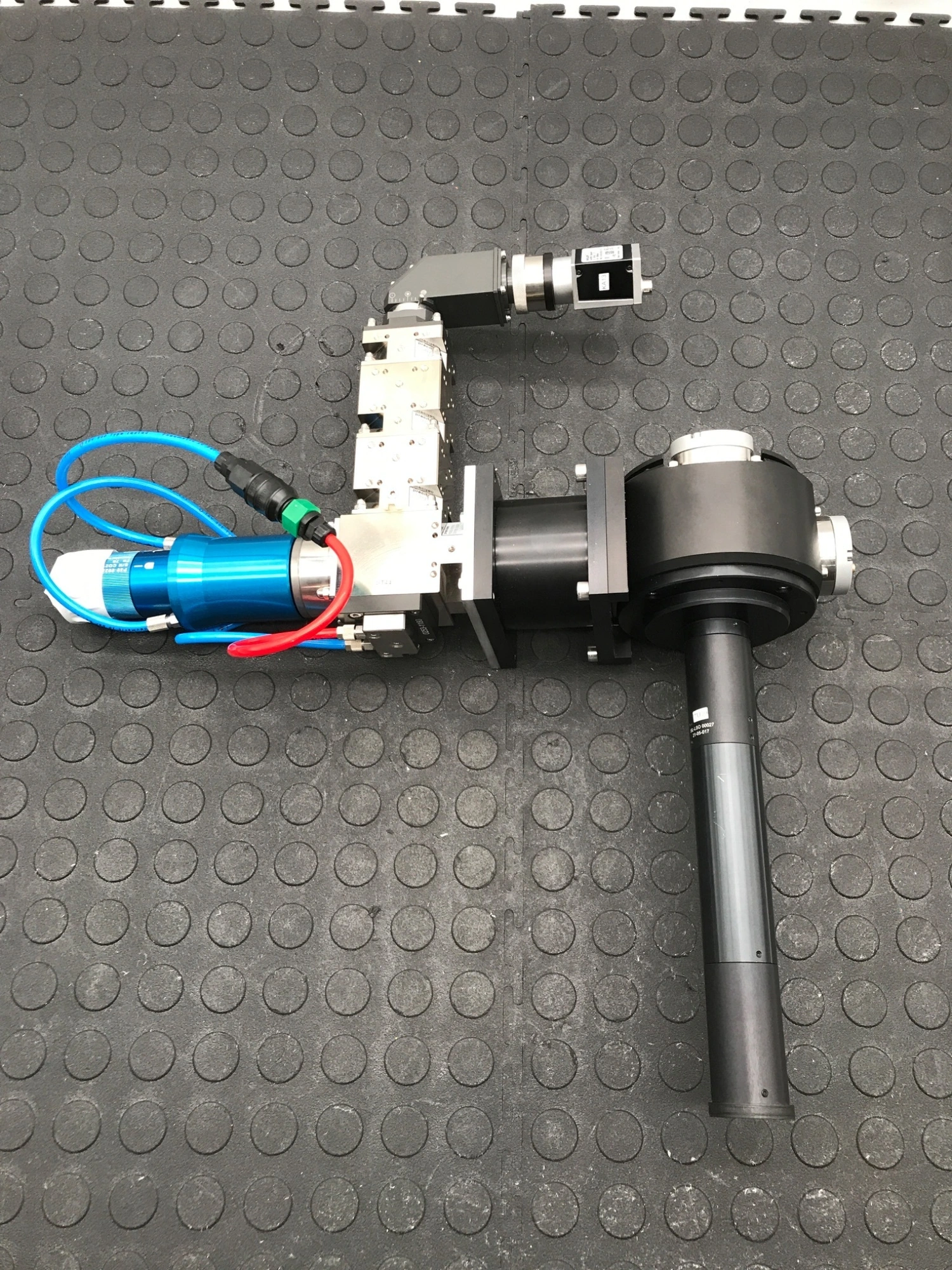

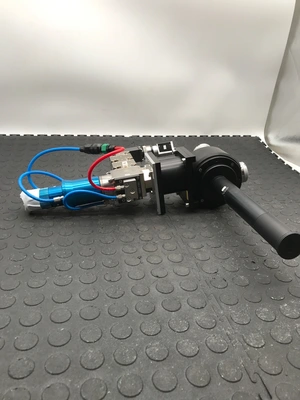

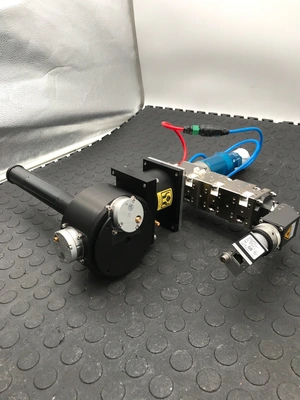

This is a new industrial laser head assembly, manufactured by Precitec, incorporating a Basler industrial camera, Newson 3G digital actuators, and SMC pneumatic shutter & exhaust valves. This laser head is designed for robotic and automated laser welding applications, and is commonly integrated into laser workcells and robotic systems used in industrial manufacturing. The assembly is typically deployed in systems utilizing industrial robots from manufacturers such as FANUC, KUKA, and Universal Robots (UR). The unit shows no evidence of installation and has never been placed into service.

*Compatibility with specific robot models and controllers is application‑dependent and should be verified by the system integrator prior to installation.

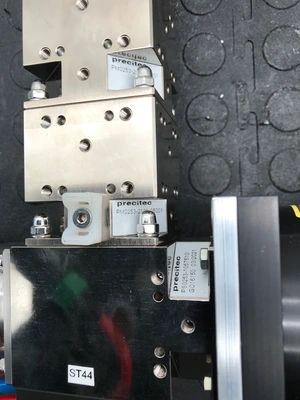

1. Core Optical Stack (Precitec Modular)
Collimation Module 1: PM0253-2112-07501 (f=75mm)
Collimation Module 2: PM0253-2121-02501 (f=25mm)
Focusing Module: PM0253-2121-05001 (f=50mm)
Total System Magnification: 0.67x to 2.0x (Configurable)
Wavelength Compatibility: 1064 nm (Optimized for Fiber, Disk, and Nd:YAG)
Power Rating: Typically rated up to 6.0 kW CW

2. 3D Beam Steering & Focus Control (Newson 3G)
X/Y Deflector (Rhothor): Model RTA AR180 3G (SN 24428)
Angular Range: 180 mrad (±10.3°)

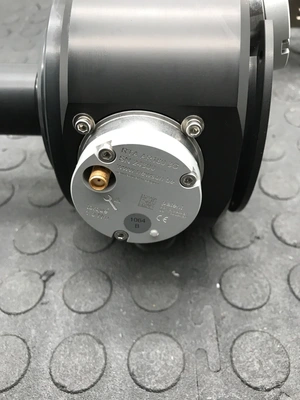

Control Interface: SDP (Shared Data Power) via Gold SMA Coaxial Port

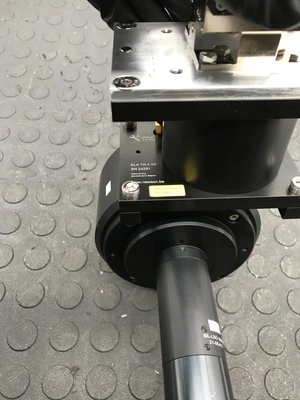

Z-Axis Actuator (Elevathor): Model ELA TR 4 3G (SN 24291)
Travel Range: 4.0 mm linear travel for dynamic focus adjustment
Resolution: 24-bit digital (Sub-micron precision)

3. Machine Vision & Process Monitoring

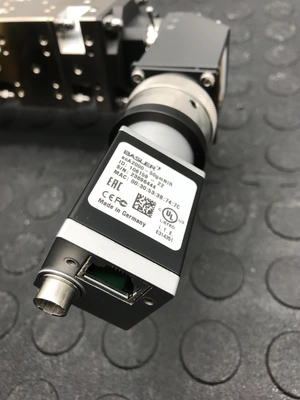

Camera: Basler ace acA2000-50gmNIR (Near-Infrared Sensitive)
Resolution: 2.0 Megapixel (2048 x 1088 px) @ 50 fps
Interface: GigE (Gigabit Ethernet) with PoE (Power over Ethernet) support

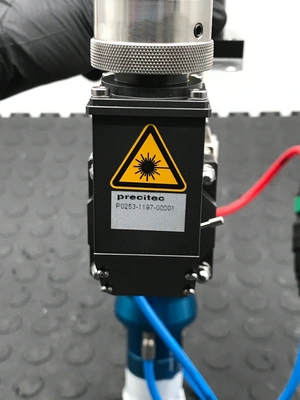

Interface Block: Precitec P0253-1197-00001 (Dichroic Beam Splitter Module)
Process Sensor: Precitec PS0253-1057510 (Real-time weld depth/seam monitoring)

4. Integrated Auxiliaries
Pneumatics: SMC ISO Cylinder & Luftweiche (Module 101106543)
Function: Safety shutter and internal exhaust management
Dispensing: Blue Thimble Valve with Micrometer Stroke Adjustment
Function: Integrated adhesive or lubricant application during processing
