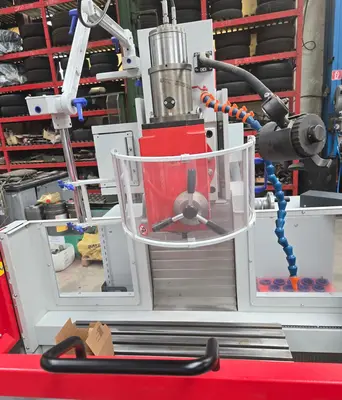

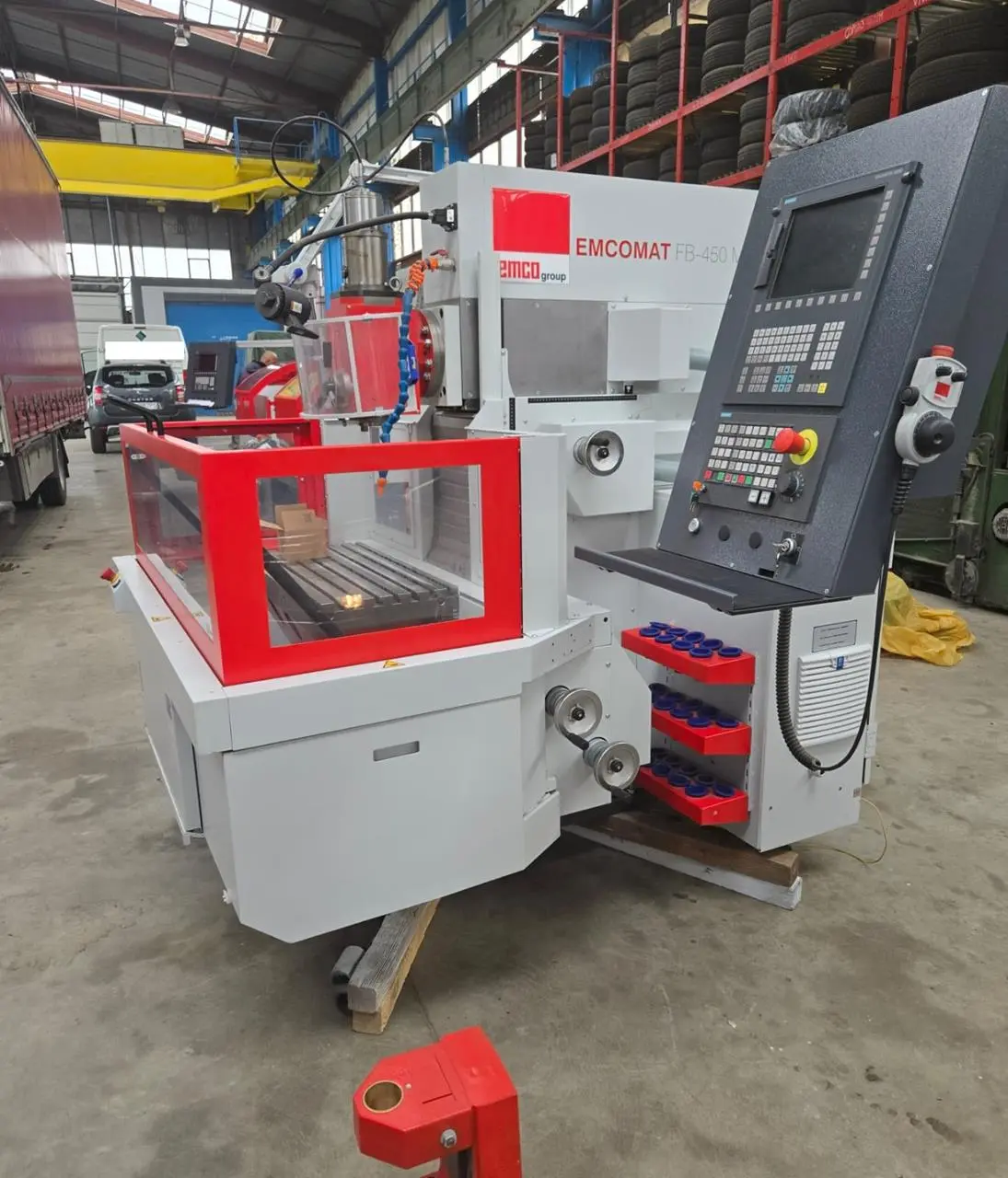

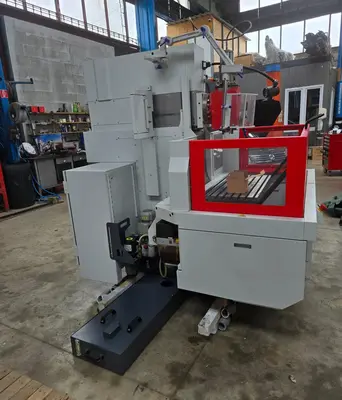

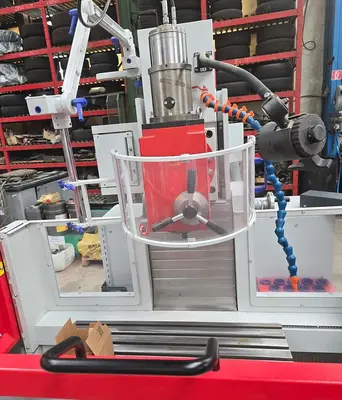

USED 2019 EMCO EMCOMAT FB-450 MC

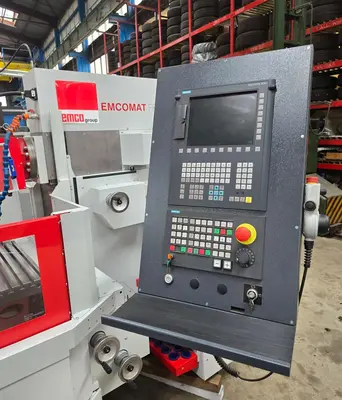

Control system: Siemens Sinumerik 828D
Length of the working table: 800 mm
Width of the working table: 400 mm
Maximum table load (evenly distributed): 300 kg
Power of the spindle drive: 10 kW
Maximum rotary speed of the vertical spindle: 5000 1/min
X-Axis travels: 450 mm
Y-Axis travels: 350 mm
Z-Axis travels: 400 mm
Machine height: 1990 mm
Machine length: 1980 mm
Machine width: 2030 mm
Machine weight: 2300 kg

Horizontal support arm
Hand wheel
Tool holders (12 pieces)
Installation pads
