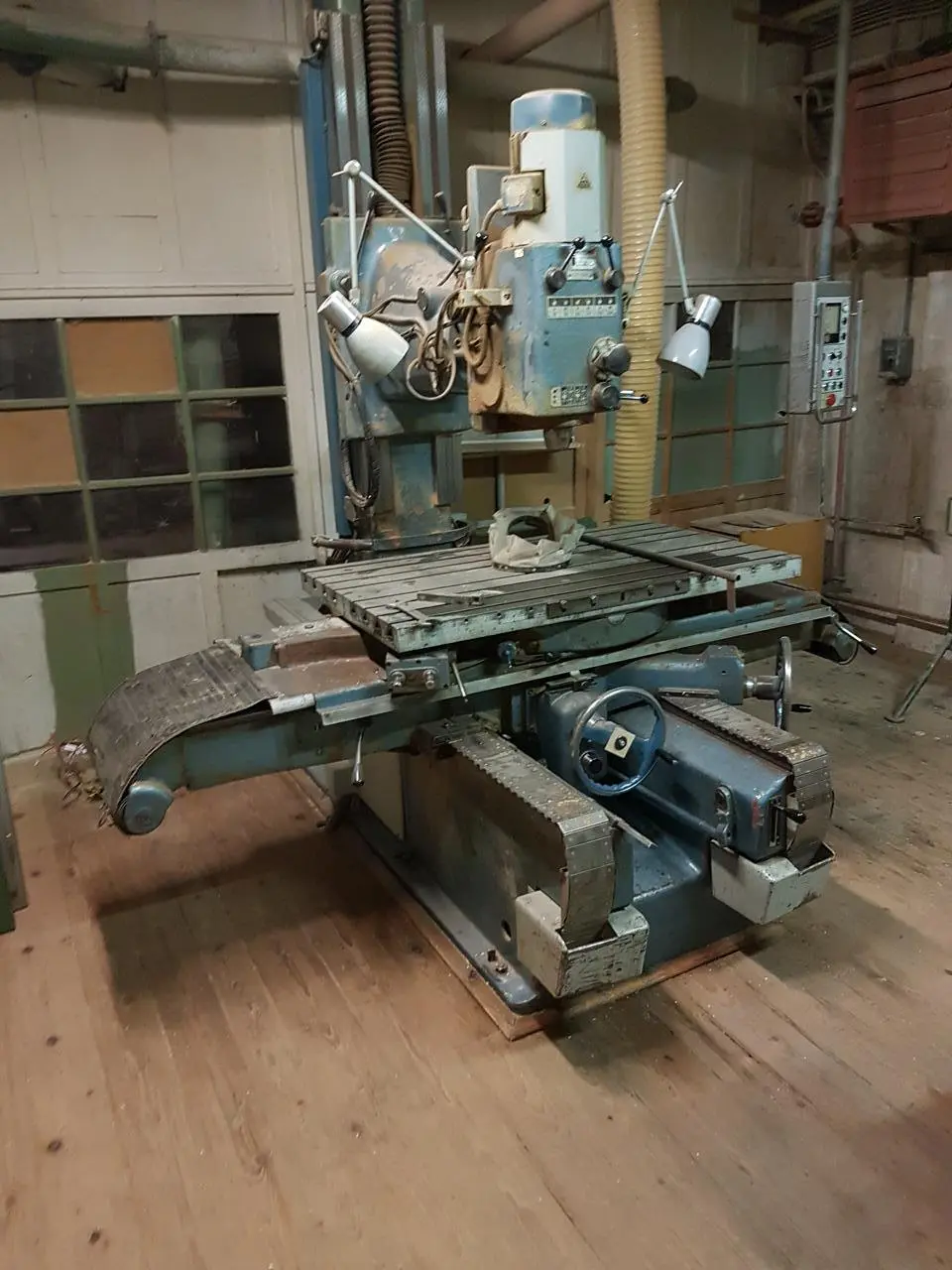

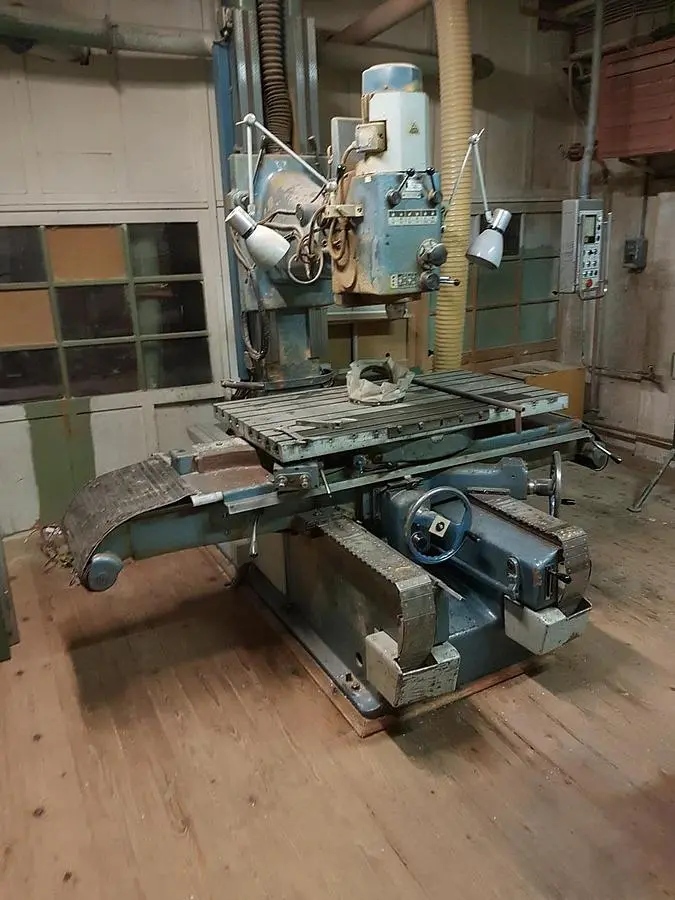

USED 1973 TOS FMA - U

Length of the table: 1400 mm
Width of the table: 800 mm
Spindle taper: Morse 4
Weight: 4200 kg
Longitudinal movement of the table (manual): 1500 mm
Longitudinal movement of the table (mechanicela): 1480 mm
Lateral movement of the table (manual): 900 mm
Lateral movement of the table (mechanical): 880mm
Distance of the spindle axis from the guiding surface of the column: 1000 mm
Arm adjustability after the column (machine): 870 mm
Max. diameter of the machined object when the arm is turned by approx. 30°: 2900 mm
Headstock adjustment: 250 mm
Spindle bendability 90°- 0°- 45°
Work spindle speed:
1st row 90-360-1400 rpm
2nd row 180-720-2800 rpm
Headstock machine feeds:
1st row 14-22-36-56 mm/min
2nd row 28-45-72-112 mm/min
