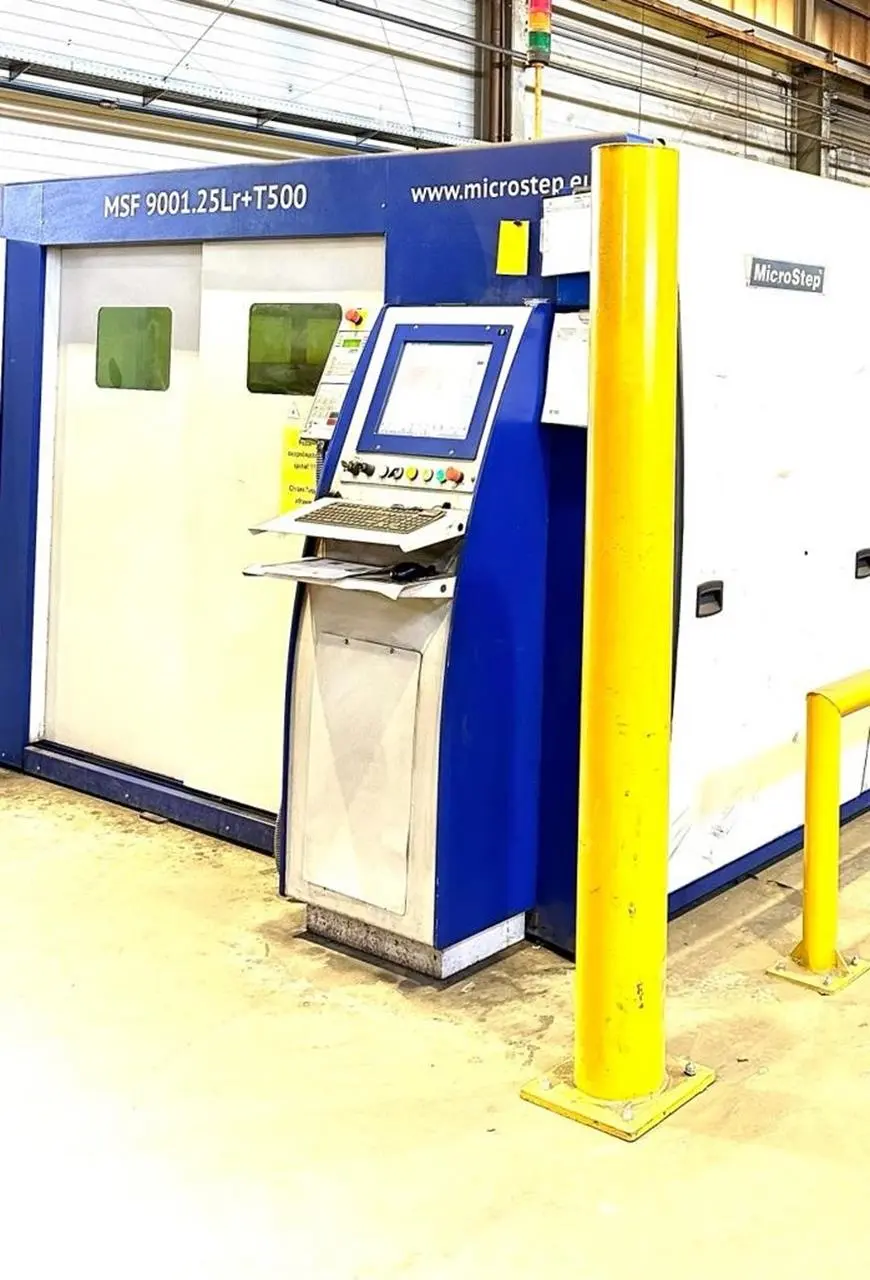

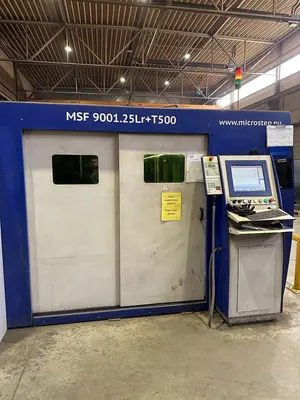

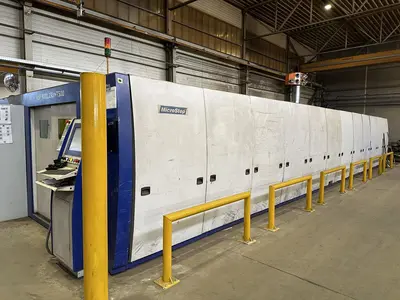

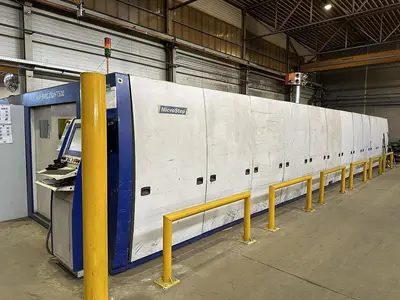

USED 2015 MICROSTEP MSF 9001.25LR T500

After GO 2022 (tables
laser head
laser source)
Laser power: 10 kW
Length of the working table: 9000 mm
Width of the working table: 2500 mm
Maximum thickness of the cut sheet metal (Stainless Steel): 25 mm

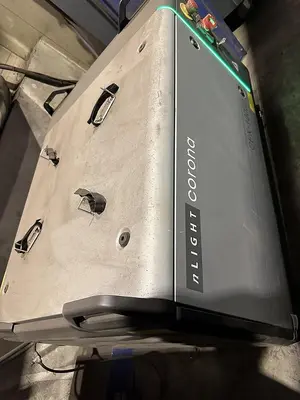

Source: nLight CORONA-CFX-10000
Positioning speed: 130 m/min
Laser head: Thermacut EX-TRABEAM-Pro-360
Machine height: 2570 mm
Machine length: 23000 mm
Machine width: 6000 mm

Technical documentation
Point laser sight
Camera in the head
Protective glass against lens contamination
Remote support
Adaptive cutting
Automatic targeting of sheet rotation
Touch LED panel
Automatic nozzle cleaning
Calibration station

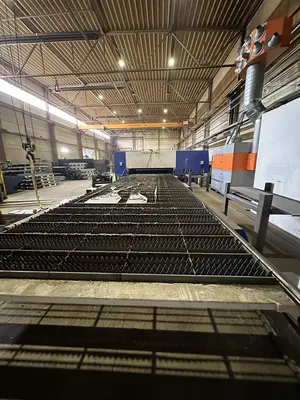

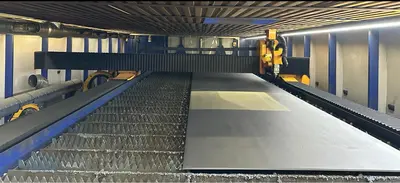

Pallet table changer 2 tables
Suction segments under the grate
1x slag drawer
Automatic chip conveyor

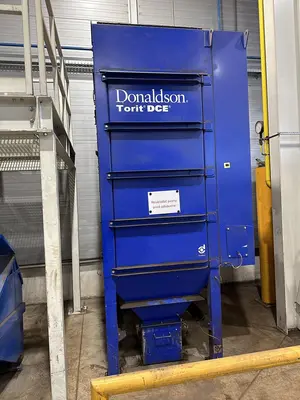

Automatic suction
2x Asper license
