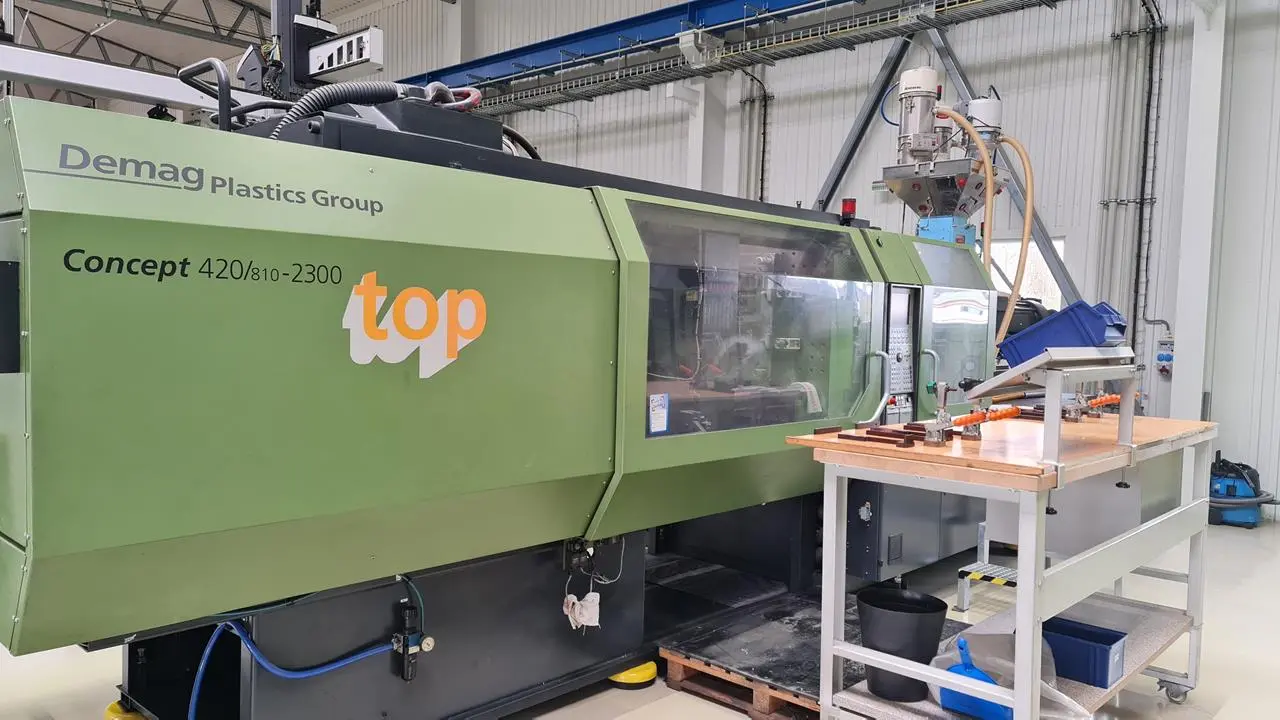

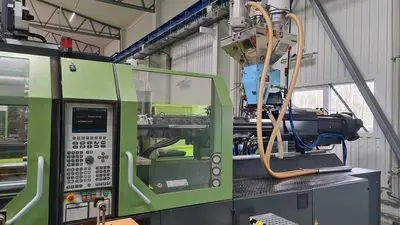

USED 2006 DEMAG CONCEPT 420/810-2300

Clamping force: 420 t
Closing force: 4200 kN
Screw diameter: 70 mm
Injection capacity: 891 cm³
Injection weight: 800 g
Height of the plate for mounting the mold: 1200 mm
Width of the plate for mounting the mold: 1100 mm
Distance between the columns (horizontal): 800 mm
Distance between the columns (vertical): 710 mm
Maximum injection pressure: 1877 bar
Mold height: 820 mm
Machine length: 7800 mm
Machine width: 2200 mm
Machine height: 2400 mm
Weight of the injection molding machine: 20000 kg
