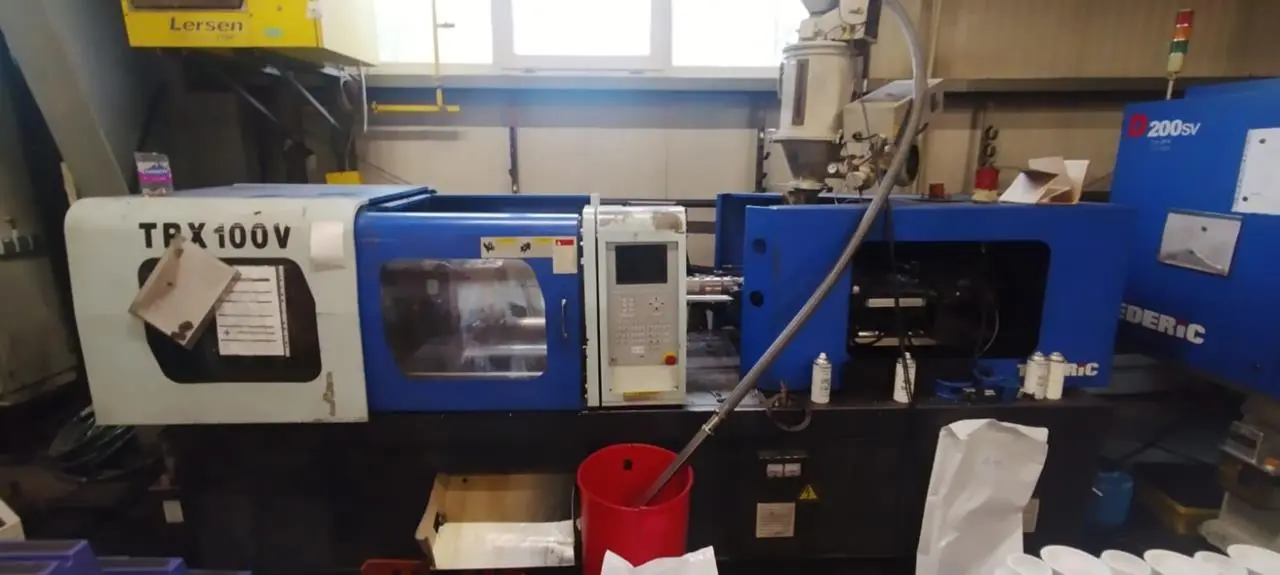

USED 2008 TEDERIC TRX 100V

Clamping force: 100 t
Injection capacity: 228 cm³
Injection weight: 208 g
Height of the plate for mounting the mold: 550 mm
Width of the plate for mounting the mold: 540 mm
Distance between the columns (horizontal): 360 mm
Distance between the columns (vertical): 360 mm
Length of the ejector stroke: 100 mm
Power of the spindle: 11 kW
Machine length: 4100 mm
Machine width: 1100 mm
Machine height: 1800 mm
Weight of the injection molding machine: 3500 kg
