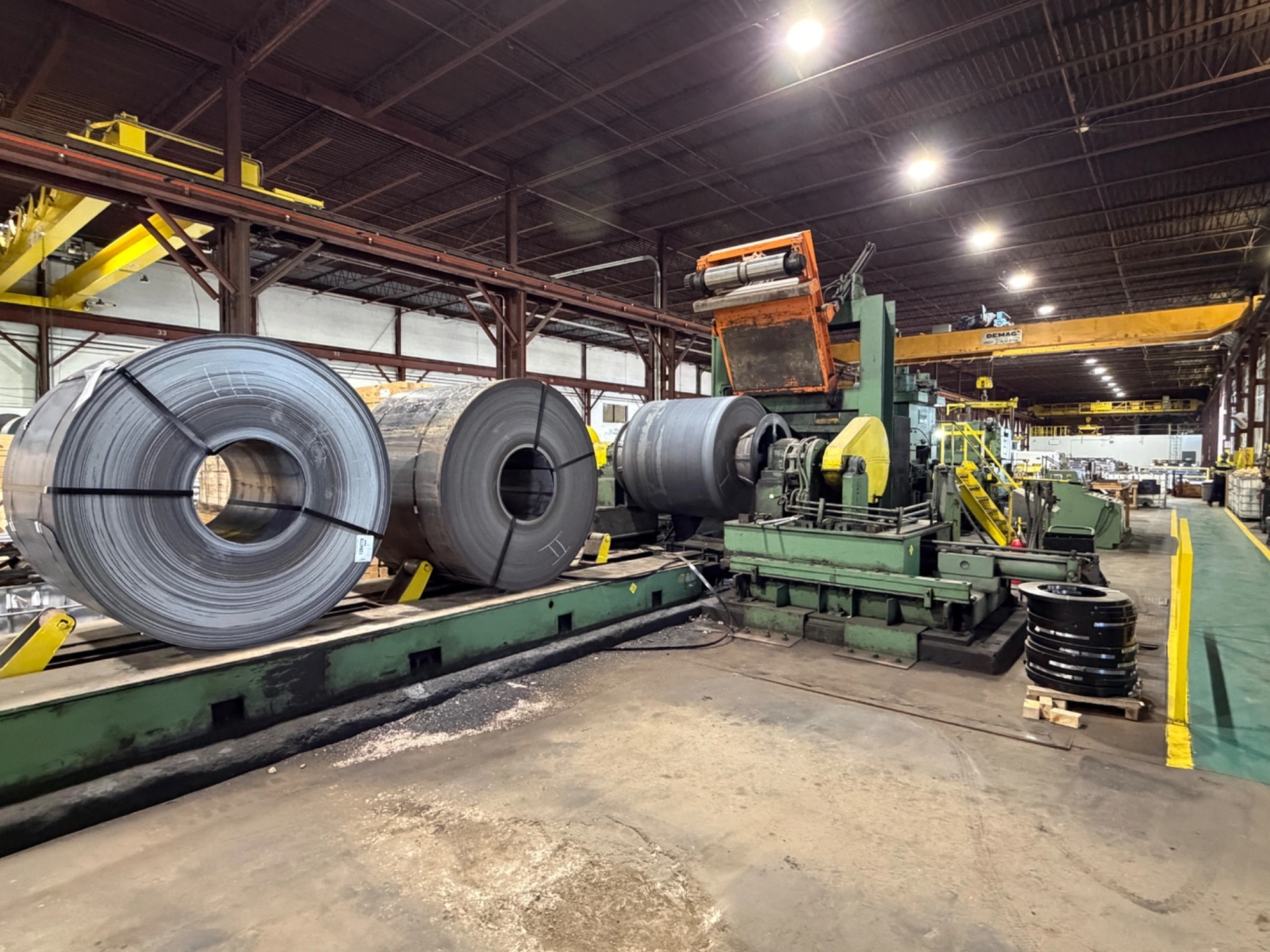

USED 1995 HERR VOSS 74-60-50 CTL

74” Wide
60,000 Lb Capacity
1/2” Max Capacity
Installed & Running
Video Available

1995 Herr Voss CTL Line

- Coil Weight: 60,0000 LB
- Coil Width: 32”-74”
- Coil ID; 20’-32”
- Gauge Range: .095”-.50”
- Line Speed: 175 FPM
- Sheet Length: 26”-240” Within Stacker
- Bundle Weight: 20,000 LB

Equipted With:

- 3 Stage Coil Ramp
- Dual Cone Uncoiler
- Entry Unit
Hydraulic Peeler Table
Holddown Roll
Pinch Roll
- Leveler
Model: VKL W/ Pinch Roll 4Hi 88/4.50-11/5 LH
84” W x 4.5” Diameter Work Roll
11 Work Rolls 5 over 6 Design
5 Motorized Backupd
200 HP DC Motor
Spare Rolls
- Feed Table
- Measuring Roll
- Shear
60 HP AC Motor
- Stacker
Side Tamp Design
Driven Conveyor Rolls
End Discharge

- Installed & Running
- Complete Electrics, Hydraulics, Water Cooler
- Compliment Of Spare Parts
- Video Available
