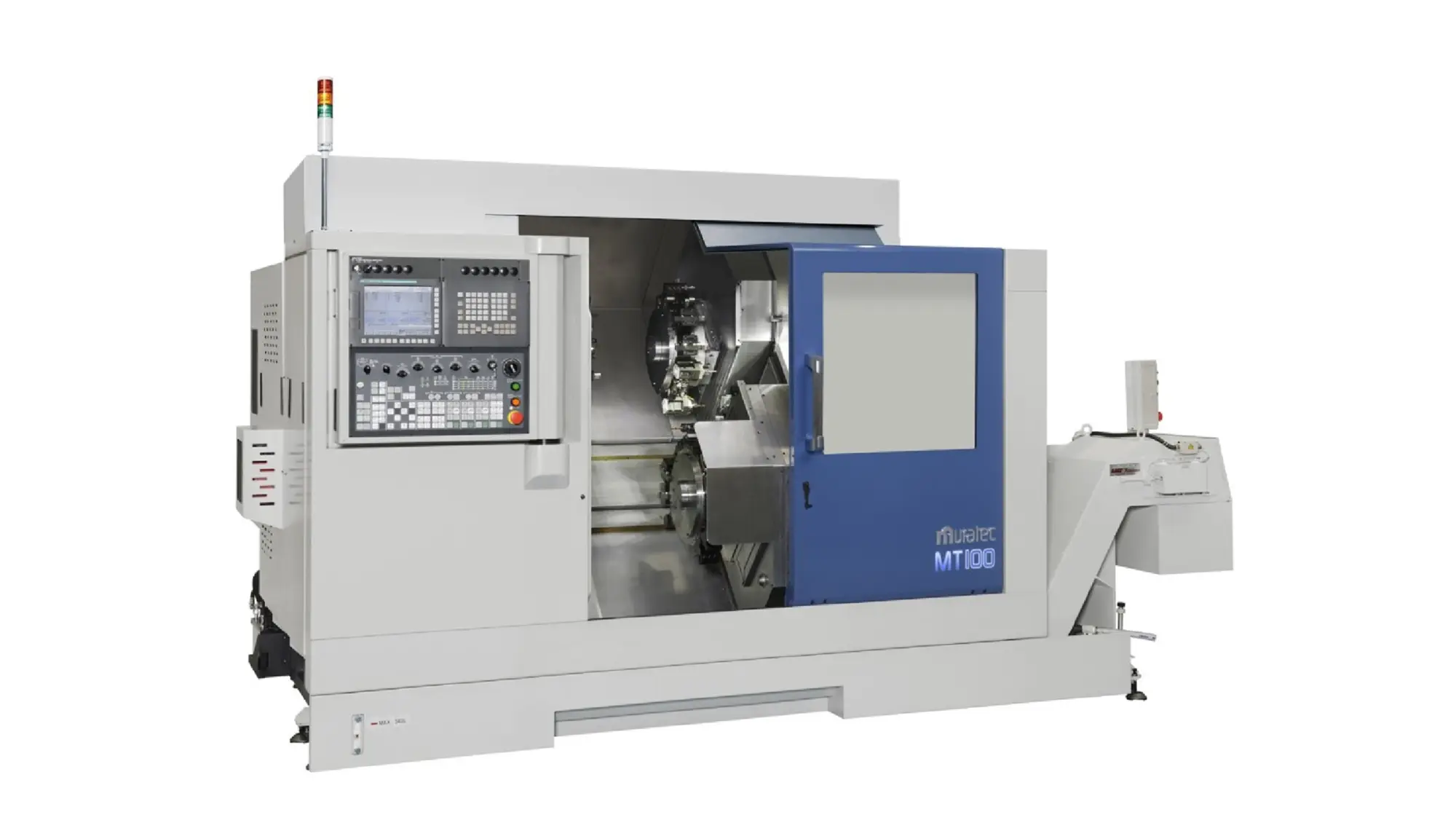

NEW MURATA MURATEC MT 100 T2

-MURATEC MT100/T2 TWIN OPPOSED SPINDLE CNC TURNING MACHINE WITH Y AXIS and LIVE TOOLING
-CHIP CONVEYOR, HINGE TYPE, RIGHT SIDE DISCHARGE
-COOLANT TANK MODIFICATION
-10KG COOLANT PRESSURE UPGRADE FOR MT100
-BARFEEDER INTERFACE KIT FOR MT100

LEFT SIDE SPINDLE
-4500 RPM
-A2-6 spindle nose
-15 HP(11kw)/30-min
-Hydraulic chuck cylinders and draw-bars(chucks and draw-bar connectors not
included with base machine)
-Machine prepped for air/coolant blow through spindle
-4point spindle orientation (M19-M22)
-Max bar capacity 66mm (2.55in)

RIGHT SIDE SPINDLE
-5000 RPM
-A2-5 spindle nose
-15 HP(11kw)/30-min
-Hydraulic chuck cylinders and draw-bars(chucks and draw-bar connectors not
included with base machine)
-Machine prepped for air/coolant blow through spindle
-4point spindle orientation (M19-M22)
-Max bar capacity 51mm (1.96in)
-Std equipment solid draw bar

TURRET x2
-15station independent upper & lower tool turrets
-Live tools all stations 6000 RPM 2.2kw
-Y-Axis travel 2.36" (60mm)
-X-Axis travel 5.91" (150mm)
-Z-Axis travel 7.87" (200mm)
-Max X-Axis travel speed 944.8 IPM (24M/Min)/Z-Axis travel speed 1574.8IPM (40M/Min)
-Coolant pressure capacity 69 bar (1,000 psi)

COOLANT
-2 Independent coolant pumps: 4.2 bar/60 PSI
81.9 Gal (310L) tank

Machine
-19,841 Lbs. (9000Kg)
-220 Volts
232.28"W x 85.24" D
