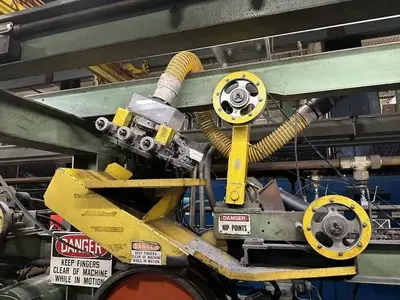

18" × .025" PM / ANDRITZ OSCILLATING SLITTING LINE WITH 12 RECOILERS

Equipped With
18" × .025" PM / ANDRITZ OSCILLATING SLITTING LINE WITH 12 RECOILERS
New: 1982
Specifications:
Material Type:  1095 High Carbon Steel
Tensile Strength:  120,000 PSI
Shear Strength:  96,000 PSI
Thickness Range:  0.0045 in – 0.025 in
Line Direction:  Left to Right
Cut Width & Thickness Capacity:
0.0045 in:  1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in
0.0051 in:  3/8 in, 1/2 in, 5/8 in, 7/8 in
0.0062 in:  3/8 in
Line Speed:  1500 FPM
Entry Strip Width:  18 in
Traverse Winder Coil Width:  8 in
Entry Coil ID:  15 in – 22 in
Traverse Winder Coil ID:  11 in
Exit Coil ID:  16 in
Entry Coil OD:  54 in
Ribbon Wound Coil OD:  39 in
Exit Coil OD:  54 in
Entry & Exit Coil Weight Capacity:  10,000 lbs
Traverse Winder Coil Capacity:  2,250 lbs
Equipped with:

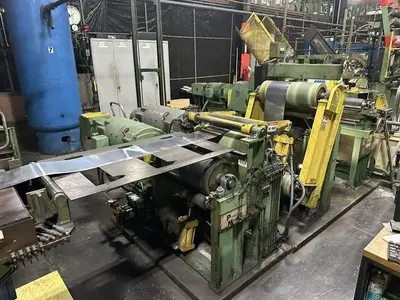

Mandrel Uncoiler
Hold Down Roll
3-Leaf Hydraulic Expansion
Sliding Base
15 HP Motor
Fives North American Edge Control H6600
Peeler Table / Deflector Roll
Newcor Strip Welder
2-Roll Bridal Unit for Tension Control
Double Roll Tracking Roll for Strip Alignment
(2) Sets of Rubber-Coated Deflector Rolls
Edge Guides

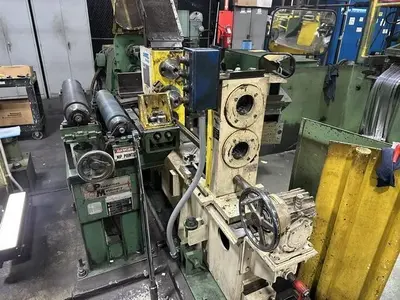

Andritz Slitter Head
New in 2016
New Bearings Installed by Andritz (December 2025)
5 in Diameter Arbors
(18) Sets of Quick Change Tooling Arbors
Pre-Packed Arbors
Shimless Tooling
Anti-Friction Bearings
25 HP DC Drive (1750 / 2000 RPM)
Scrap Baller
Recoiler
16 in Diameter Drum
10,000 lb Coil Capacity
30 HP DC Drive
Hydraulic Push-Off
Hold Down Roll
21 in Drum Face
1-Arm Exit Turnstile
Vertical Strand Separator
Deflector Rolls

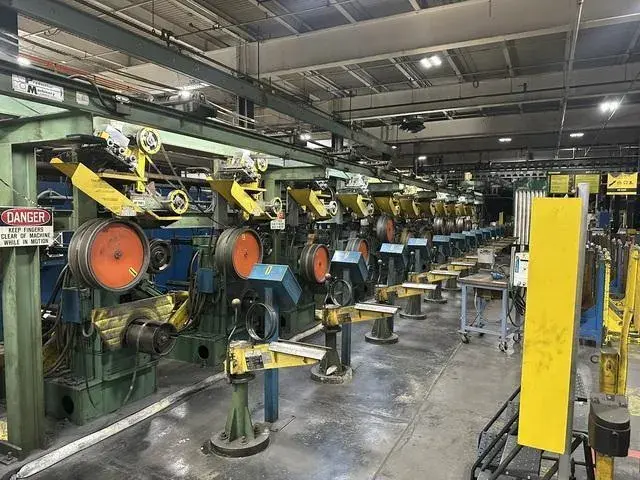

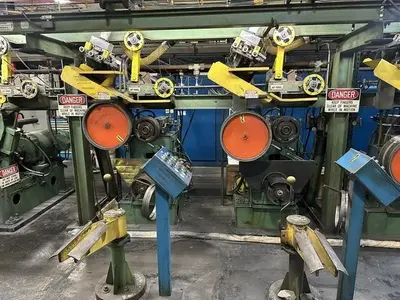

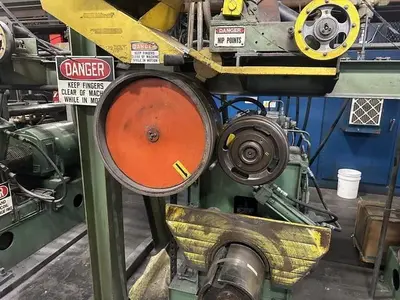

(12) Oscillating Recoilers
11 in Diameter Drums
Hydraulic Push-Off
Vertical Edge Conditioners
S-Bridal Strip Tension Rolls (2)
Hydraulic Traversing Oscillating Wheel
7.5 HP Drive
1-Arm Exit Turnstiles

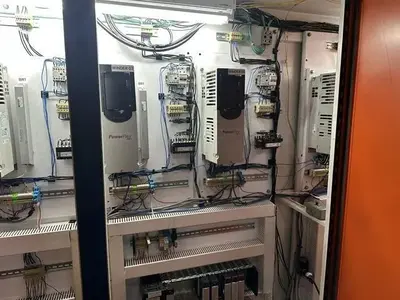

Powerflex 755 Digital Drives
Allen Bradley PLC
Digital Drives
Digital Readouts
Central Hydraulic Units
Operator Push Button Stations

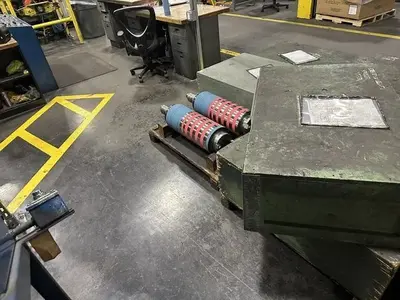

Slitter Tooling
Hydraulics & Electrics
Spare Parts
Large Quantity of Steel Cores
