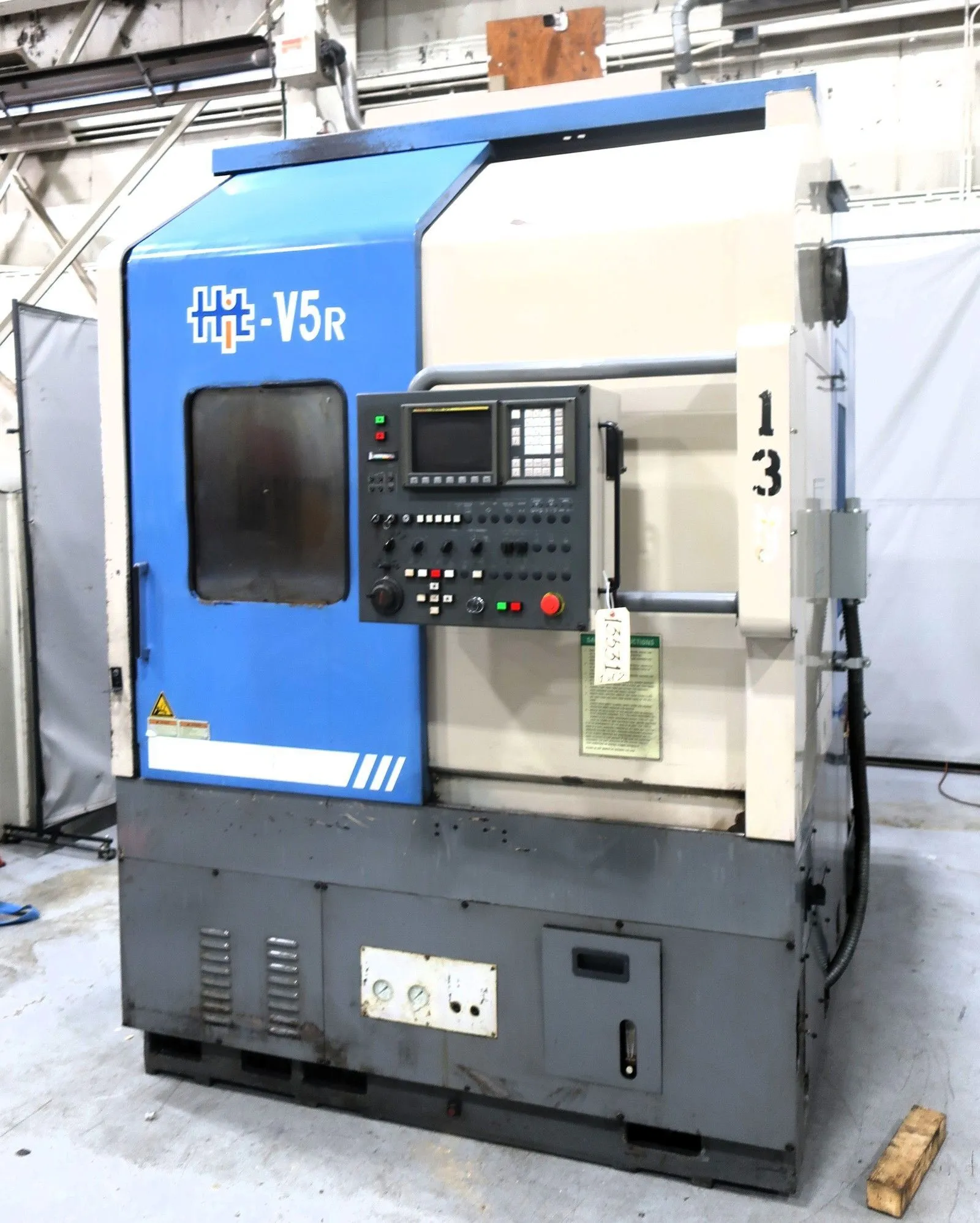

USED 2000 HYUNDAI HIT-V5R
Overview
15" Hyundia HIT-V5R CNC Vertical Turning Center, 15" 3-jaw chuck, 2000 rpm, 30 HP
31.5" max swing, Fanuc O-T CNC
Specs
HYUNDAI HIT-V5R VERTICAL CNC TURNING CENTER, NEW 2000
SPECIFICATIONS:
MAX. TURNING DIAMETER: 21.65"
MAX. TURNING LENGTH: 23.6"
MAX. SWING: 31.5"
CHUCK DIAMETER: 15"
TRAVEL - X AXIS: 12.8"
Travel- Y AXIS: 24.6"
RAPID TRAVERSE RATE (X/Z): 787/709 IPM
SPINDLE MOTOR: 30 HP
SPINDLE SPEEDS: 20-2000 RPM
TURRET CAP.: 8 TOOLS
TOOL SHANK SIZE - SQUARE: 1.25" - ROUND: 2"
MACHINE DIMS: 99"x73"x115"H
MACHINE WEIGHT: 22,000 LBS
EQUIPPED WITH:
Equipped With
FANUC 0T CNC CONTROL
15" KITAGAWA 3-JAW CHUCK.
TURBO CHIP CONVEYOR
TURRET TOOLHOLDERS
