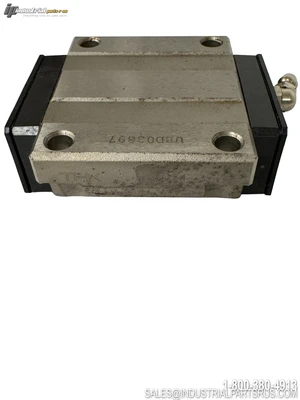

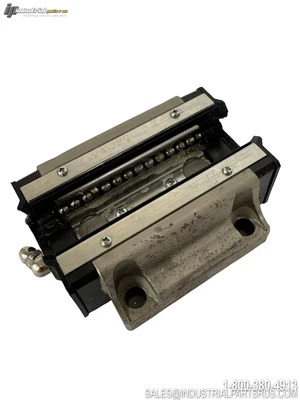

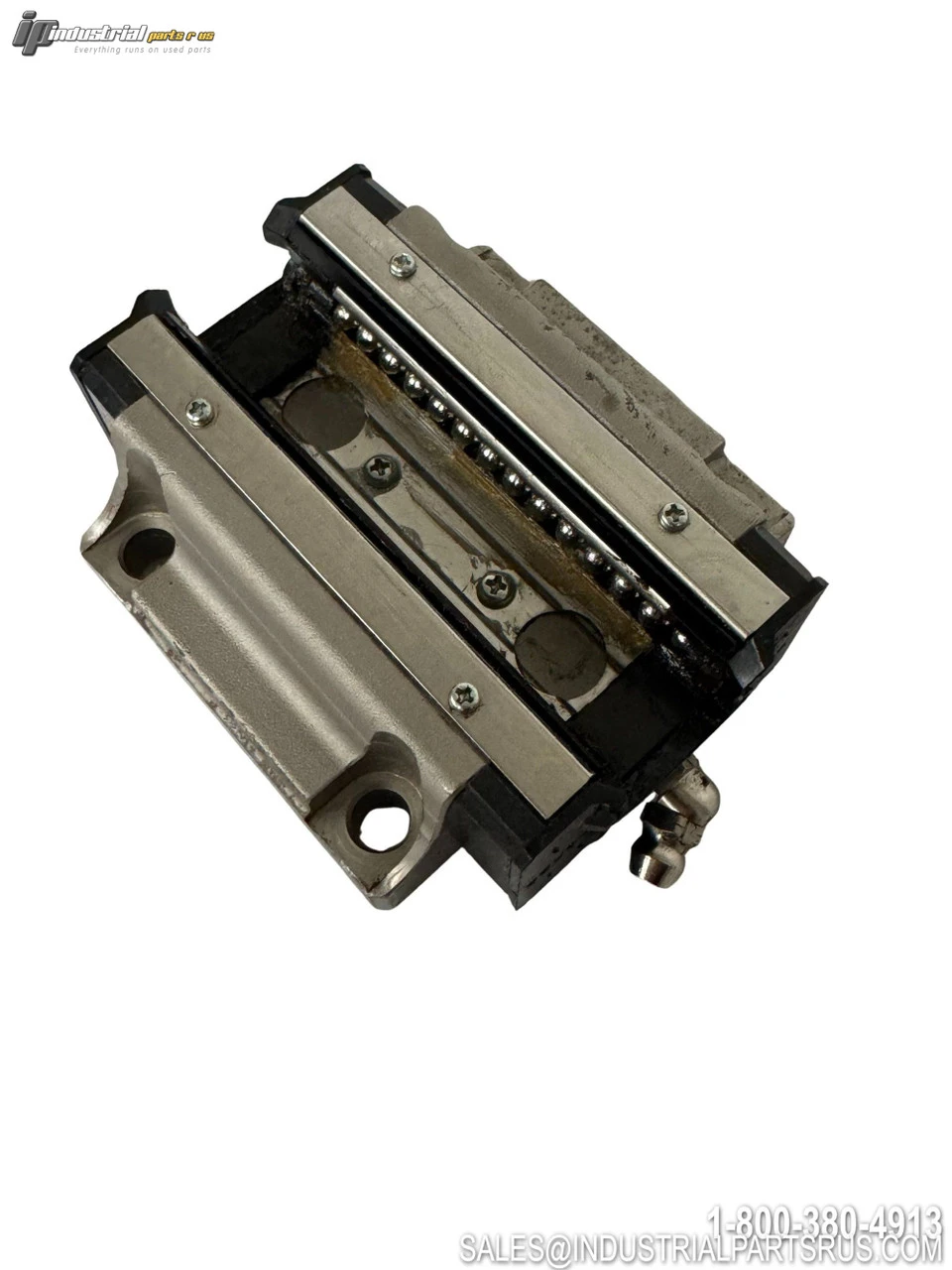

The THK HSR25B is a high-precision linear motion guide block designed for 25mm rail systems. This full-ball type linear bearing features a 4-way equal load design with ball rows placed at 45-degree contact angles, providing uniform load distribution in radial, reverse radial, and lateral directions.
Specification
Value
Brand
THK
Model/Part Number
HSR25B
Product Type
Linear Guide
Rail Size
25mm
Block Length
92mm
Block Width
48mm
Block Height
35mm
Combined Height
36mm
Mounting Hole Spacing
57x45mm
Rail Screw Size
M7
Hardness
58-64 HRC
Loading Method
4-way Equal Load Type
Block Mounting Direction
Bottom Surface Mount
Ball Retainer
Ball Cage (Caged Ball)
Contact Angle
45 degrees
LaCS Availability
Available
We warranty all items for 30 days from date of purchase.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: AI1505
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: THK
Part Number: HSR25B
Shelf: K-64 Tub5
Model: HSR25B
MPN: HSR25B
Type: Linear Guide
