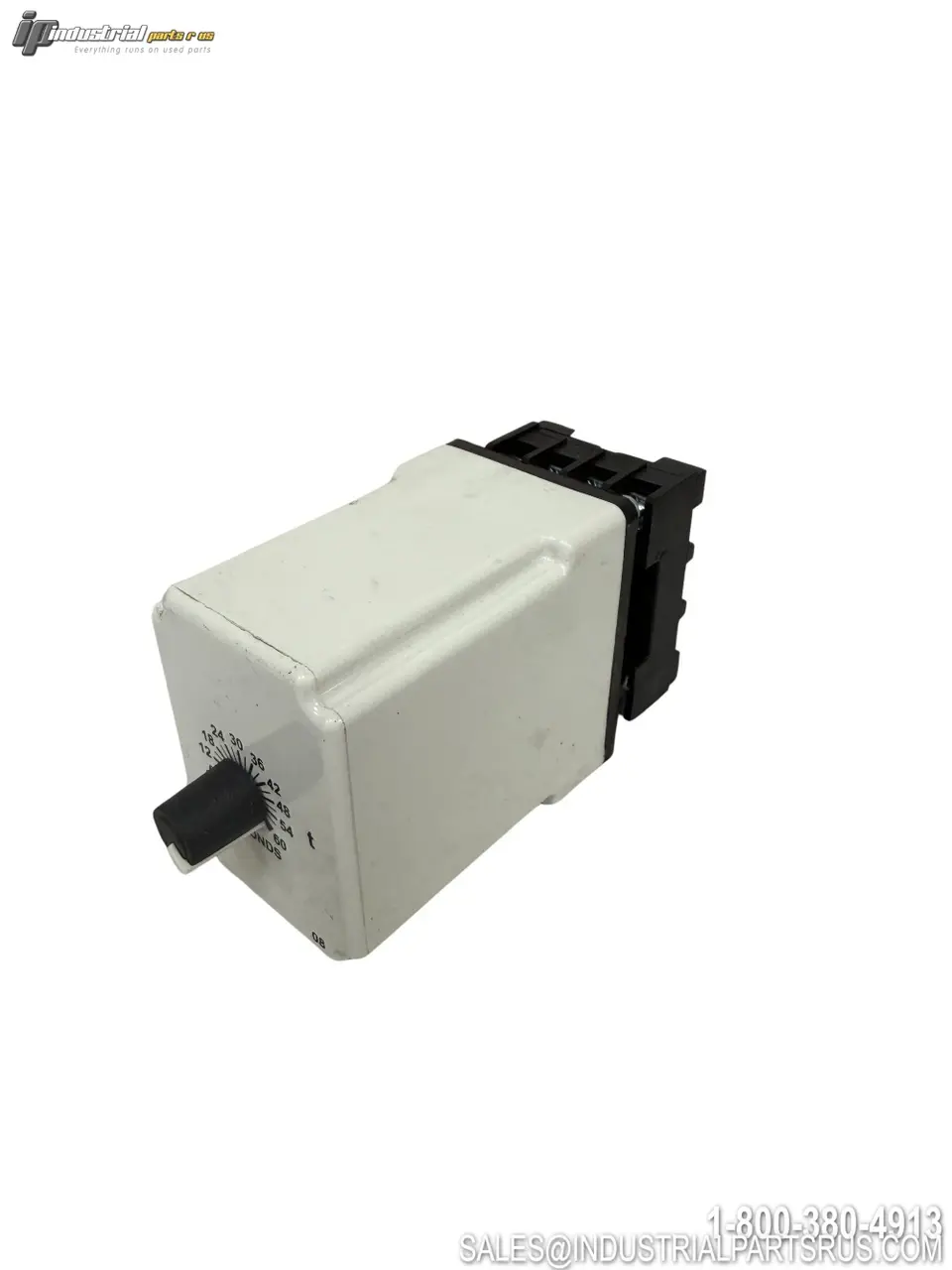

USED MACROMATIC TR-50222-08

The Macromatic TR-50222-08 is a non-programmable time delay relay from the TR-5 series featuring on-delay timing function. Upon application of input voltage, the time delay begins and at the end of the delay period, the output contacts are energized. This relay utilizes industry-standard 8-pin octal socket mounting and provides reliable timing control for industrial applications.
Specification
Value
Brand
Macromatic
Model/Part Number
TR-50222-08
Product Type
Time Delay Relay
Series
TR-5
Function
On Delay
Coil Voltage
120VAC/DC
Contact Configuration
DPDT
Contact Rating (AC)
10A @ 240VAC
Contact Rating (DC)
10A @ 30VDC
Time Range
0.6 - 60 Seconds
Number of Pins
8
Socket Type
8-pin Octal
Mounting Type
Plug-in
Dimensions
3.5"D x 1.7"W x 2.4"H
Operating Temperature
-28°C to 65°C (-18°F to 149°F)
Voltage Tolerance
+10/-15% of nominal
Reset Time
0.1 Seconds
Mechanical Life
2,000,000 operations
Electrical Life
100,000 operations
Load Burden
2 VA
Certifications
UL, CSA, CE
We warranty all items for 30 days from date of purchase.

SKU: AI1526
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Mounting Style: Plug-In
Current Rating: 10A
Manufacturer: Macromatic
Part Number: TR-50222-08
Series: TR-5
Shelf: C-10 Tub 3
Model: TR-50222-08
Coil Voltage: 120V AC/DC
MPN: TR-50222-08
Type: Time Delay Relay
