USED 2008 SML CAST COEX 7

SML MODEL CAST COEX 7 Y LAYER CAST FILM LINE
MFG 2008
98"(2500mm) FILM WIDTH
NOMINAL CAPACITY 10141LB/4600kg PER HOUR
AT THE REWINDER 6062LB/2750kg PER HOUR
STRETCH FILM LLDPE

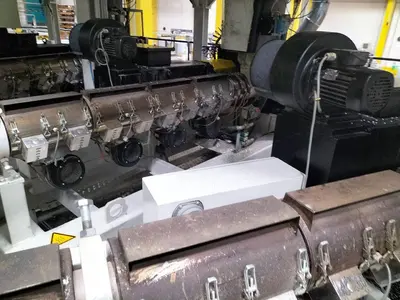

LAYER 1 SCREW DIAMETER 75

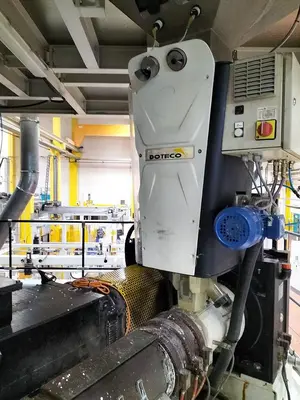

GRAVIMETERIC DOSING UNITS WITH 4 COMPONENTS THAT MAKE DOTECO, HYDRAULIC SCREEN CHANGER WITH AC MOTOR
LAYER 2 SCREW DIAMETER 75
GRAVIMETERIC DOSING UNITS WITH 4 COMPONENTS THAT MAKE DOTECO, HYDRAULIC SCREEN CHANGER WITH AC MOTOR
LAYER 3 SCREW DIAMETER 75
GRAVIMETERIC DOSING UNITS WITH 4 COMPONENTS THAT MAKE DOTECO, HYDRAULIC SCREEN CHANGER WITH AC MOTOR
LAYER 4 SCREW DIAMETER 90
GRAVIMETERIC DOSING UNITS WITH 4 COMPONENTS THAT MAKE DOTECO, HYDRAULIC SCREEN CHANGER WITH AC MOTOR
LAYER 5 SCREW DIAMETER 75
GRAVIMETERIC DOSING UNITS WITH 4 COMPONENTS THAT MAKE DOTECO, HYDRAULIC SCREEN CHANGER WITH AC MOTOR
LAYER 6 SCREW DIAMETER 75
GRAVIMETERIC DOSING UNITS WITH 4 COMPONENTS THAT MAKE DOTECO, HYDRAULIC SCREEN CHANGER WITH AC MOTOR
LAYER 7 SCREW DIAMETER 75
GRAVIMETERIC DOSING UNITS WITH 4 COMPONENTS THAT MAKE DOTECO, HYDRAULIC SCREEN CHANGER WITH AC MOTOR

HEAD DESCRIPTION: AUTOMATIC THICKNEES PROFILE COTNROL VIA THERMAL BOLTS. INTERNAL DECKLING SYSTEM

DIE WIDTH 122"/3100mm WITH INTERNAL DECKLIN

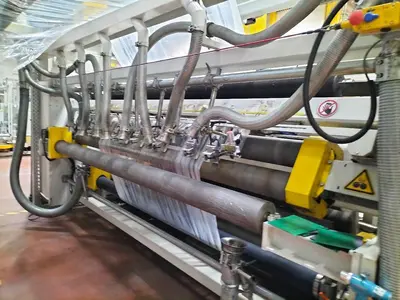

DOUBLE CHILL ROLLER

THICKNESS CONTROLL SYSTEM: AUTOMATIC THICKNESS CONTROL SYSTEM WITH DOUBLE THICKNESS GUAGE TYPE WITH BETA RAYS BY ELECTRON SYSTEM.
OSCILLATING FRAME WEB GUIDE

SPINDLE SHAFTS OF REWINDER 3" AND 6"

THICKNESS RANGE FROM 12 MICRON TO 70 MICRONS

RECYCLING SYSTEM INCLUDES:
3 KONGSKILDE EXHAUST FOR EDGE TRIMS

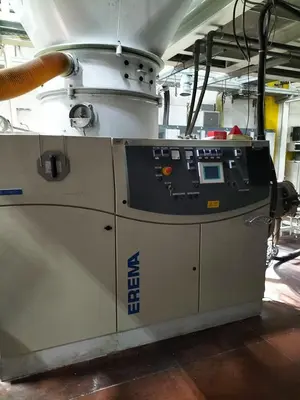

EREMA RECYCLING REGRANULATION UNIT
ADDITIONAL EXTRUDER (8) FOR RECYCLED MATERIAL SUPPLIED BY EREMA UNIT
COMPLETE END OF THE LINE ROLL HANDLING AND PALLETIZIGN
