USED 2014 SOUTHWESTERN INDUSTRIES TRAK TRL1630SX

Equipped With

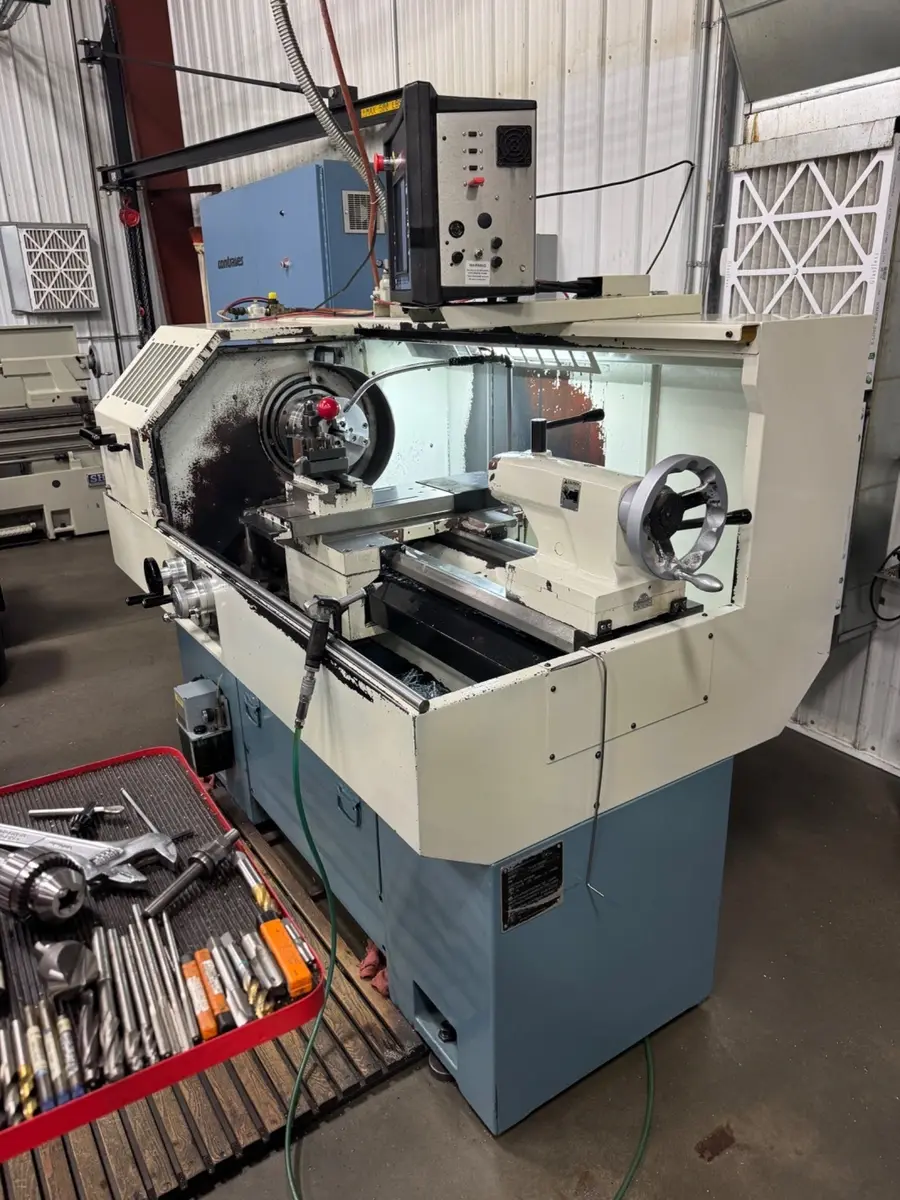

SOUTHWESTERN INDUSTRIES MODEL TRAK TRL1630SX CNC LATHE
New 2014
EQUIPPED WITH

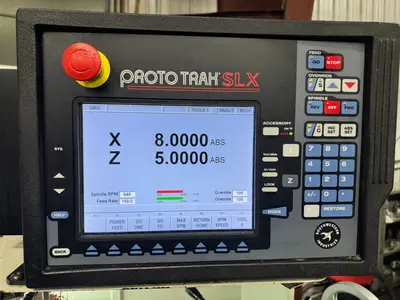

- ProtoTRAK SLX & Pendant Control
- Tailstock & Steady Rest
- Coolant System
- Enclosed Guards
- Tooling shown

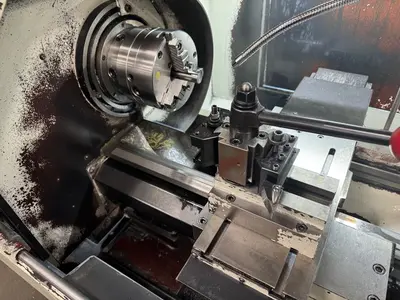

-three jaw chuck

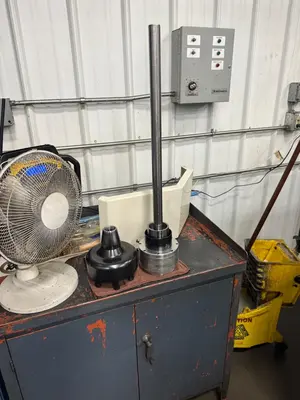

-royal 5c collet air
Height of Centers-8”
· Distance between centers-30”
· Swing over bed -16”
· Swing over saddle wings-16”
· Swing over cross slide-8.6”
· Cross slide travel-9.6”
· Tool section max-3 /4”
· Coolant tank capacity-11 gal.
· Width of Bed-12.6”
· Height of Bed-12.6”
· Spindle Nose (Camlock)-D1-6
· Spindle through hole-2.12”
· Spindle taper-MT#6
· Taper in reduction sleeve -N/A
· Spindle dia at front bearing-3.15”
· Number of bearings-2
· Bearing class (radial round)-P5
Spindle speed range (RPM)-150-2500
· Optional Tailstock Quill travel-5”
- Quill diameter-2.36”
- Quill taper hole-MT#4
· Spindle Motor HP -7.5
· Power requirements, control-110V; 1P; 8 A
· Power requirements, machine-220V;3P;60Hz
· Amps full load current-25
· Dimensions net - 79 x 38 x 54”
· Dimensions shipping - 87 x 45 x 67”
· Weight net - 2,200 lbs.
· Weight shipping - 2750 lbs.
· Maximum rapid feed X - 100
· Maximum rapid feed Z - 150
· Coolant pump motor -1/8 HP
· Spindle motor brake - Dynamic braking
· Way surface hardness - 400 – 450 HB
· Head stock lubrication - Oil bath
· Sliding door for easy set-ups
· Bedways hardened and ground
· Sliding surfaces Turcite coated
  Dovetails on cross slide, V-ways on
