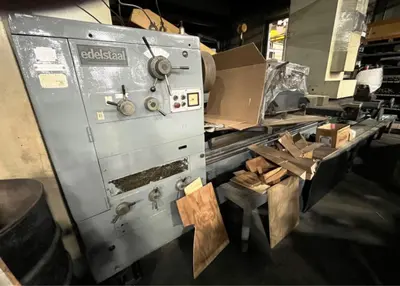

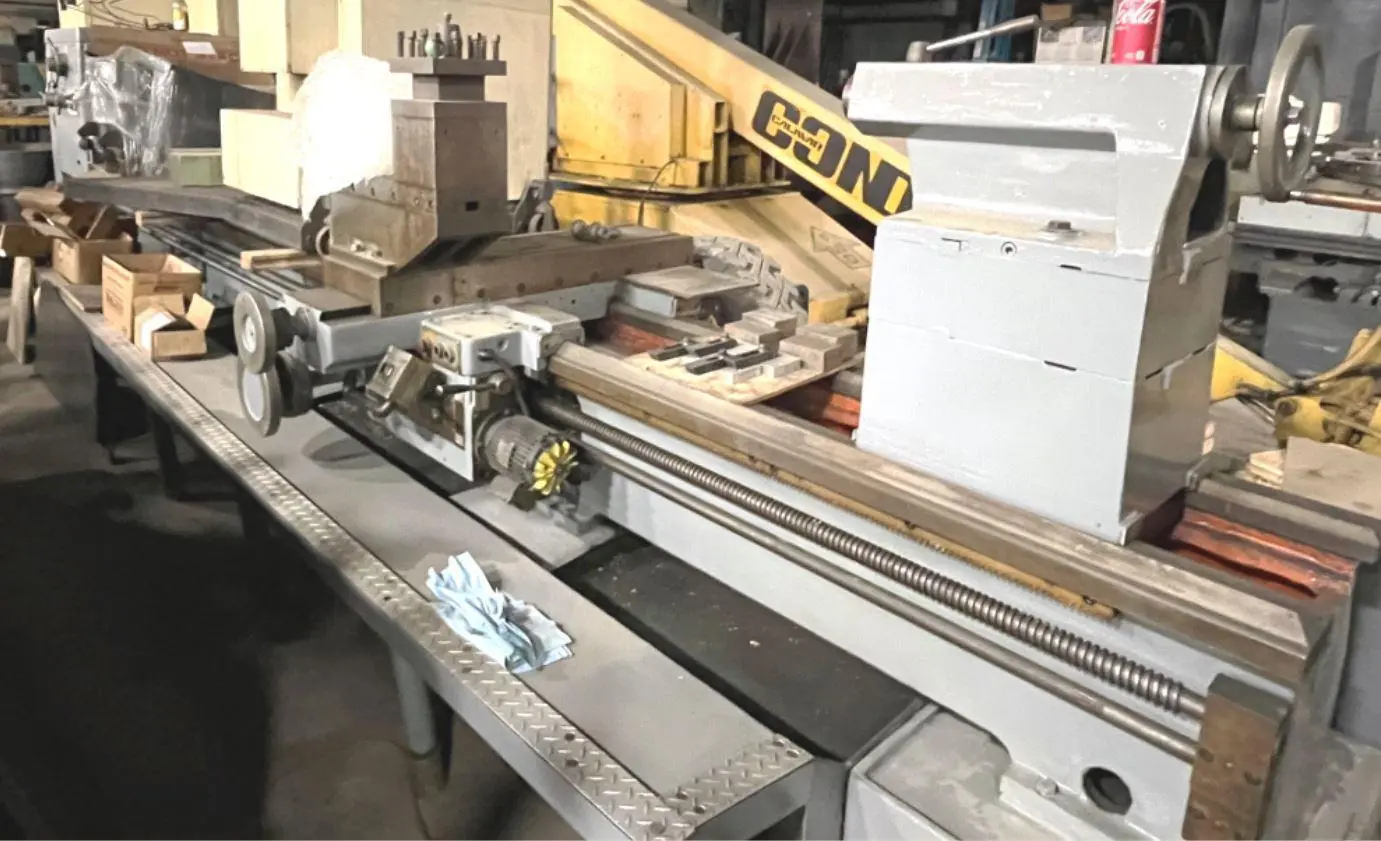

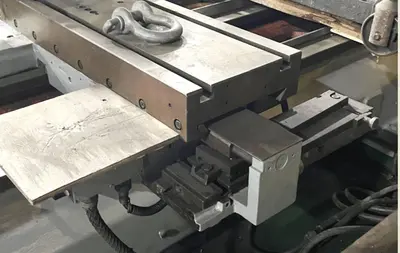

52" X 200" EDELSTAAL HEAVY DUTY ENGINE LATHE

Equipped With
52" X 200" EDELSTAAL HEAVY DUTY ENGINE LATHE
New 1978
SPECIFICATIONS:
Swing over bed…………………………….…....……… 52"
Swing over cross slide…………………….....…………. 36"
Swing in gap……………………................………….. 61.5"
Distance between centers………………….……....….. 200"
Spindle nose (Camlock)…………………............…. D-1-11
Hole in spindle……………………………….……… 4-1/8"
Spindle speeds (23)……………………...….. 8 – 1,250 rpm
Feeds (44 each)
  Longitudinal…………………………….. 0.0024 - 0.56 ipr
  Cross……………………………………. 0.0012 – 0.28 ipr
Rapid traverse (long./cross)……………...…...... 150/75 ipm
Threading;
  English (40)………………………….…...…… 1/4 - 80 tpi
  Metric (43)…………………………………… 1 – 176 mm
  Diametral (40)………………………….........…. 2-1/2 – 64
  Module (39)………………………..………...…… 0.5 – 80
Cross slide travel……………………..……..…… 19-11/16"
Top slide travel………………………..……..……. 17-5/16"
Tail stock spindle travel………………..…………… 12-3/4"
Tail stock spindle taper……………………………… #6 MT
Main motor……………………..…….... 30Hp/3/60/220/440
Weight (approx.)………………..………………... 16,750 lb.

EQUIPPED WITH:

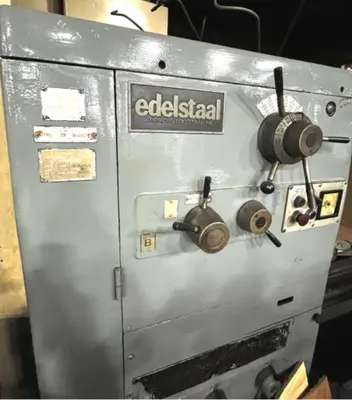

Raised head stock
In/Met threading
Hardened & ground bed ways
19.5" 3-Jaw chuck
4-Way tool post

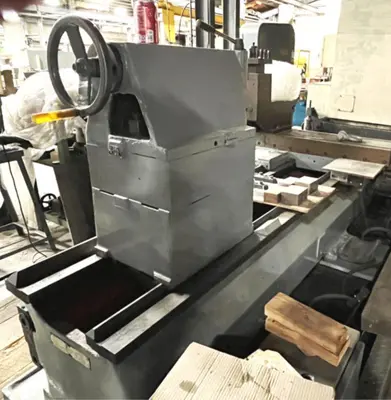

Tail stock
Taper attachment
4-Way rapid traverse
